Chapter 5 MACHINE DISASSEMBLY

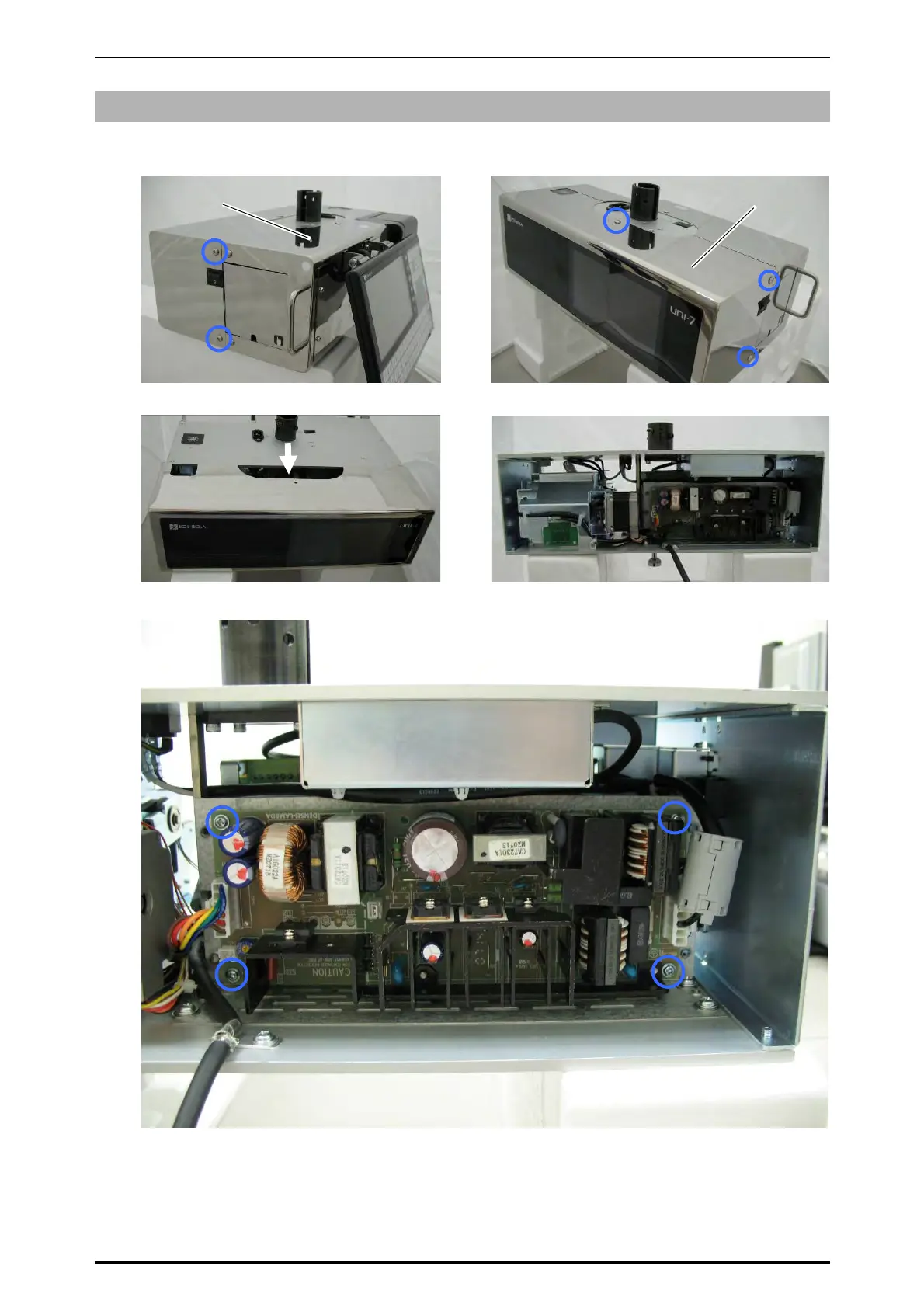

5.6.5 POWER SUPPLY UNIT
1.
Remove the five screws fixing the rear stainless-steel case.
2.
Slide to remove the rear case of the main unit.
3.
Unplug all harnesses connected with the power supply board and carefully remove the four
fixing screws so as not to drop the collars behind.
Rear case
Front case
Rear case
* Reverse this procedure for assembly.
UNI-7 Service Manual 5-35
