ISHIDA UNI-7 - Peel Sensor; Cassette Sensor

Chapter 5 MACHINE DISASSEMBLY

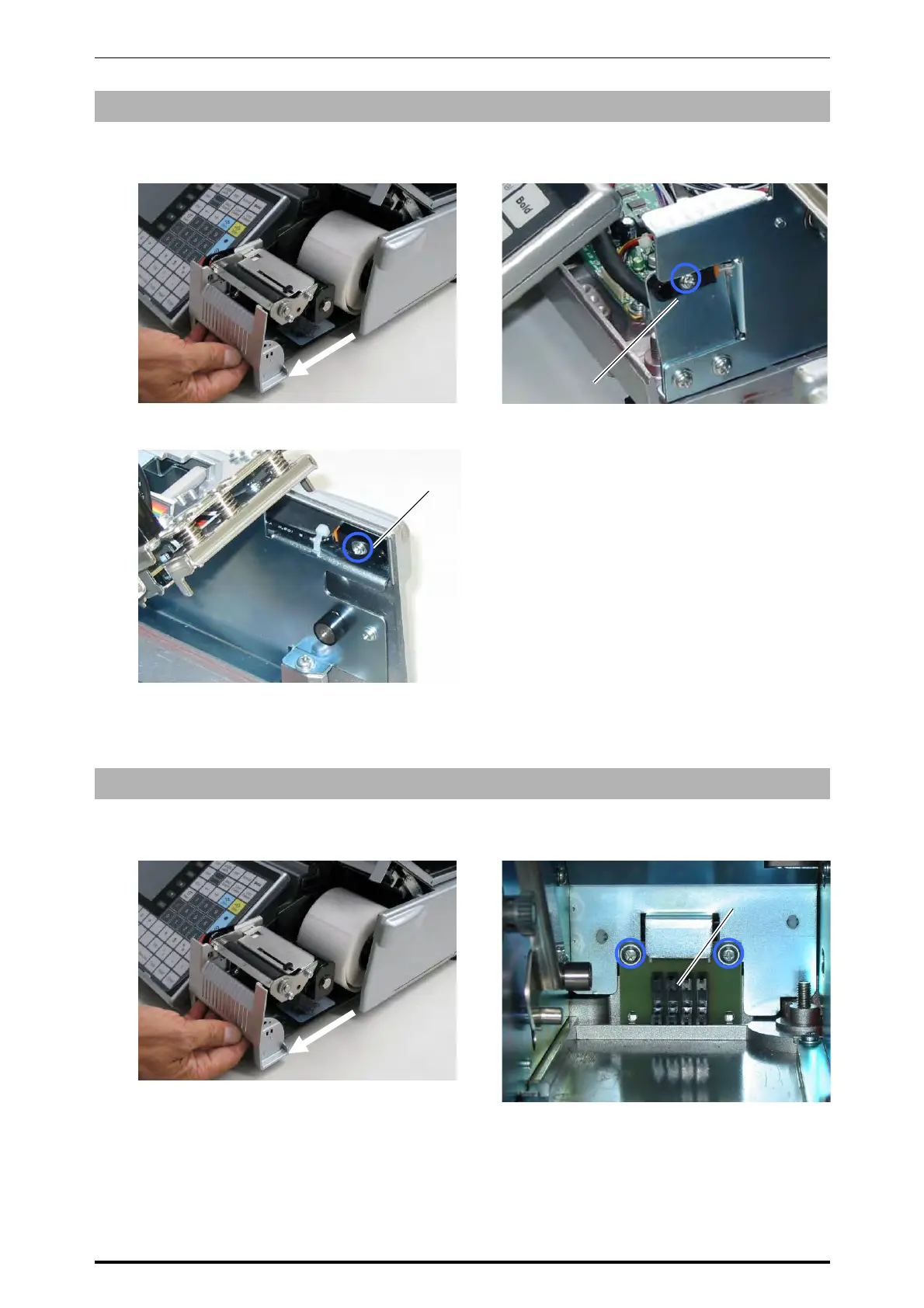

5.1.7 PEEL SENSOR
1.
Pull out the cassette unit from the main unit.
2.
Remove the screw and unplug the harness to
remove the peel sensor emitter.
3.
Remove the screw and unplug the harness
to remove the peel sensor receiver.
Peel senso
r
(Emitter)
Peel sensor
(Receiver)
* Reverse this procedure for assembly.
5.1.8 CASSETTE SENSOR
1.
Pull out the cassette unit from the main unit.
2.
Remove the two screws and unplug the
harness to remove the cassette sensor.
Cassette sensor
* Reverse this procedure for assembly.
5-8 UNI-7 Service Manual
