jcb 19C-1E User Manual

Operation
Moving a Disabled Machine

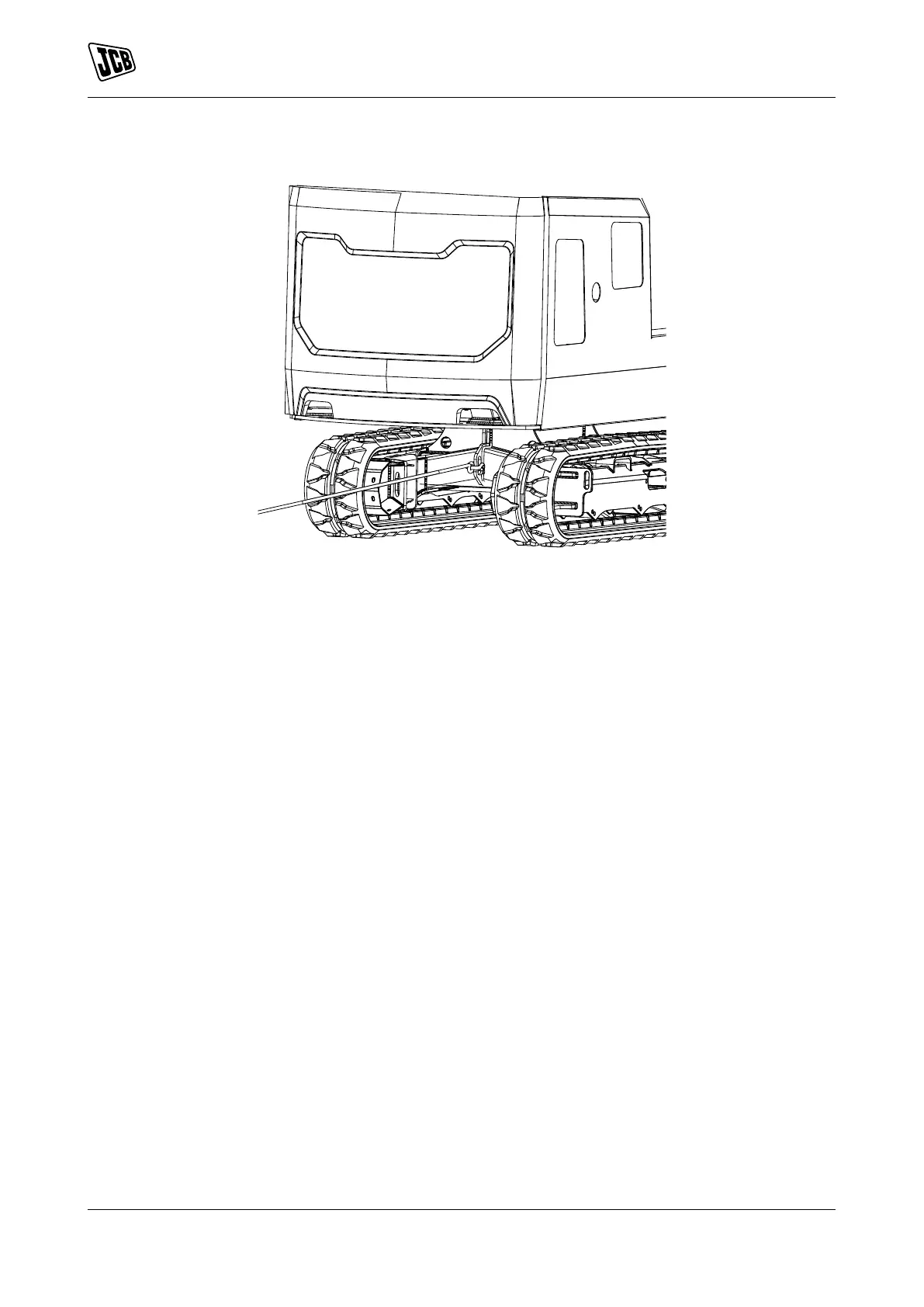

Figure 56.
Excavator End (Emergency Operation)
The excavator has an accumulator installed in the hydraulic pilot control system. The accumulator stores
a limited amount of hydraulic pressure for use in an emergency (motor failure for example). This hydraulic
pressure must be used to move the dipper and lower the boom into a safe position.
Do not try to operate other machine functions as this will deplete the hydraulic pressure in the accumulator and
it may then not be possible to move the dipper and lower the boom.
If an emergency occurs:
1. Turn the ignition key to the on position.
2. Enable the controls.
Refer to: Control Lock (Page 43).
3. Use the right and left control levers to move the dipper and lower the boom.
4. Vent the hydraulics.
Refer to: Discharge (Page 138).
5. Turn the ignition key to the off position.
71 9831/8250-4 71
JCB © Admin Pimteam - 23/06/2021 05:32.

jcb 19C-1E Specifications

General

Battery Type	Manganese laminated Lithium-ion
Battery Rated Capacity	14.8 kWh (3 Pack) 19.8 kWh (4 Pack)
Charging	On-board charger with direct connection from AC mains power supply
Charging Time	110V – 12 hrs 230V – 8 hrs
Fast Charging (Optional)	Off-board charger, with connection to 415V 3-Phase supply Charging time <2 hrs
System Voltage	48V
Motor Type	AC permanent magnet
Motor Power	7 kW continuous 20kW peak
Operating Modes	L – 1200rpm G – 1600rpm H – 1800rpm Auto Kick Up – 2300rpm, 2 speed tracking only
Thermal Limitations	Operation: -10oC to +46oC Charging: -10oC to +40oC
