jcb 19C-1E User Manual

Operation
Mirrors
Mirrors
General
Installation
Introduction
When they operate the machine, the operator must continually survey their field of vision. It is important that
the mirrors are securely installed and give maximum vision around the machine.
When a mirror is provided to supplement the operators direct field of vision, it must be adjusted to serve as
an aid to the operator in seeing people or obstacles around the machine. The mirror provides indirect vision to
hidden areas and improves the effectiveness of the machines usage.
Canopy Mirror(s)

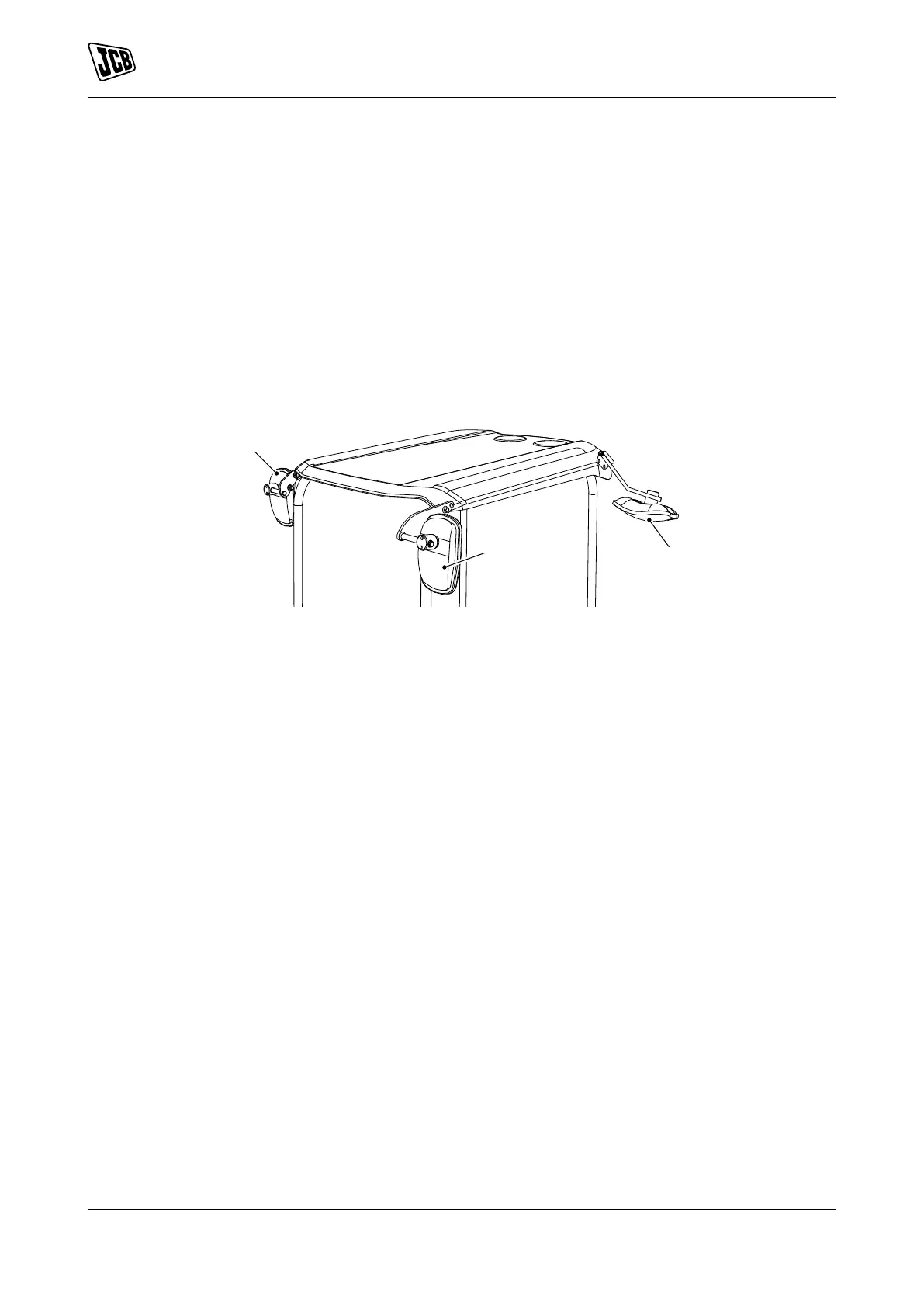

Figure 19.
A
C
B
A Right side mirror B Left side mirrors
C Wide angle rear mirror
Secure the mirrors to the canopy:
1. Secure the mirror support to the cab with the cap-screws and nuts.
2. Secure the mirror to the support.
Do not fully tighten the fittings until the mirrors are adjusted correctly.
Adjusting the Mirrors
1. Adjust the seat to suit the operator.
2. Adjust the mirror(s) to suit your specific working requirements before you drive or operate the machine.
3. Check the field of vision.
Checking the Field of Vision
Canopy Mirror(s)
1. Adjust the seat to suit the operator.
2. Adjust the mirrors.
Adjust the mirrors to get the field of vision, so that the operator can see the area obscured by the cab rear pillars.
36 9831/8250-4 36
JCB © Admin Pimteam - 23/06/2021 05:32.

jcb 19C-1E Specifications

General

Battery Type	Manganese laminated Lithium-ion
Battery Rated Capacity	14.8 kWh (3 Pack) 19.8 kWh (4 Pack)
Charging	On-board charger with direct connection from AC mains power supply
Charging Time	110V – 12 hrs 230V – 8 hrs
Fast Charging (Optional)	Off-board charger, with connection to 415V 3-Phase supply Charging time <2 hrs
System Voltage	48V
Motor Type	AC permanent magnet
Motor Power	7 kW continuous 20kW peak
Operating Modes	L – 1200rpm G – 1600rpm H – 1800rpm Auto Kick Up – 2300rpm, 2 speed tracking only
Thermal Limitations	Operation: -10oC to +46oC Charging: -10oC to +40oC
