jcb 19C-1E User Manual

Operation
Entering and Leaving the Operator Station
Entering and Leaving the Operator Station
General
WARNING For safety reasons, machines installed with single access canopies from new must not have the
barrier removed. The machine must always be entered/exited with the left hand console raised.
WARNING Do not enter or exit the cab unless the left console lever is in the fully raised position.
CAUTION Entering or leaving the operator station must only be made where steps and handrails are
provided. Always face the machine when entering and leaving. Make sure the steps, handrails and your
boot soles are clean and dry. Do not jump from the machine. Do not use the machine controls as handholds,
only use the handrails.
Entering the Canopy
1. Check that the left control console is raised. When the left control console is in the raised position the
excavator and track controls cannot be operated ( dozer control is still active).

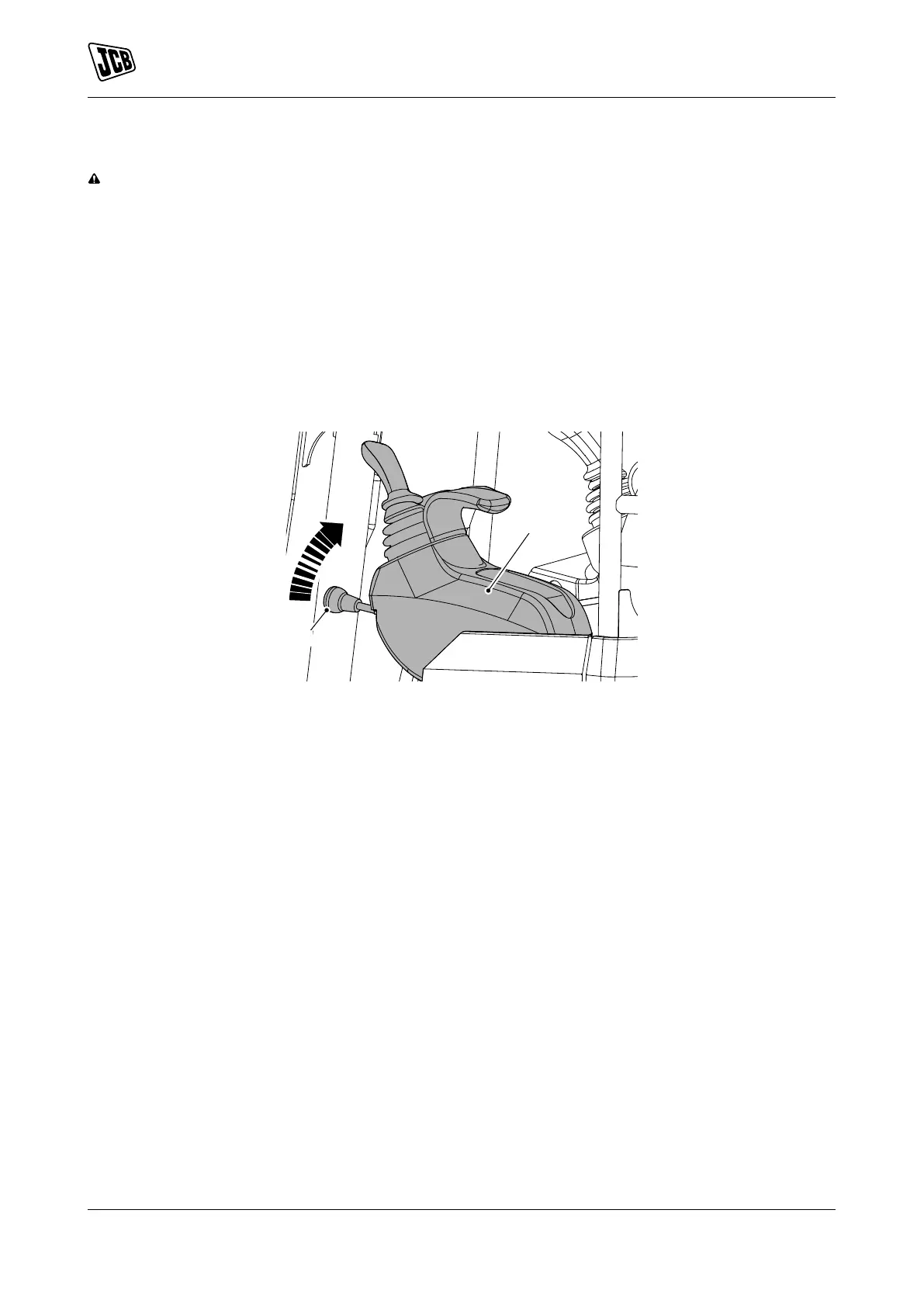

Figure 12.
B
A
A Handle B Left control console
2. Hold the two handrails, use the track to climb to the cab step. Refer to Figure 13.
28 9831/8250-4 28
JCB © Admin Pimteam - 23/06/2021 05:32.

jcb 19C-1E Specifications

General

Battery Type	Manganese laminated Lithium-ion
Battery Rated Capacity	14.8 kWh (3 Pack) 19.8 kWh (4 Pack)
Charging	On-board charger with direct connection from AC mains power supply
Charging Time	110V – 12 hrs 230V – 8 hrs
Fast Charging (Optional)	Off-board charger, with connection to 415V 3-Phase supply Charging time <2 hrs
System Voltage	48V
Motor Type	AC permanent magnet
Motor Power	7 kW continuous 20kW peak
Operating Modes	L – 1200rpm G – 1600rpm H – 1800rpm Auto Kick Up – 2300rpm, 2 speed tracking only
Thermal Limitations	Operation: -10oC to +46oC Charging: -10oC to +40oC
