Main Component Locations

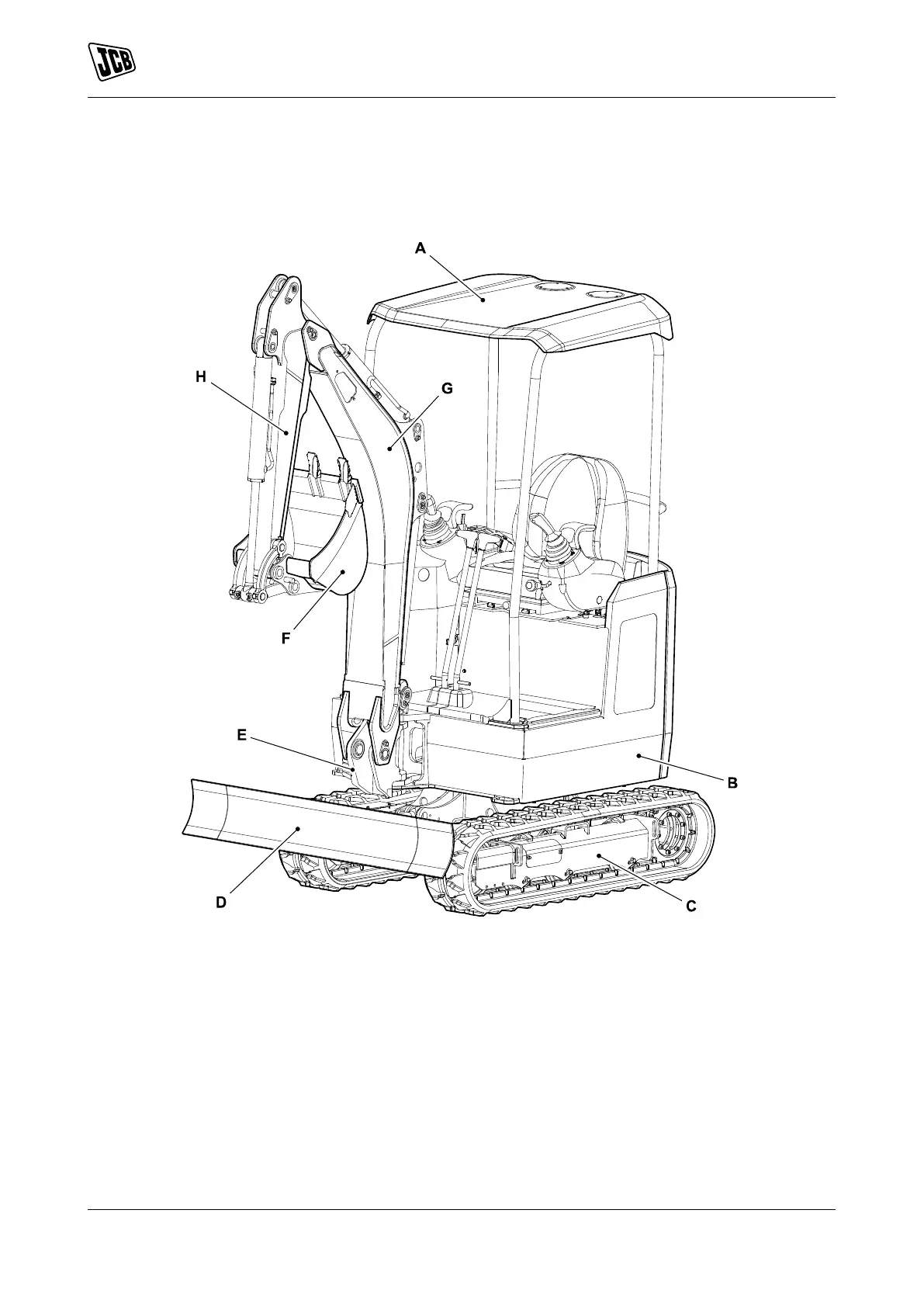

Figure 4.
A Canopy (contains the operator station) B Upper structure
C Undercarriage D Dozer blade
E Kingpost F Bucket
G Boom (part of the excavator arm) H Dipper (part of the excavator arm)
7 9831/8250-4 7
