Maintenance
Access Apertures
Access Apertures
General
When moved to their maintenance position, the access panels give you access to parts or areas of the machine
that are not required during machine operation.
Before you operate the machine, make sure that all of the access panels are correctly in their closed or installed
positions.
Battery Cover
Open
WARNING Airborne particles of light combustible material such as straw, grass, wood shavings, etc. must
not be allowed to accumulate within the battery compartment. Examine these areas frequently and clean
at the beginning of each work shift or more often if required. Before opening the battery cover, make sure
that the top is clear of debris.
1. Make the machine safe with the excavator arm lowered.
2. Use the ignition key to unlock the cover.
3. To release the latch, pull the handle.

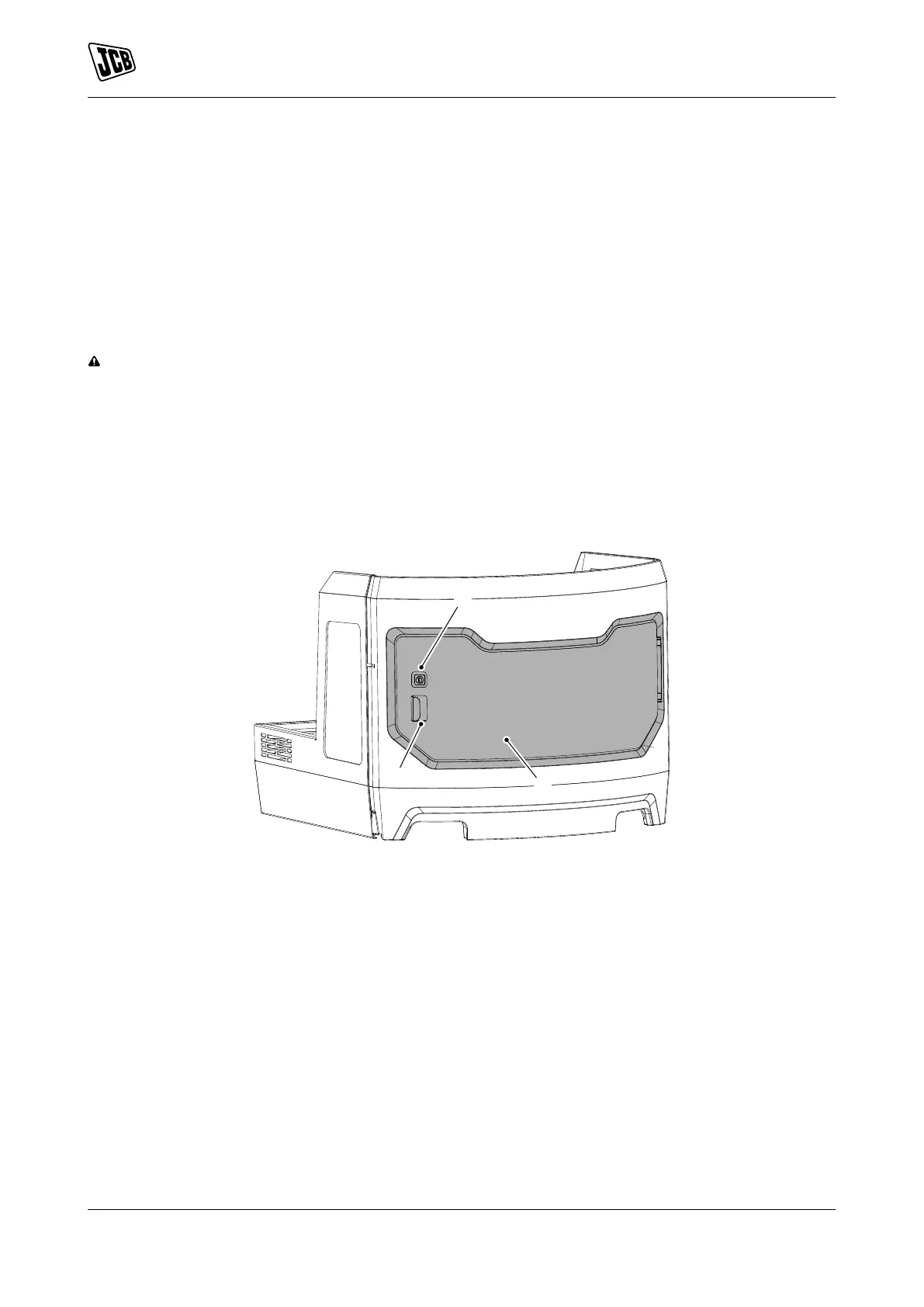

Figure 94.
B
C
A
A Lock B Battery compartment cover
C Handle
119 9831/8250-4 119
JCB © Admin Pimteam - 23/06/2021 05:32.

jcb 19C-1E Specifications

General

Battery Type	Manganese laminated Lithium-ion
Battery Rated Capacity	14.8 kWh (3 Pack) 19.8 kWh (4 Pack)
Charging	On-board charger with direct connection from AC mains power supply
Charging Time	110V – 12 hrs 230V – 8 hrs
Fast Charging (Optional)	Off-board charger, with connection to 415V 3-Phase supply Charging time <2 hrs
System Voltage	48V
Motor Type	AC permanent magnet
Motor Power	7 kW continuous 20kW peak
Operating Modes	L – 1200rpm G – 1600rpm H – 1800rpm Auto Kick Up – 2300rpm, 2 speed tracking only
Thermal Limitations	Operation: -10oC to +46oC Charging: -10oC to +40oC
