jcb 19C-1E User Manual

Maintenance
Body and Framework

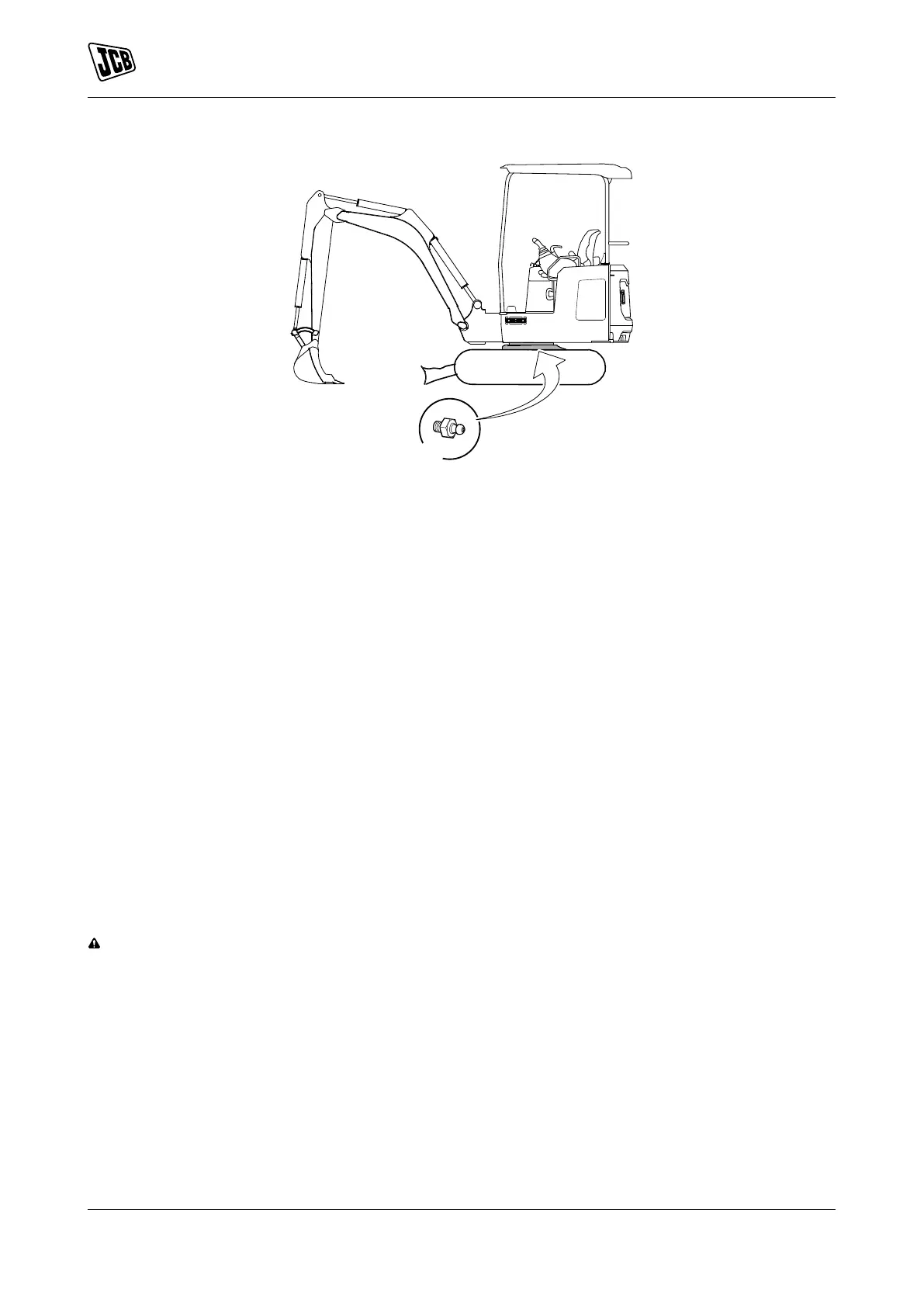

Figure 101.
A
A Grease point
1. Make the machine safe with the excavator arm lowered.
Refer to: Maintenance Position (Excavator End Lowered) (Page 116).
2. Get safe access to the grease point.
3. To make sure that the grease is fully distributed:
3.1. Grease in, use four strokes of the grease gun, then turn the upper structure.
Angle: 90°
3.2. Grease in, use four strokes of the grease gun, then turn the upper structure.
Angle: 90°
3.3. Grease in, use four strokes of the grease gun, then turn the upper structure.
Angle: 90°
3.4. Grease in, use four strokes of the grease gun, then turn the upper structure.
Angle: 90°
3.5. Grease in, use four strokes of the grease gun.
Pivot Pins
Lubricate
WARNING You will be working close into the machine for these jobs. Lower the attachments. Remove
ignition key and turn the battery isolator to the off position. This will prevent the motor being started.
Make the machine safe with the excavator arm lowered.
Grease the pivot pins according to the illustration. Refer to Figure 102. and Refer to Figure 103.
130 9831/8250-4 130
JCB © Admin Pimteam - 23/06/2021 05:32.

jcb 19C-1E Specifications

General

Battery Type	Manganese laminated Lithium-ion
Battery Rated Capacity	14.8 kWh (3 Pack) 19.8 kWh (4 Pack)
Charging	On-board charger with direct connection from AC mains power supply
Charging Time	110V – 12 hrs 230V – 8 hrs
Fast Charging (Optional)	Off-board charger, with connection to 415V 3-Phase supply Charging time <2 hrs
System Voltage	48V
Motor Type	AC permanent magnet
Motor Power	7 kW continuous 20kW peak
Operating Modes	L – 1200rpm G – 1600rpm H – 1800rpm Auto Kick Up – 2300rpm, 2 speed tracking only
Thermal Limitations	Operation: -10oC to +46oC Charging: -10oC to +40oC
