jcb 19C-1E User Manual

Technical Data
Static Dimensions
Technical Data
Static Dimensions

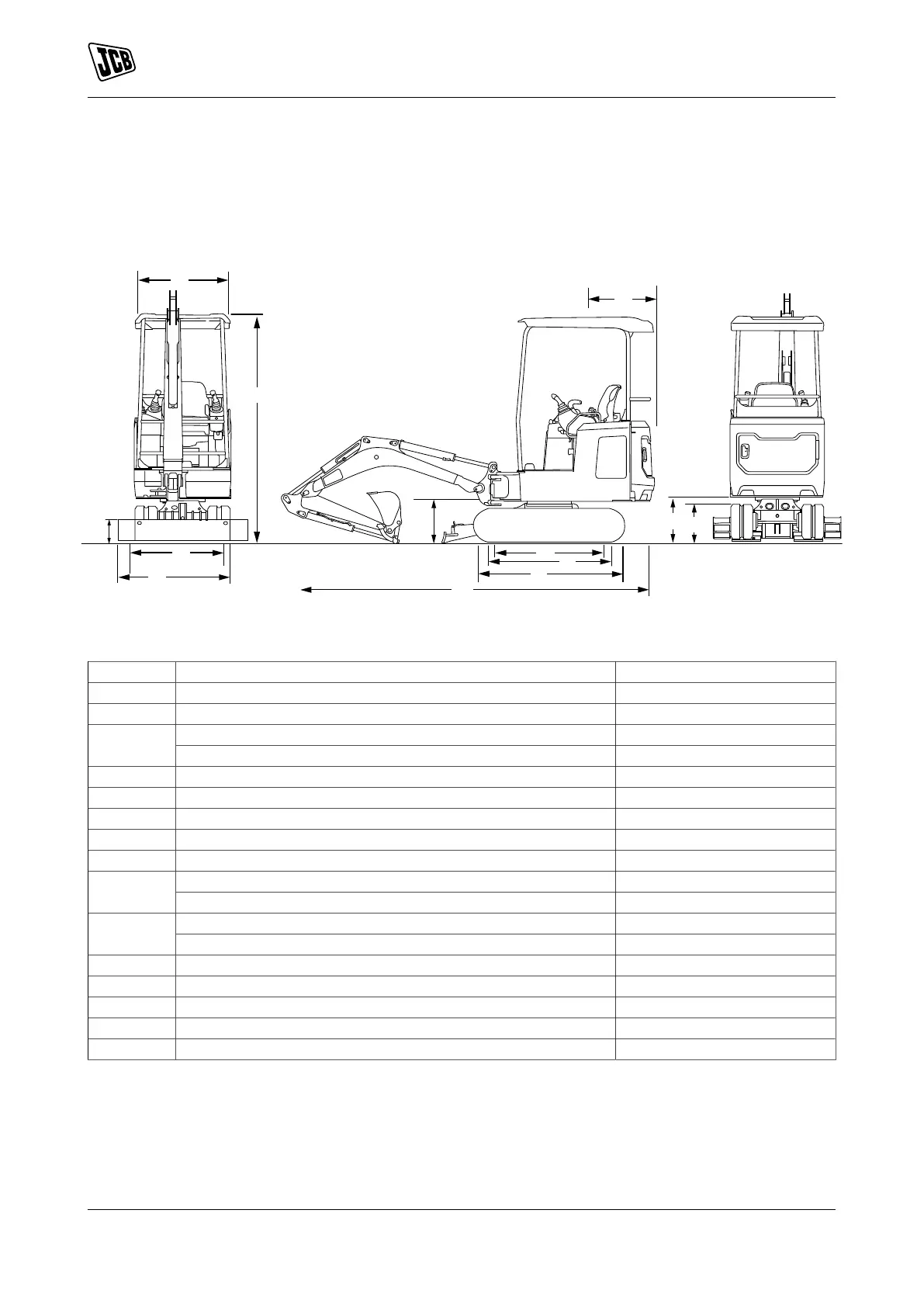

Dimensions
Figure 115.
N
M
L
C
A
K
J
G
H
F
E
D
B
Table 14.
Item Description Dimensions
A Sprocket idler centres - rubber 1,218mm
B Track length on ground 1,220mm
Undercarriage overall length - rubber 1,578mmC
Undercarriage overall length - steel 1,578mm
D Kingpost clearance 409mm
E Tailswing radius 1,103mm
F Overall width of superstructure 996mm
G Height over canopy 2,324mm
H Ground clearance 162mm
Track gauge- Retracted 750mmJ
Track gauge- Extended 1,110mm
Width over tracks/Rubber/Steel- Retracted 980mmK
Width over tracks/ steel- Extended 1,330mm
L Transport length - 950mm dipper 3,860mm
L Transport length - 1,100mm dipper 3,862mm
L Transport length - 1,344mm dipper 3,815mm
M Track height 367mm
N Counterweight clearance 434mm
Weights
Operating weight to ISO 6016 including cab/canopy, rubber tracks, standard dipper, 300mm bucket, full tanks
and 75kg operator.
Shipping weight to ISO 6016 is the mass of the base machine without an operator.
149 9831/8250-4 149
JCB © Admin Pimteam - 23/06/2021 05:32.

jcb 19C-1E Specifications

General

Battery Type	Manganese laminated Lithium-ion
Battery Rated Capacity	14.8 kWh (3 Pack) 19.8 kWh (4 Pack)
Charging	On-board charger with direct connection from AC mains power supply
Charging Time	110V – 12 hrs 230V – 8 hrs
Fast Charging (Optional)	Off-board charger, with connection to 415V 3-Phase supply Charging time <2 hrs
System Voltage	48V
Motor Type	AC permanent magnet
Motor Power	7 kW continuous 20kW peak
Operating Modes	L – 1200rpm G – 1600rpm H – 1800rpm Auto Kick Up – 2300rpm, 2 speed tracking only
Thermal Limitations	Operation: -10oC to +46oC Charging: -10oC to +40oC
