Maintenance
Maintenance Positions
Maintenance Positions
General
WARNING A machine can sink into soft ground. Never work under a machine on soft ground.
WARNING Make the machine safe before getting beneath it. Make sure that any attachments on the
machine are correctly attached. Remove the ignition key and turn the battery isolator to the off position.
Make the machine safe before you start a maintenance procedure.
Unless a maintenance procedure instructs you differently, you must lower the excavator arm. Refer to:
Maintenance Positions (Page 116).
Maintenance Position (Excavator End Lowered)
1. Park the machine on solid, level ground.
1.1. Release the two track levers.
1.2. Turn the hand throttle control to the idle position.
2. Lower the dozer. Refer to Figure 91.
3. Lower the excavator so the attachment is flat on the ground. Refer to Figure 91.

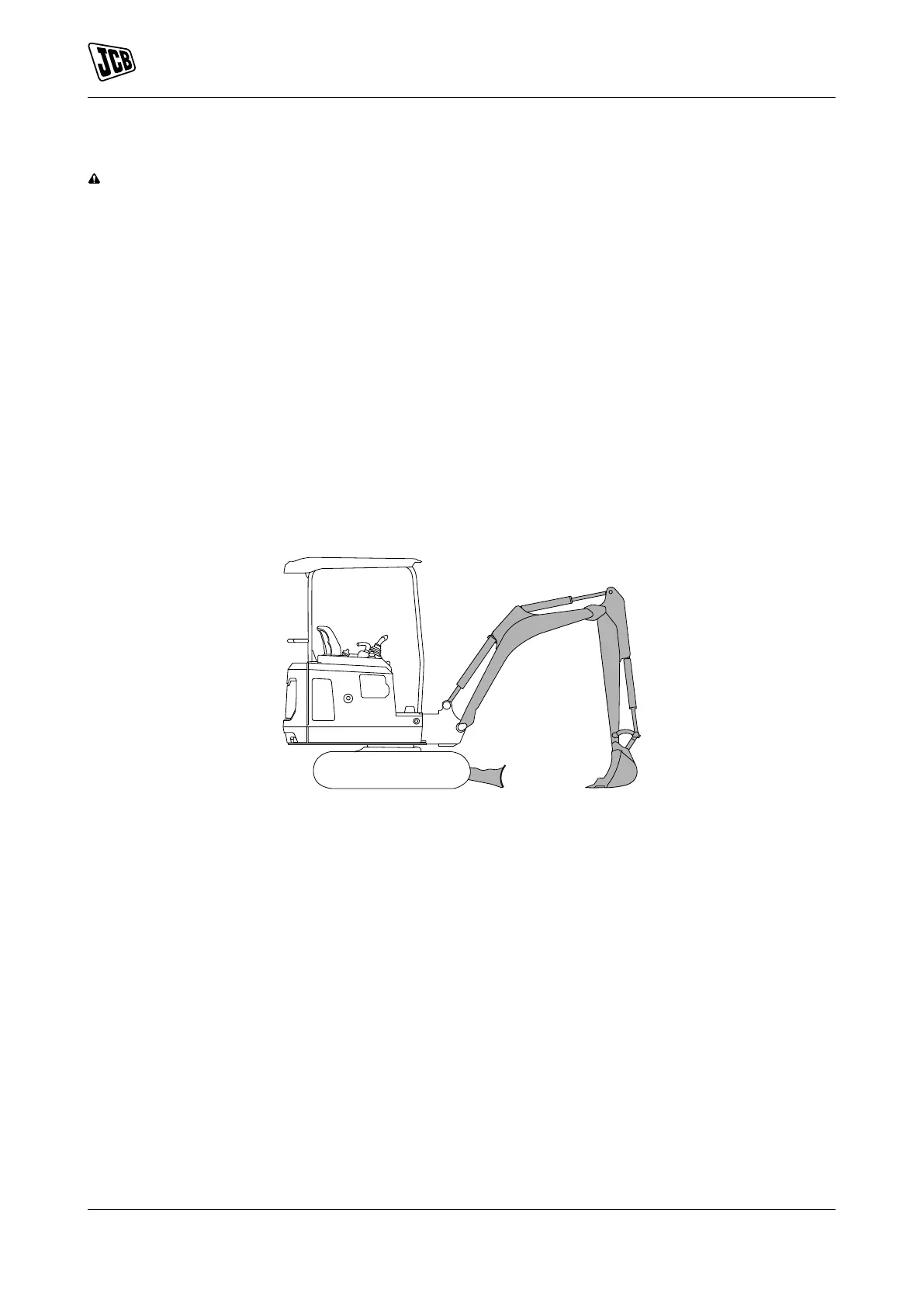

Figure 91.
4. Discharge the hydraulic pressure.
Refer to: Discharge (Page 138).
5. Isolate the controls.
Refer to: Control Lock (Page 43).
6. Disconnect the battery to prevent accidental operation of the machine.
116 9831/8250-4 116
JCB © Admin Pimteam - 23/06/2021 05:32.

jcb 19C-1E Specifications

General

Battery Type	Manganese laminated Lithium-ion
Battery Rated Capacity	14.8 kWh (3 Pack) 19.8 kWh (4 Pack)
Charging	On-board charger with direct connection from AC mains power supply
Charging Time	110V – 12 hrs 230V – 8 hrs
Fast Charging (Optional)	Off-board charger, with connection to 415V 3-Phase supply Charging time <2 hrs
System Voltage	48V
Motor Type	AC permanent magnet
Motor Power	7 kW continuous 20kW peak
Operating Modes	L – 1200rpm G – 1600rpm H – 1800rpm Auto Kick Up – 2300rpm, 2 speed tracking only
Thermal Limitations	Operation: -10oC to +46oC Charging: -10oC to +40oC
