jcb 19C-1E User Manual

Technical Data
Electrical System

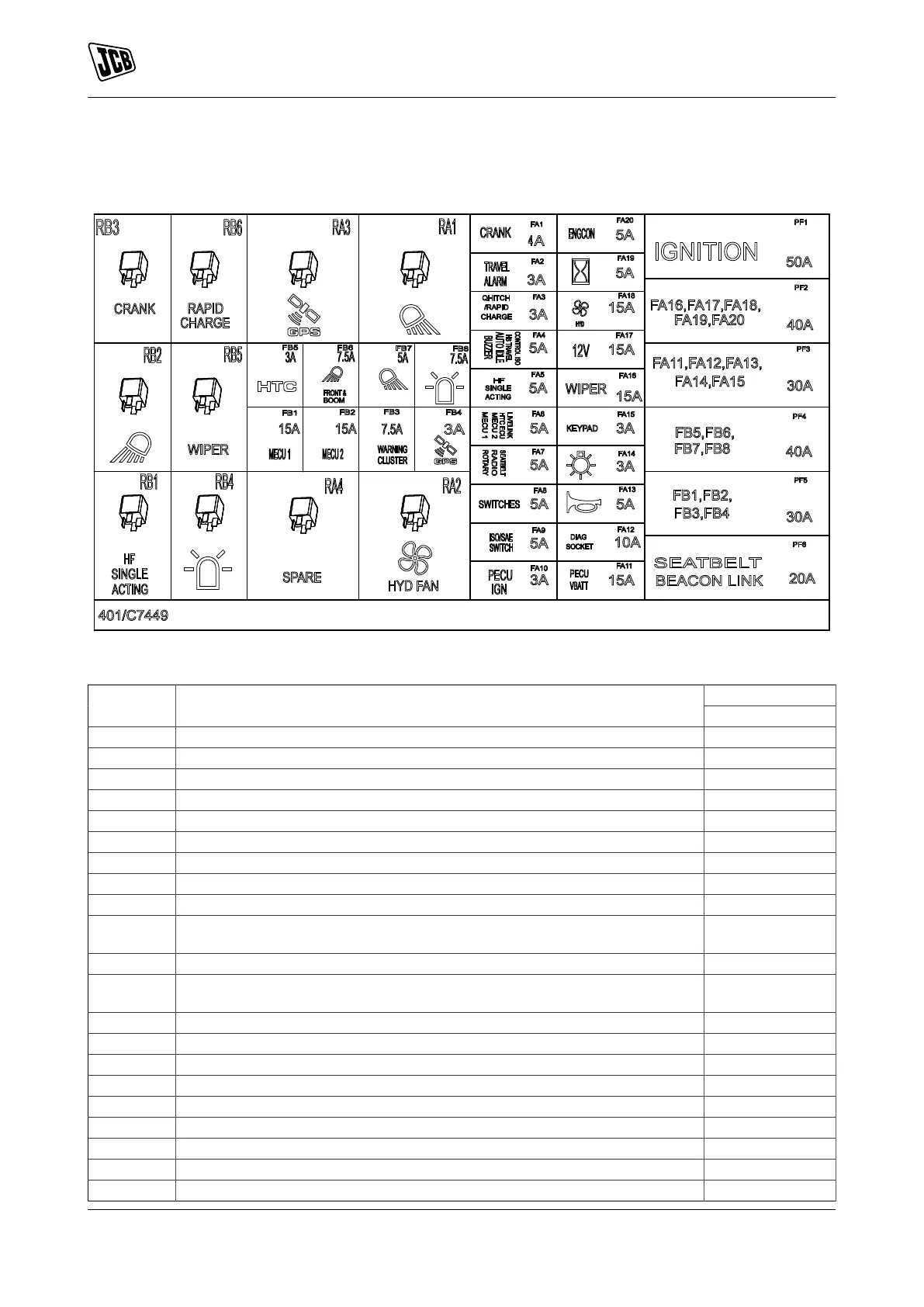

Fuses
Figure 120.
Table 24.
RatingFuse Circuit
A
PF1 Ignition feed 50
PF2 FA16, FA17, FA18, FA19, FA20 40
PF3 FA11, FA12, FA13, FA14, FA15 30
PF4 FB5, FB6, FB7, FB8 40
PF5 FB1, FB2, FB3, FB4 30
PF6 Seatbelt beacon link 20
FA1 Crank 4
FA2 Travel alarm 3
FA3 Quickhitch/rapid charge 3
FA4 Control ISO (International Organization for Standardization), High speed
travel, Auto idle, Buzzer
5
FA5 High flow single acting 5
FA6 Livelink, HTC (Hydraulic Tool Carrier) ECU (Electronic Control Unit), MECU
(Machine Electronic Control Unit) 2, MECU 1
5
FA7 Seatbelt, Radio, Rotary 5
FA8 Switches 5
FA9 SAE (Society of Automotive Engineers)/ ISO switch 5
FA10 PECU Ignition 3
FA11 PECU Battery 15
FA12 DIAG Socket 10
FA13 Horn 5
FA14 Interior light 3
FA15 Keypad 3
159 9831/8250-4 159
JCB © Admin Pimteam - 23/06/2021 05:32.

jcb 19C-1E Specifications

General

Battery Type	Manganese laminated Lithium-ion
Battery Rated Capacity	14.8 kWh (3 Pack) 19.8 kWh (4 Pack)
Charging	On-board charger with direct connection from AC mains power supply
Charging Time	110V – 12 hrs 230V – 8 hrs
Fast Charging (Optional)	Off-board charger, with connection to 415V 3-Phase supply Charging time <2 hrs
System Voltage	48V
Motor Type	AC permanent magnet
Motor Power	7 kW continuous 20kW peak
Operating Modes	L – 1200rpm G – 1600rpm H – 1800rpm Auto Kick Up – 2300rpm, 2 speed tracking only
Thermal Limitations	Operation: -10oC to +46oC Charging: -10oC to +40oC
