jcb 19C-1E User Manual

Operation
Working with the Dozer Blade
Working with the Dozer Blade
General
When you work with the dozer blade, remember that you will be driving the machine. Keep alert for bystanders,
animals and possible hazards.
When possible, do not slew the machine to do a dozer blade task. If you must slew the machine to do a dozer
blade task, use a smooth slew action and make sure there are no obstacles.
When the machine is slewed to do a dozer blade task, it will create large side loads on the dig end and this
will cause twisting and bending.

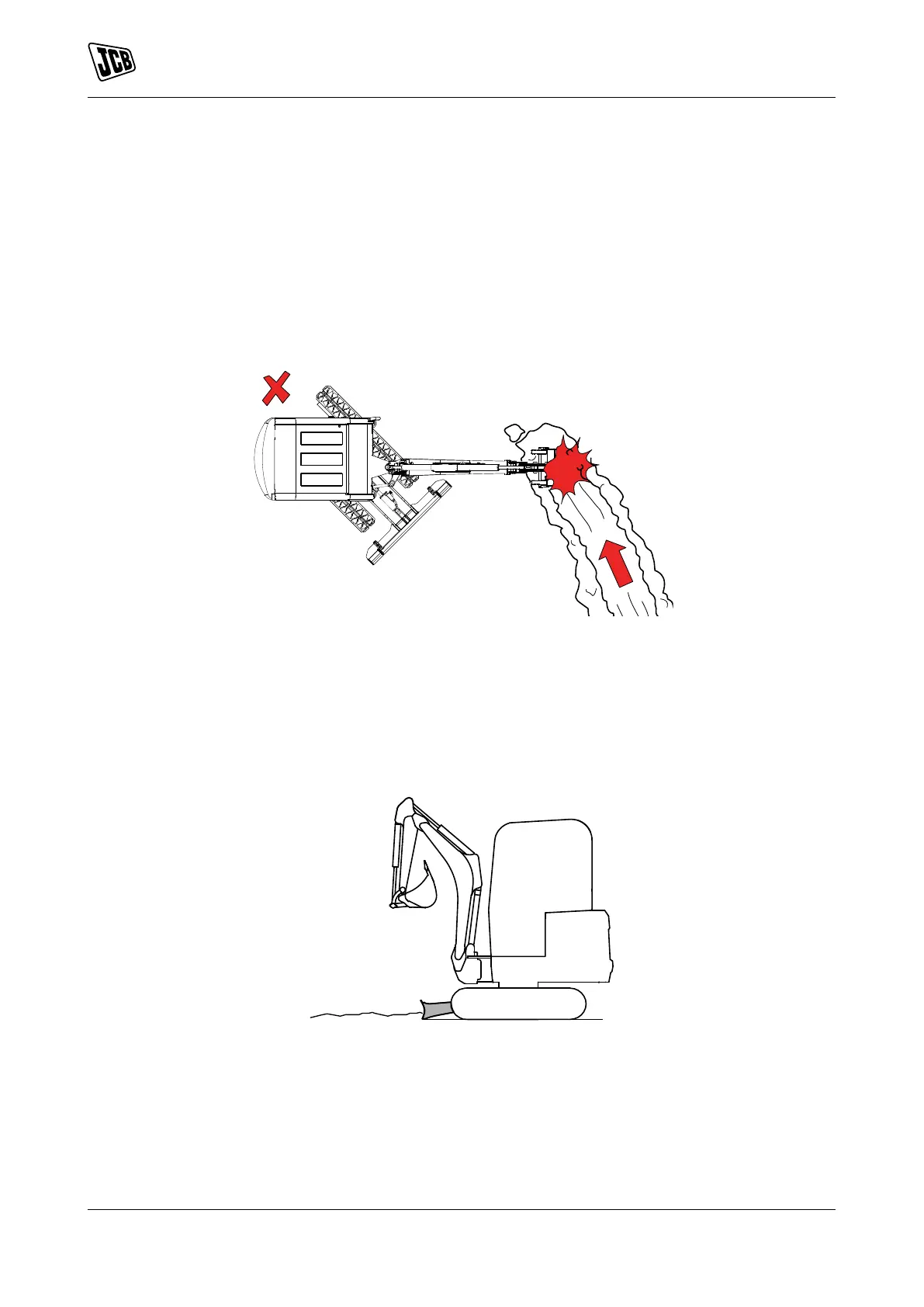

Figure 51.
Dozing and Grading
Keep the bottom of the dozer parallel to the ground. When grading a site remove high spots first, then use this
soil to fill in troughs. Do not use excessive downward pressure on the dozer or machine traction could be lost.
When working with the dozer, set the excavator straight with the machine, as for road travel. Keep the dozer
high during travel as this increases the machines ground clearance.
Figure 52.
Scraping and Cutting
If a deep cut is to be made, do it in steps of about 50mm.
Do not forget to adjust the height of the dozer blade when the machines tracks enter the cut.
66 9831/8250-4 66
JCB © Admin Pimteam - 23/06/2021 05:32.

jcb 19C-1E Specifications

General

Battery Type	Manganese laminated Lithium-ion
Battery Rated Capacity	14.8 kWh (3 Pack) 19.8 kWh (4 Pack)
Charging	On-board charger with direct connection from AC mains power supply
Charging Time	110V – 12 hrs 230V – 8 hrs
Fast Charging (Optional)	Off-board charger, with connection to 415V 3-Phase supply Charging time <2 hrs
System Voltage	48V
Motor Type	AC permanent magnet
Motor Power	7 kW continuous 20kW peak
Operating Modes	L – 1200rpm G – 1600rpm H – 1800rpm Auto Kick Up – 2300rpm, 2 speed tracking only
Thermal Limitations	Operation: -10oC to +46oC Charging: -10oC to +40oC
