jcb 19C-1E User Manual

Attachments
Working with Attachments
4. Connect the male coupling into the female coupling.
5. Where applicable, rotate the sleeve half a turn and make sure that the locking ball does not align with
the slot.

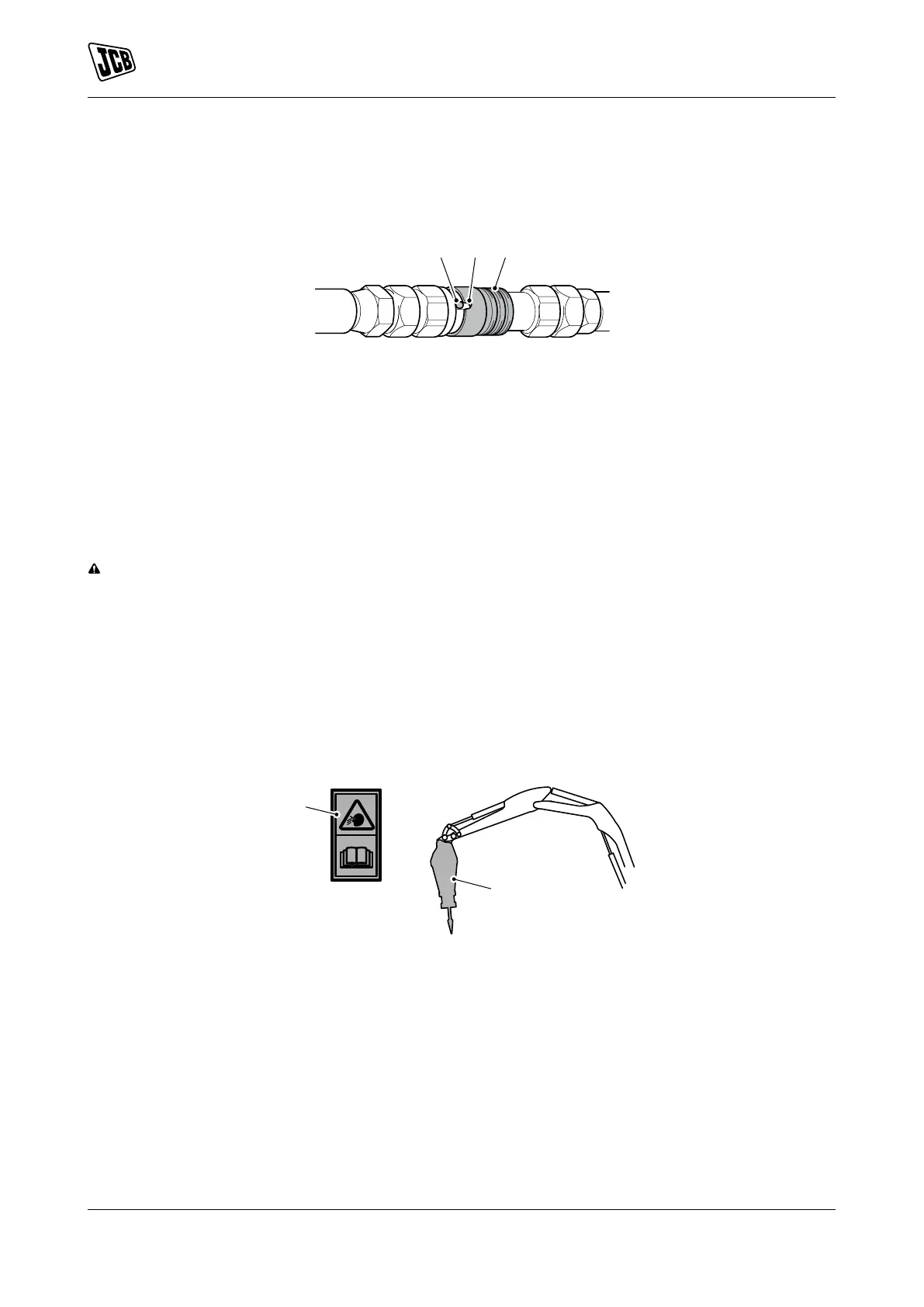

Figure 70.
C E
D
C Ball D Slot
E Sleeve
Disconnecting Quick Release Couplings
1. Remove any residual hydraulic pressure trapped in the service line hose.
2. Where applicable, align the slot with ball.
3. Pull back the sleeve to release the coupling.
Impact Protection
CAUTION When using an attachment for example a hydraulic breaker, where the risk of flying debris is
present, a protective layer or screen guard must be attached to the front of the canopy (or close the cab
front window(s)) to protect the operator from flying debris which could cause injury.
The safety label warns the operator against the risk of flying debris when they use an attachment. The
attachment must not be used if a protective layer or screen guard has not been installed on the machine.
Make sure that the attachment, for example a hydraulic breaker is positioned in front of the cab before it is
operated. Do not slew the boom to the side during operation of the attachment.
Consult your JCB dealer for further information.
Figure 71.
332/V3761-1
A
B
A Safety label B Hydraulic breaker
86 9831/8250-4 86
JCB © Admin Pimteam - 23/06/2021 05:32.

jcb 19C-1E Specifications

General

Battery Type	Manganese laminated Lithium-ion
Battery Rated Capacity	14.8 kWh (3 Pack) 19.8 kWh (4 Pack)
Charging	On-board charger with direct connection from AC mains power supply
Charging Time	110V – 12 hrs 230V – 8 hrs
Fast Charging (Optional)	Off-board charger, with connection to 415V 3-Phase supply Charging time <2 hrs
System Voltage	48V
Motor Type	AC permanent magnet
Motor Power	7 kW continuous 20kW peak
Operating Modes	L – 1200rpm G – 1600rpm H – 1800rpm Auto Kick Up – 2300rpm, 2 speed tracking only
Thermal Limitations	Operation: -10oC to +46oC Charging: -10oC to +40oC
