jcb 19C-1E User Manual

About the Product
Interior Switches
Interior Switches

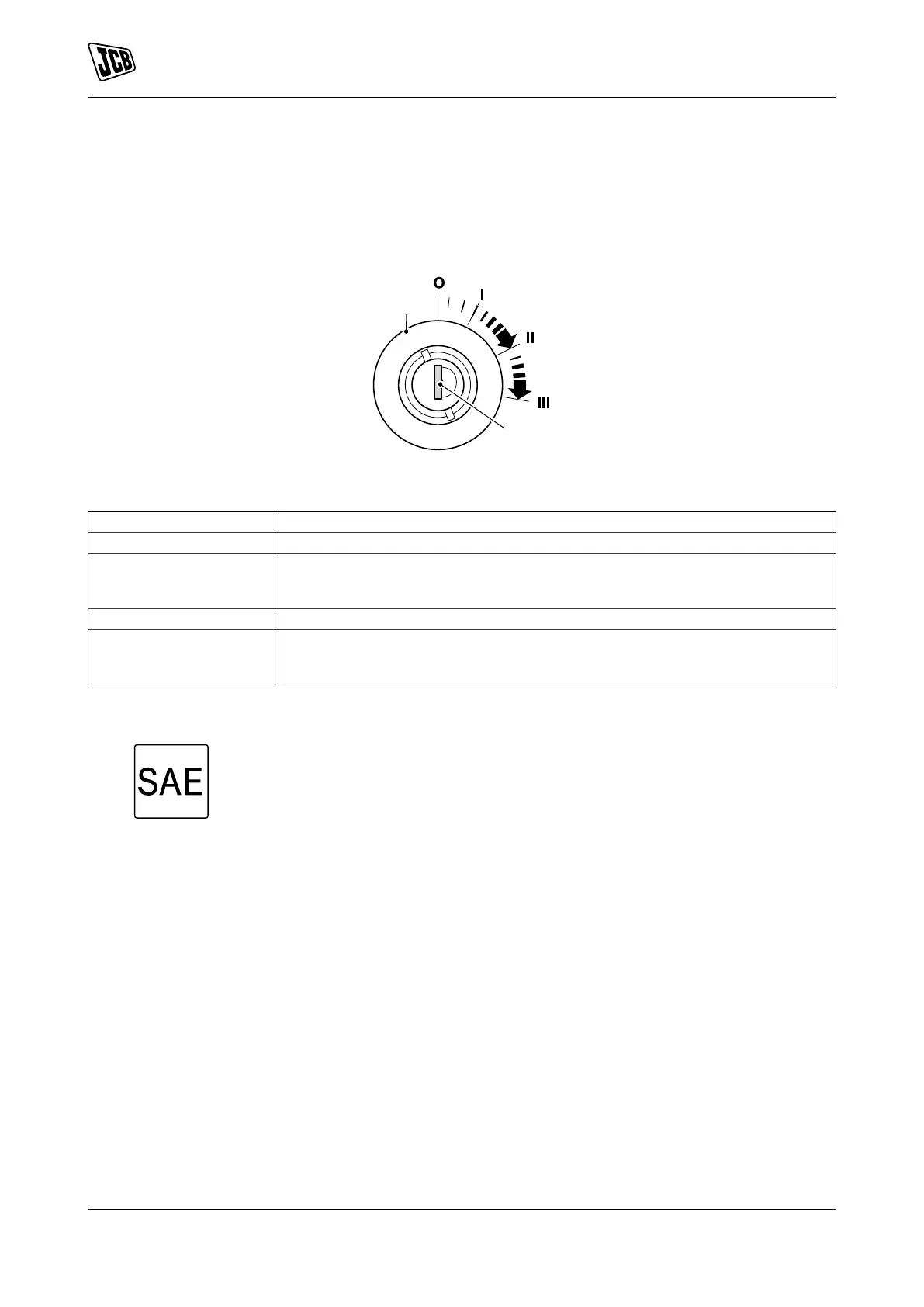

Ignition Switch
The ignition key operates the four-position ignition switch. The ignition key can only be inserted or removed
in position 0.
If the machine fails to start, the ignition key must be returned to position 0 before starting the motor again.
Figure 10.
B
A
A Ignition switch B Ignition key
Table 3. Switch Positions
Position Function
0 Motor off. The ignition key can only be removed at this position.
I Battery on: Turn the ignition key to this position to connect the battery to all of
the electrical circuits. The ignition key will return to this position when it is re-
leased from position II or position III.
II This position is not used.
III Motor start: Turn the ignition key to this position to start motor. The ignition
switch has an inhibitor to stop the ignition switch being turned on when the motor
is running.
Control Pattern Selector
Two position rocker switch. The switch functions operate when the ignition switch is
in the on and off positions.
Position : 1 = SAE control pattern selected
Position : 2 = ISO control pattern selected
Refer to: Excavator End Controls (Page 53).
17 9831/8250-4 17
JCB © Admin Pimteam - 23/06/2021 05:32.

jcb 19C-1E Specifications

General

Battery Type	Manganese laminated Lithium-ion
Battery Rated Capacity	14.8 kWh (3 Pack) 19.8 kWh (4 Pack)
Charging	On-board charger with direct connection from AC mains power supply
Charging Time	110V – 12 hrs 230V – 8 hrs
Fast Charging (Optional)	Off-board charger, with connection to 415V 3-Phase supply Charging time <2 hrs
System Voltage	48V
Motor Type	AC permanent magnet
Motor Power	7 kW continuous 20kW peak
Operating Modes	L – 1200rpm G – 1600rpm H – 1800rpm Auto Kick Up – 2300rpm, 2 speed tracking only
Thermal Limitations	Operation: -10oC to +46oC Charging: -10oC to +40oC
