Operation
Working with the Excavator End
Digging
General
WARNING Do not use pedals which are not locked in position as foot rests.
Notice: When carrying out deep digging it is advisable to have the upper structure swung in line with the
chassis. It is possible that part of the dig end may contact the machine. Take extra care when digging to
avoid damaging the machine.
Notice: Do not excavate on hard or rocky ground with the boom positioned diagonally across the
undercarriage. The resulting rocking motion could cause damage to the track gearbox sprockets and tracks.
Notice: Do not use the side of the excavation to stop the bucket when slewing back into position for the
next dig. Similarly, do not use the side of the bucket to push soil into the excavation. Both these practices
will damage the machine.
It is possible when excavating, to use either full machine slew when discharging a loaded bucket, or if conditions
dictate, swinging the excavator end only to the required dumping area.

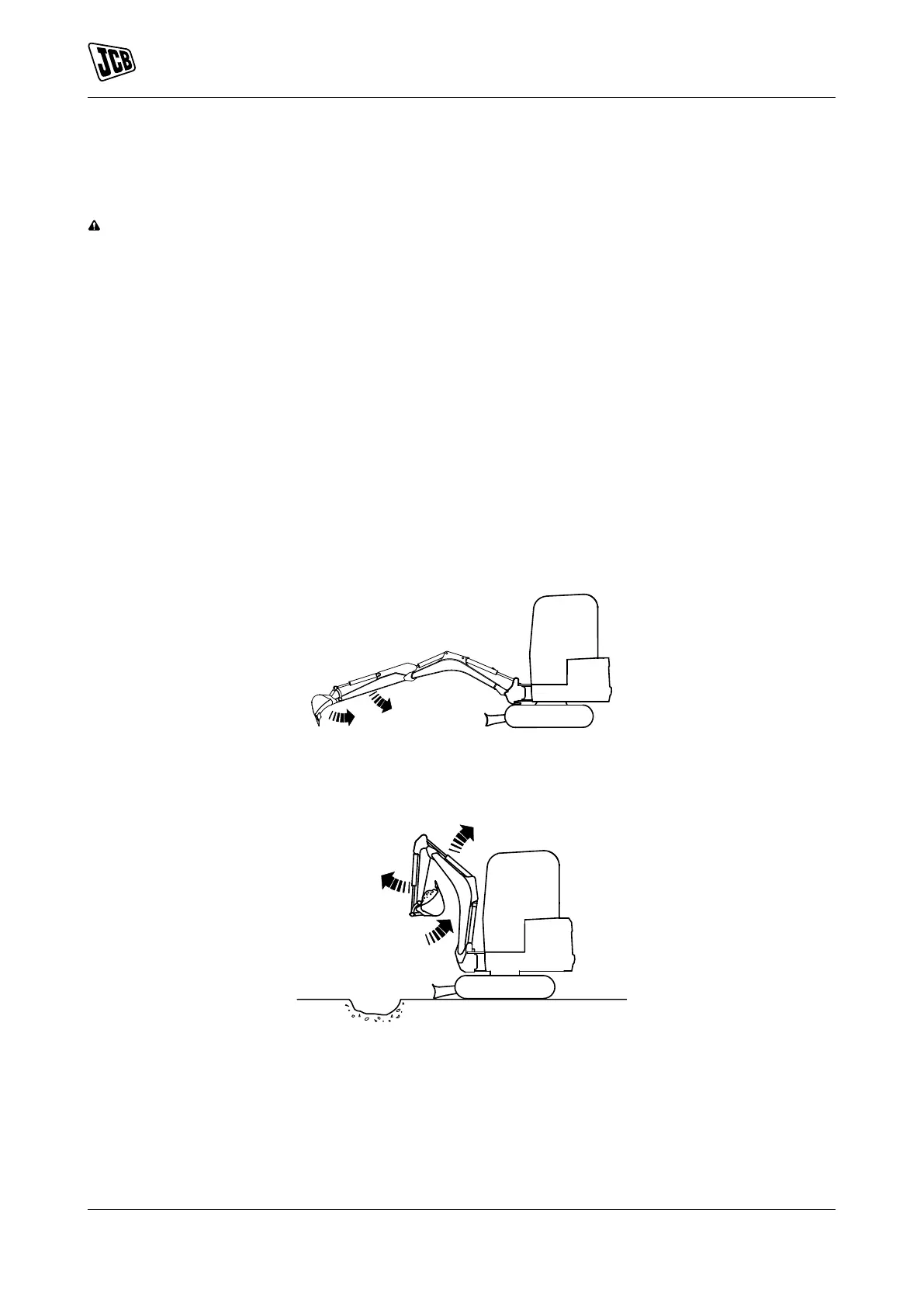

1. To start the dig, reach out with the boom and dipper and position the bucket.
2. Slowly crowd the bucket at the same time bring the dipper in. Make sure the bucket stays at the same angle
to the ground while it travels. If necessary, at the same time apply a downward pressure on the boom, to
increase the digging force on the bucket.
Figure 46.
3. When the bucket is full, crowd it fully and at the same time move the dipper out a small distance. This will
keep soil from building up under the machine.
Figure 47.
4. Slew the machine or swing the bucket to the dump area.
64 9831/8250-4 64
