Working with the Excavator End

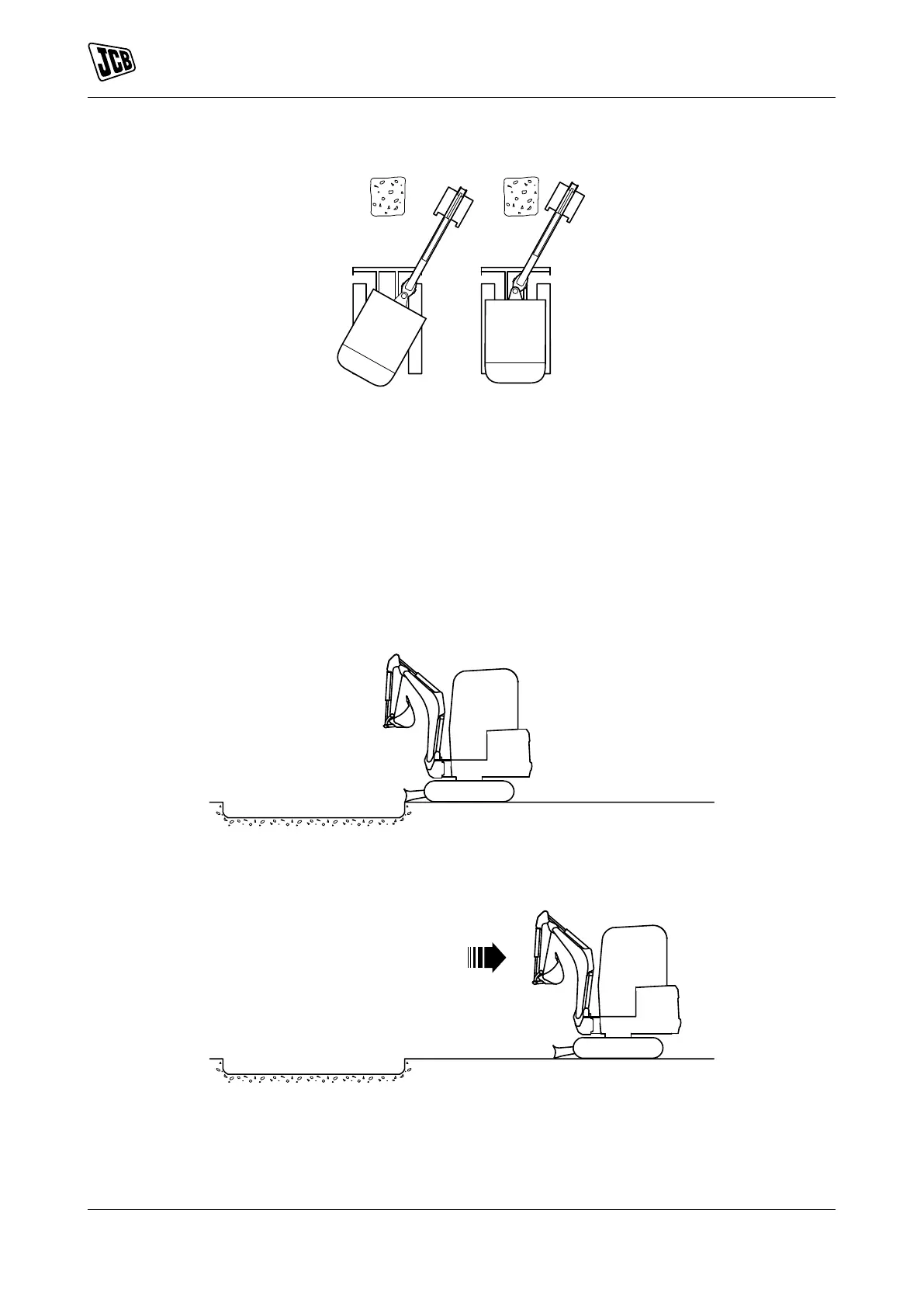

Figure 48.
5. Start dumping as the bucket approaches the pile. Do not waste time by dumping too far from the excavation.
Dump close to the start dig position.
6. Swing the bucket back to the excavation and start the next dig.
Backfill the excavation by loading the bucket with soil from the pile. Do not push the soil with the side of the
bucket.
Moving the Machine While Digging
When digging a trench or hole which is longer than the excavator's reach, dig to the required depth and width
until it is not possible to dig any closer without contacting the machine.
Figure 49.
When this position is reached, move the machine a suitable distance away from the excavation.
Figure 50.
Lower the dozer blade until the machine is level, then continue digging.
65 9831/8250-4 65
JCB © Admin Pimteam - 23/06/2021 05:32.

jcb 19C-1E Specifications

General

Battery Type	Manganese laminated Lithium-ion
Battery Rated Capacity	14.8 kWh (3 Pack) 19.8 kWh (4 Pack)
Charging	On-board charger with direct connection from AC mains power supply
Charging Time	110V – 12 hrs 230V – 8 hrs
Fast Charging (Optional)	Off-board charger, with connection to 415V 3-Phase supply Charging time <2 hrs
System Voltage	48V
Motor Type	AC permanent magnet
Motor Power	7 kW continuous 20kW peak
Operating Modes	L – 1200rpm G – 1600rpm H – 1800rpm Auto Kick Up – 2300rpm, 2 speed tracking only
Thermal Limitations	Operation: -10oC to +46oC Charging: -10oC to +40oC
