Operation
Drive Controls
Drive Controls
Track Controls
WARNING When the cab is swung around so that it is facing the track motor end of the undercarriage, the
operation of the track controls is reversed. Take extra care!
The tracks are controlled using the control levers in front of the operator seat.
The left control lever controls the left track. The right control lever controls the right track.
The two levers can be operated individually or together as necessary to move the machine as required. The
control levers are spring loaded to a central position. In this position the tracks do not operate. Refer to Figure
25.
The control levers can be operated using one hand or both.

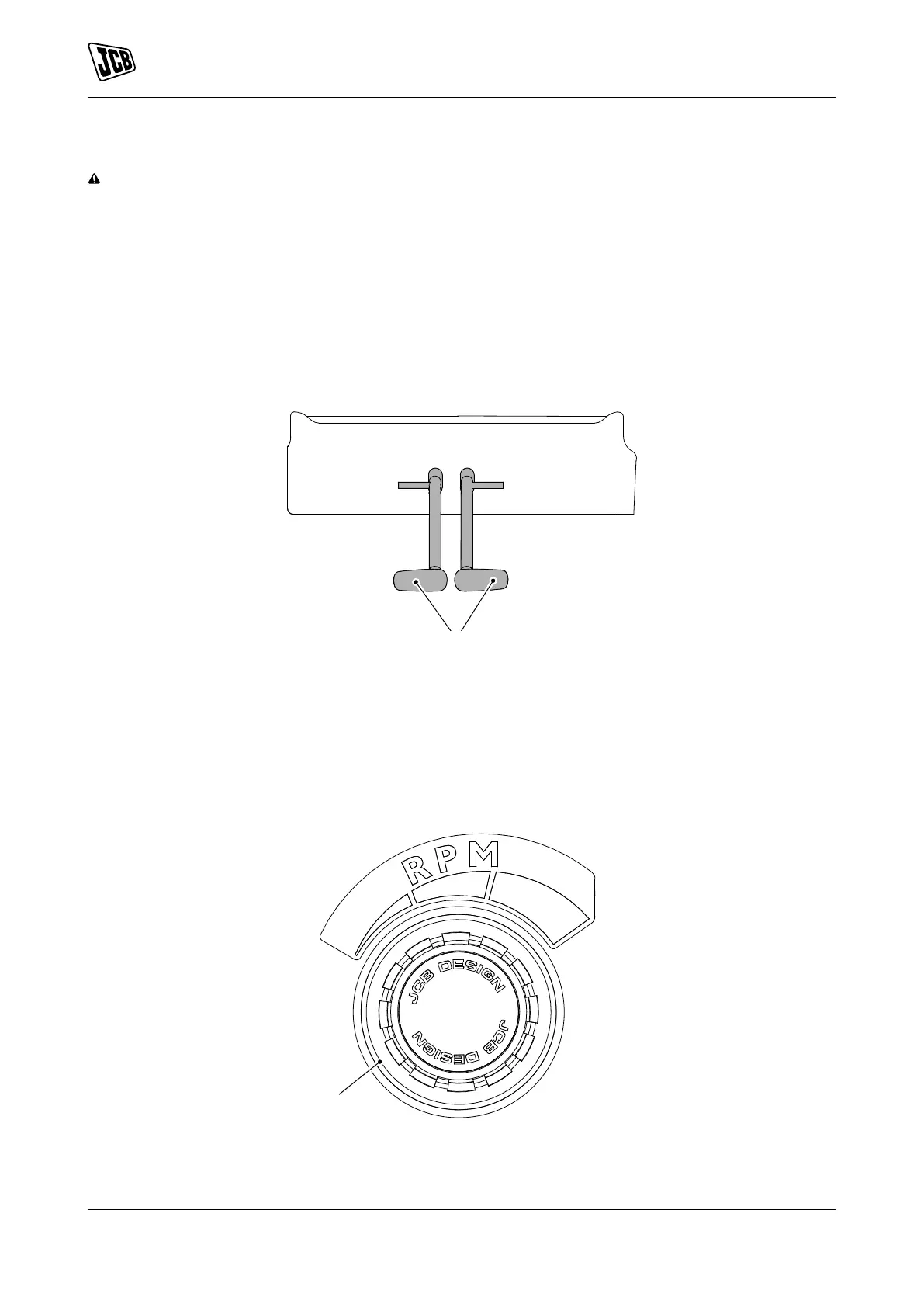

Figure 25.
A
A Track control levers
Hand Throttle Control
A hand operated rotary throttle control is located on the right console. It controls the operating speed of the
motor.
Turn the throttle control clockwise to increase the speed. Refer to Figure 26.
Figure 26.
A
B
C
A Rotary hand throttle control B Decrease the speed
C Increase the speed
Turn the throttle control counter clockwise to decrease speed. Refer to Figure 26.
45 9831/8250-4 45
JCB © Admin Pimteam - 23/06/2021 05:32.

Table of Contents

Other manuals for jcb 19C-1E

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the jcb 19C-1E and is the answer not in the manual?

jcb 19C-1E Specifications

General IconGeneral
Battery TypeManganese laminated Lithium-ion
Battery Rated Capacity14.8 kWh (3 Pack) 19.8 kWh (4 Pack)
ChargingOn-board charger with direct connection from AC mains power supply
Charging Time110V – 12 hrs 230V – 8 hrs
Fast Charging (Optional)Off-board charger, with connection to 415V 3-Phase supply Charging time <2 hrs
System Voltage48V
Motor TypeAC permanent magnet
Motor Power7 kW continuous 20kW peak
Operating ModesL – 1200rpm G – 1600rpm H – 1800rpm Auto Kick Up – 2300rpm, 2 speed tracking only
Thermal LimitationsOperation: -10oC to +46oC Charging: -10oC to +40oC
