Operation
Slopes
When traversing a slope, ensure the following travel position is adhered to:
1. Position the cab facing forward over the dozer.
2. Raise the dozer blade.
3. Lower the boom so that the bucket or attachment is clear of the ground as specified distance and dipper
is placed at specified angle to the ground.
Length/Dimension/Distance: 150mm
Angle: 90°

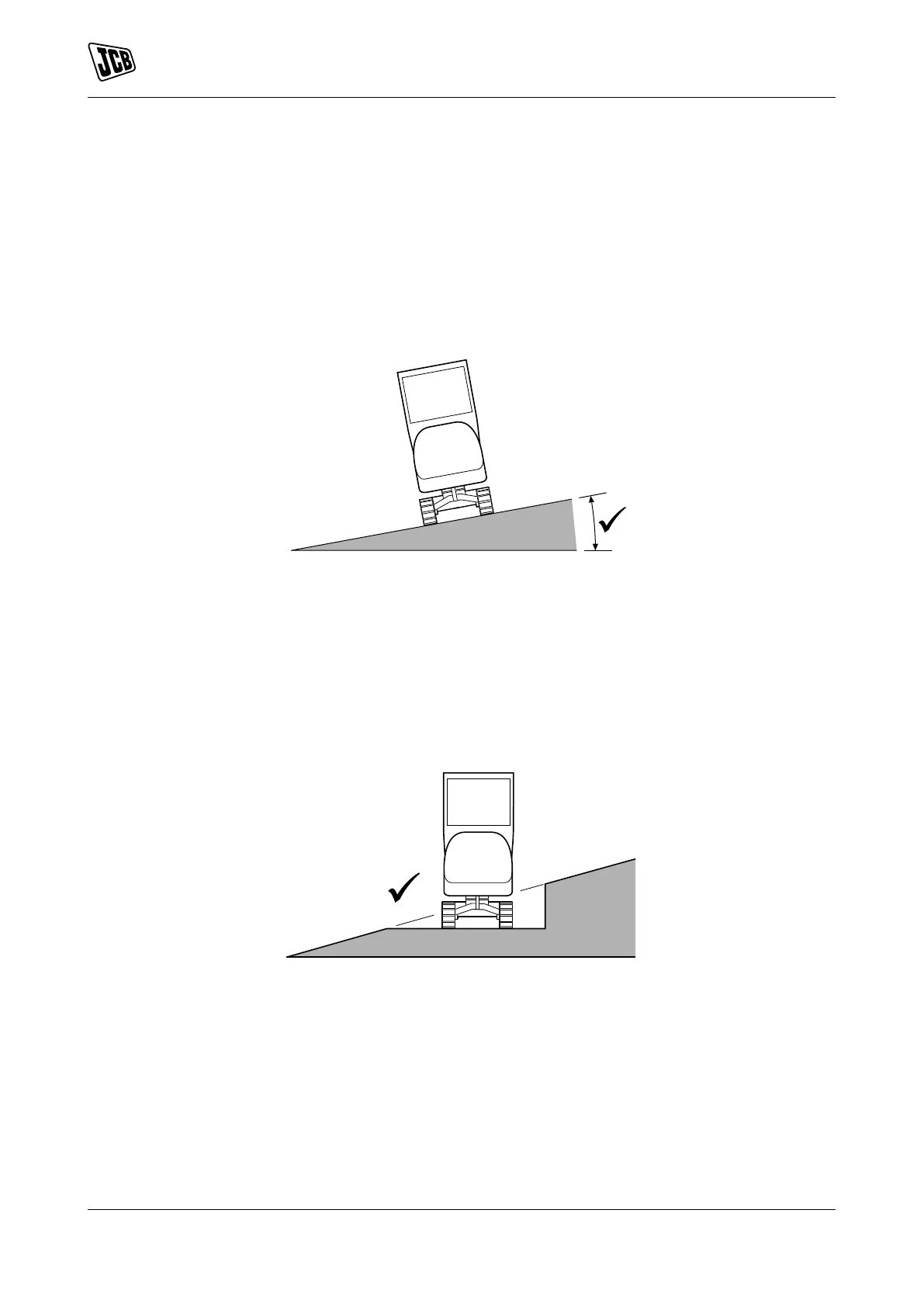

Figure 30.
0°
10°
Working on Slopes
When working on inclines, position the dozer for maximum stability.
This may mean the dozer and the boom are at the same end of the machine, especially if digging down hill.
Lower the dozer sufficiently to bring the machine level. If necessary, to prevent an instability problem, cut a
level platform for the machine to stand on.
Figure 31.
51 9831/8250-4 51
JCB © Admin Pimteam - 23/06/2021 05:32.

jcb 19C-1E Specifications

General

Battery Type	Manganese laminated Lithium-ion
Battery Rated Capacity	14.8 kWh (3 Pack) 19.8 kWh (4 Pack)
Charging	On-board charger with direct connection from AC mains power supply
Charging Time	110V – 12 hrs 230V – 8 hrs
Fast Charging (Optional)	Off-board charger, with connection to 415V 3-Phase supply Charging time <2 hrs
System Voltage	48V
Motor Type	AC permanent magnet
Motor Power	7 kW continuous 20kW peak
Operating Modes	L – 1200rpm G – 1600rpm H – 1800rpm Auto Kick Up – 2300rpm, 2 speed tracking only
Thermal Limitations	Operation: -10oC to +46oC Charging: -10oC to +40oC
