jcb 19C-1E User Manual

Operation
Operating Levers/Pedals
Operating Levers/Pedals
General
WARNING Make sure it is clear overhead before raising the boom. Keep an adequate safe distance from
all electrical power lines. Contact your local power company for safety procedures.
CAUTION Keep the machine controls clean and dry. Your hands and feet could slide off slippery controls.
If that happens you could lose control of the machine.
Control Layouts
WARNING Control lever/switch action may vary on machines, instructional labels near the levers/switches
show by symbols, which levers/switches cause what actions. Before operating control levers/switches check
the instructional label to make sure you select the desired action.
The control levers and switches may vary on machines.
Excavator End Controls
ISO/SAE
Before you operate the excavator controls check the instrument panel to see which control pattern has been
selected.
When the SAE (Society of Automotive Engineers) switch is pressed the control pattern is changed to SAE
from ISO (International Organization for Standardization). SAE is displayed on the instrument panel. Refer to
Figure 35.
When the switch is pressed again the control pattern is changed back to ISO. ISO is displayed on the instrument
panel.
Open the battery compartment cover to get access to the SAE/ ISO switch. Refer to: Battery Cover
(Page 119). Refer to Figure 35.

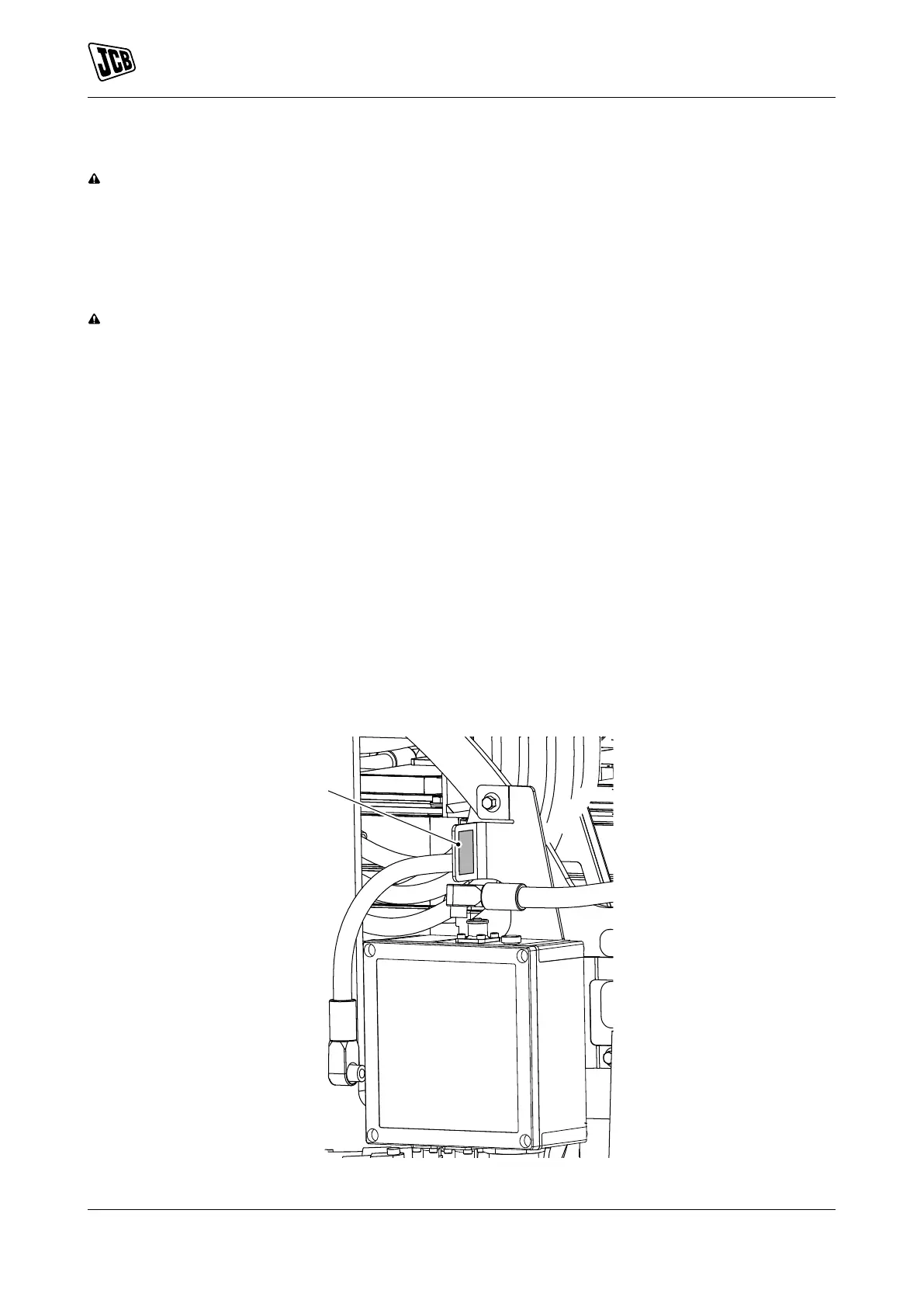

Figure 35.
A
A SAE/ ISO Switch location
53 9831/8250-4 53
JCB © Admin Pimteam - 23/06/2021 05:32.

jcb 19C-1E Specifications

General

Battery Type	Manganese laminated Lithium-ion
Battery Rated Capacity	14.8 kWh (3 Pack) 19.8 kWh (4 Pack)
Charging	On-board charger with direct connection from AC mains power supply
Charging Time	110V – 12 hrs 230V – 8 hrs
Fast Charging (Optional)	Off-board charger, with connection to 415V 3-Phase supply Charging time <2 hrs
System Voltage	48V
Motor Type	AC permanent magnet
Motor Power	7 kW continuous 20kW peak
Operating Modes	L – 1200rpm G – 1600rpm H – 1800rpm Auto Kick Up – 2300rpm, 2 speed tracking only
Thermal Limitations	Operation: -10oC to +46oC Charging: -10oC to +40oC
