jcb 19C-1E User Manual

Operation
Operating Levers/Pedals
Horn Button
The horn button is located on the right hand excavator lever. Refer to: Component Locations (Page 15). Press
and hold the button to activate the horn. It functions only when the ignition switch is on.
Excavator Controls
The excavator controls consist of the excavator levers.
The excavator levers are spring loaded to the central position. In this position related services will not operate.
The speed and movement of the associated hydraulic function depends on how far you move the lever. The
further you move the lever, the faster the action.
The boom ram incorporates damping at the limit of boom raise, reducing the speed of the ram and eliminating
shock loadings.
Raising the left armrest when leaving the cab prevents the services operating. When re-entering the cab, make
sure the armrest is lowered correctly for correct operation.
Most excavating movements are achieved using a combination of both the levers and the pedals at the same
time. Practice such movements until you are familiar with the operations that can be achieved safely.

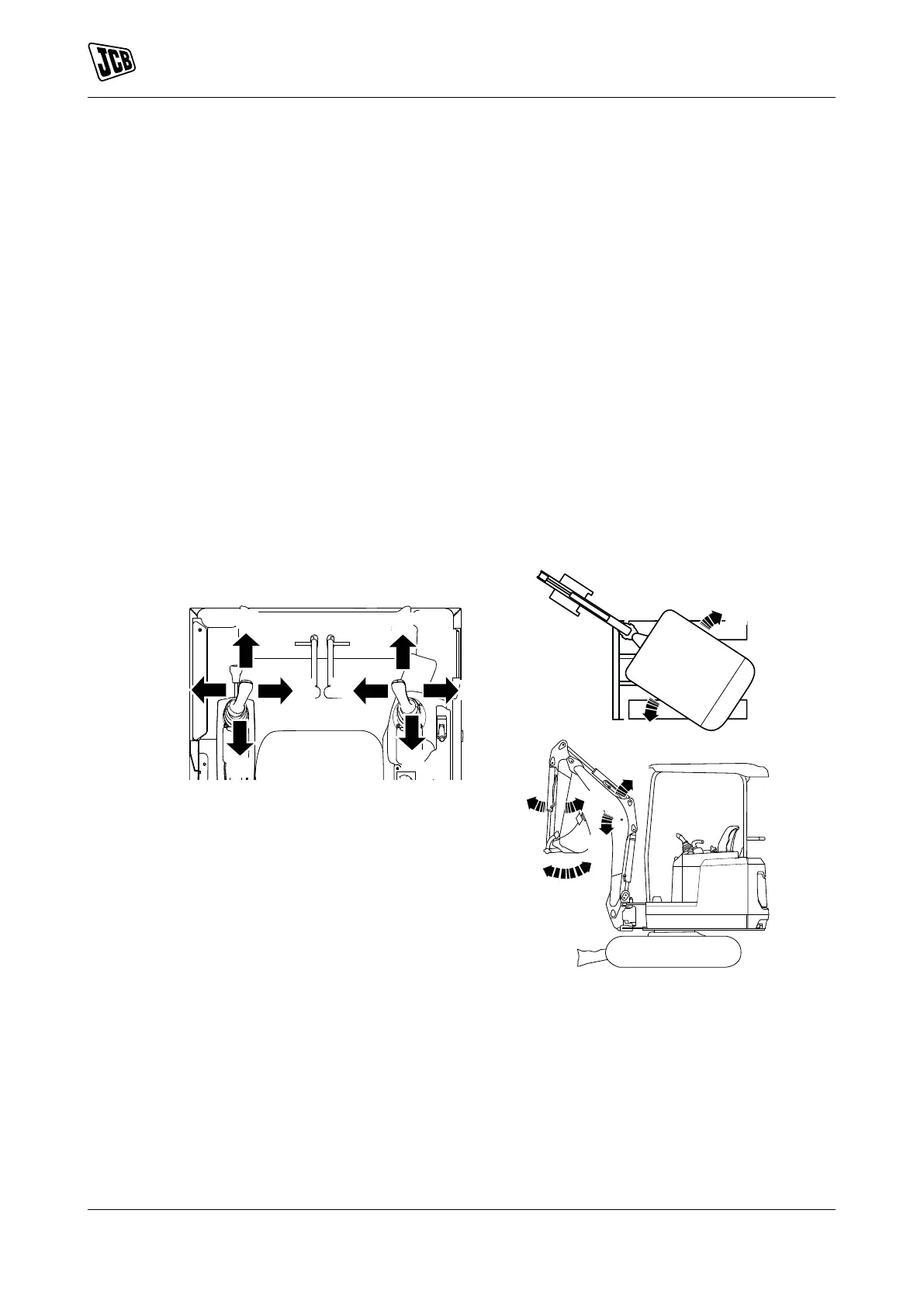

Excavator Levers (SAE Control Pattern)
Figure 36.
D
B
G
A
C
E
H
F
H
G
D
F
A
B
E
C
A Slew cab left B Slew cab right
C Raise boom D Lower boom
E Dipper in F Dipper out
G Crowd bucket (to gather a load) H Dump bucket (to dump a load)
54 9831/8250-4 54
JCB © Admin Pimteam - 23/06/2021 05:32.

jcb 19C-1E Specifications

General

Battery Type	Manganese laminated Lithium-ion
Battery Rated Capacity	14.8 kWh (3 Pack) 19.8 kWh (4 Pack)
Charging	On-board charger with direct connection from AC mains power supply
Charging Time	110V – 12 hrs 230V – 8 hrs
Fast Charging (Optional)	Off-board charger, with connection to 415V 3-Phase supply Charging time <2 hrs
System Voltage	48V
Motor Type	AC permanent magnet
Motor Power	7 kW continuous 20kW peak
Operating Modes	L – 1200rpm G – 1600rpm H – 1800rpm Auto Kick Up – 2300rpm, 2 speed tracking only
Thermal Limitations	Operation: -10oC to +46oC Charging: -10oC to +40oC
