Operation
Preparing for Travel
Preparing for Travel
General
When you travel on the road or on site there are usually local rules and safety regulations for the machine
travel position.
This publication contains recommendations that may help you meet the requirements of these regulations, they
are not necessarily the applied law.
Make sure that before you travel on the road or on site, you and your machine comply with all the relevant
local laws - it is your responsibility.
Preparing for Worksite Travel
1. Activate the warning beacon if installed.
Refer to: Beacon (Page 42).
2. Position the excavator.
2.1. Position the cab facing forward over the dozer.
2.2. Raise the dozer blade.
2.3. Level Site Conditions: Position boom fully up, operate dipper fully in and bucket fully crowded, i.e.
bucket rotated fully towards cab.
Beacon
In certain territories you will be breaking the law if you do not install a beacon before you travel on site/public
highways - make sure you are complying with local laws.
Be careful when you operate the machine with a beacon. The total height of the machine is increased when
the beacon is in the operating position.

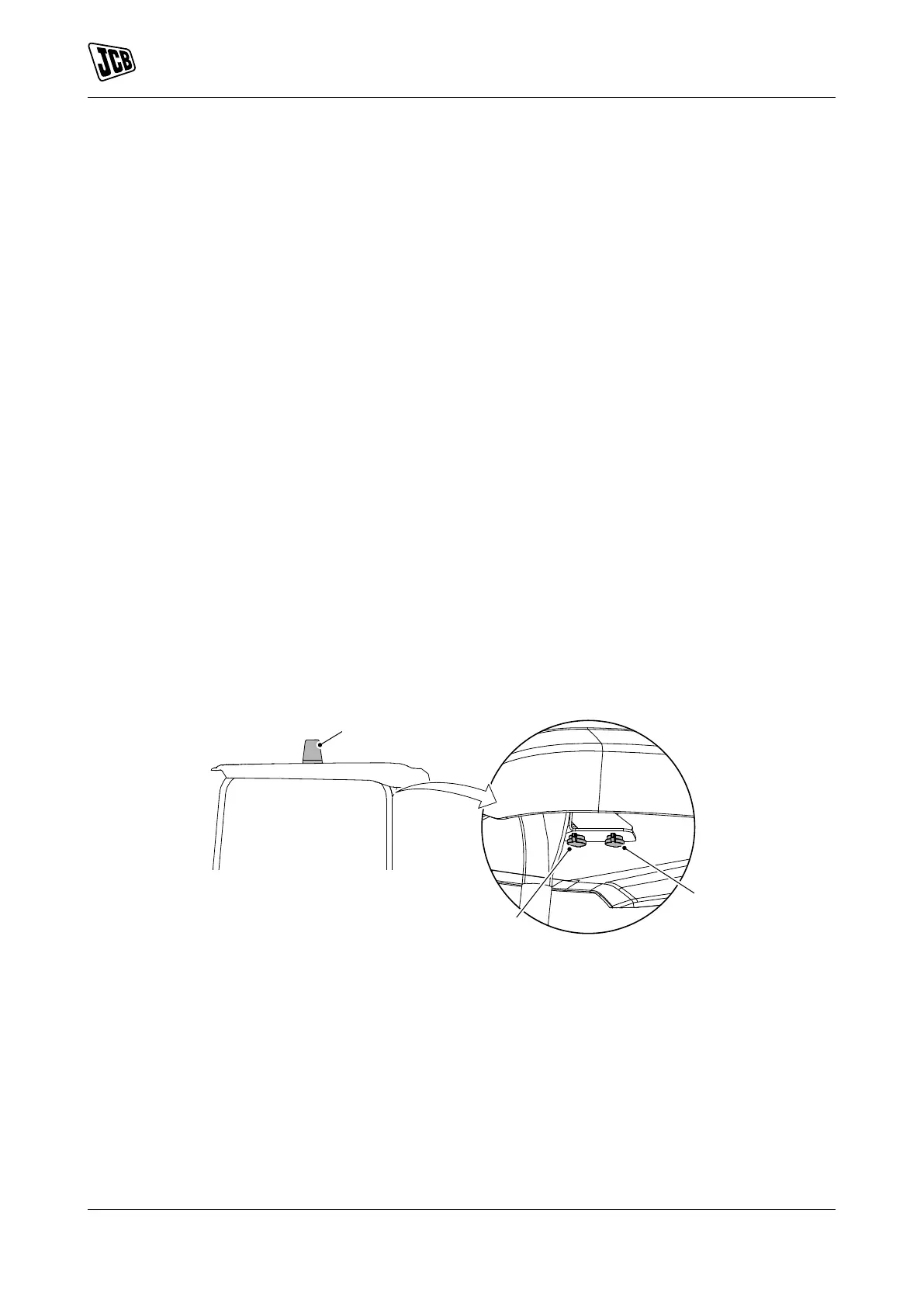

Figure 23.
A Beacon B Socket for amber beacon
C Socket for green beacon
1. Put the beacon on the canopy roof. A magnetic base keeps the beacon in position.
2. Put the plug into the socket. Refer to Figure 23.
3. Use the beacon switch located on the side console panel to operate the amber beacon. The indicator light
in the switch illuminates when the beacon is operating.
For the beacon switch operation. Refer to: Console Switches (Page 18).
The green beacon will only illuminate when the seat belt is fastened.
