jcb 19C-1E User Manual

Maintenance
Body and Framework

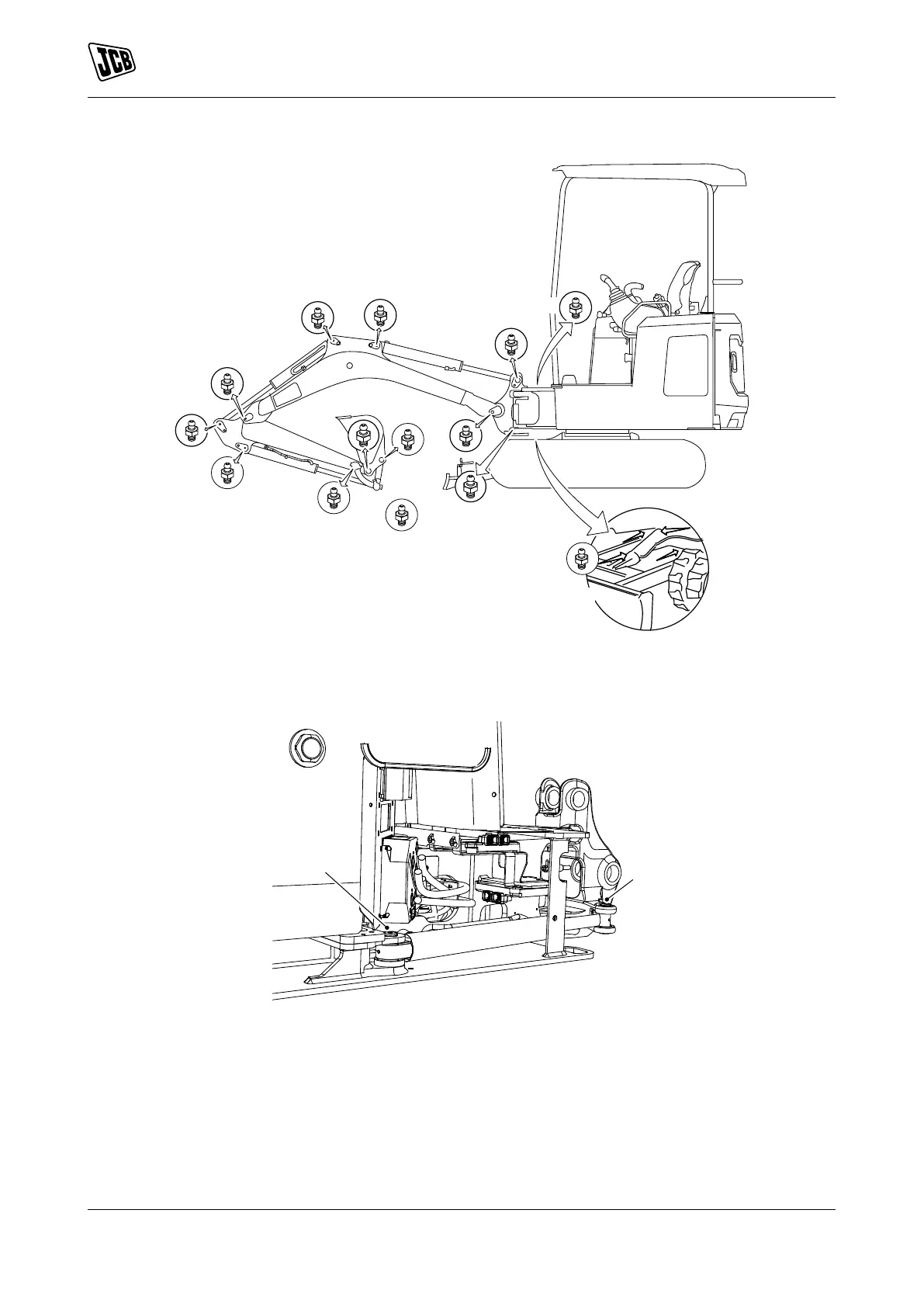

Figure 102.
A
C
C
A
A
B
B
B
B
B
C
D
D
E
A Dipper/dipper ram pivot pins B Bucket/bucket ram pivot pins
C Boom/boom ram pivot pins D Kingpost pivot pins
E Dozer/dozer ram pivot pins
Figure 103.
A
B
A Rear swing ram pivot pin B Front swing ram pivot pin
131 9831/8250-4 131
JCB © Admin Pimteam - 23/06/2021 05:32.

jcb 19C-1E Specifications

General

Battery Type	Manganese laminated Lithium-ion
Battery Rated Capacity	14.8 kWh (3 Pack) 19.8 kWh (4 Pack)
Charging	On-board charger with direct connection from AC mains power supply
Charging Time	110V – 12 hrs 230V – 8 hrs
Fast Charging (Optional)	Off-board charger, with connection to 415V 3-Phase supply Charging time <2 hrs
System Voltage	48V
Motor Type	AC permanent magnet
Motor Power	7 kW continuous 20kW peak
Operating Modes	L – 1200rpm G – 1600rpm H – 1800rpm Auto Kick Up – 2300rpm, 2 speed tracking only
Thermal Limitations	Operation: -10oC to +46oC Charging: -10oC to +40oC
