jcb 19C-1E User Manual

Operation
Entering and Leaving the Operator Station

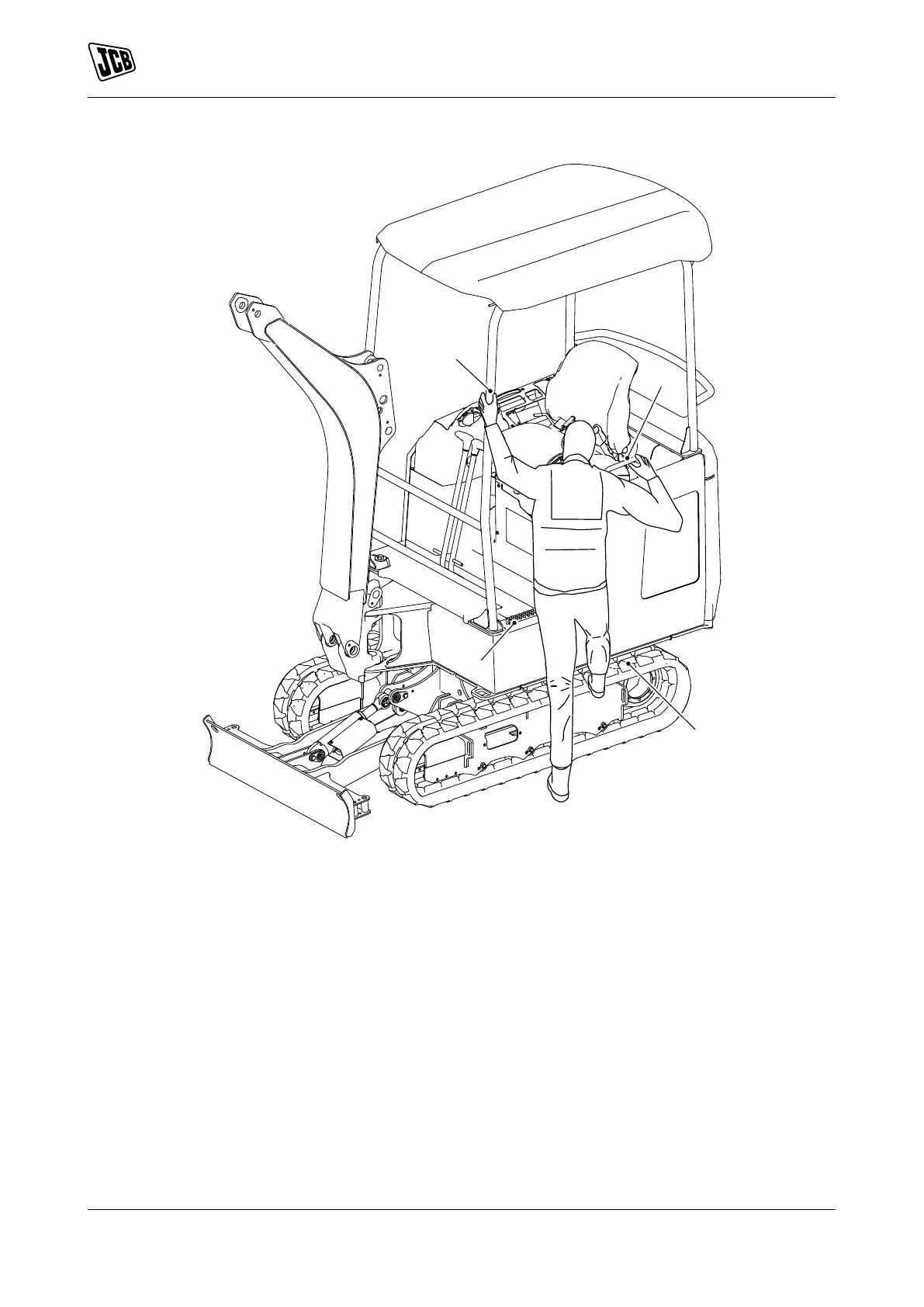

Figure 13.
A
A
B
C
A Handrails B Track
C Cab step
3. Hold the left handrail, step into the cab and swing yourself into the operators seat.
Leaving the canopy
1. Park the machine on solid, level ground with the upper structure parallel to the undercarriage.
2. Turn the ignition switch to position 'I'.
3. Operate the hydraulic control several times to release any residual hydraulic pressure in the system.
4. Turn the ignition key to position '0'.
5. Raise the left control console.
6. Hold the left handrail and turn your back towards the cab step.
7. Hold both handrails and use the track to step down backwards from the cab step onto the ground.
29 9831/8250-4 29
JCB © Admin Pimteam - 23/06/2021 05:32.

jcb 19C-1E Specifications

General

Battery Type	Manganese laminated Lithium-ion
Battery Rated Capacity	14.8 kWh (3 Pack) 19.8 kWh (4 Pack)
Charging	On-board charger with direct connection from AC mains power supply
Charging Time	110V – 12 hrs 230V – 8 hrs
Fast Charging (Optional)	Off-board charger, with connection to 415V 3-Phase supply Charging time <2 hrs
System Voltage	48V
Motor Type	AC permanent magnet
Motor Power	7 kW continuous 20kW peak
Operating Modes	L – 1200rpm G – 1600rpm H – 1800rpm Auto Kick Up – 2300rpm, 2 speed tracking only
Thermal Limitations	Operation: -10oC to +46oC Charging: -10oC to +40oC
