USINGTHEMACHINE
101
MUX20JP021602
BoomLiftModels X20JPLUS
Pressingthebuttononceshowsthescreenforthemanualoperationofstabiliser
1,pressingitasecondtimeshowsthescreenforstabiliser 2andsoonuntilstabi‐
liser4.Pressingitonceagainshowstheinitialdisplay.Inthemanualmenu, pres‐
sing buttons 1 and 7 raises or lo
wers the selected stabiliser. To verify the
inclinationofthechassisaspiritlevel isprovidedonthe machine;whentheair
bubbleitcontainsiscompletelyinsidethegreenarea(seephotobelow)thema ‐
chineisinconditionsthatallowoperation.
Pleasenotethatstabilizethe machineonsl
opesgreaterthanallowablelimits(see
technicaldataofthemachineʺTechnicaldata(p. 19)ʺ)doesnotpermitcorrect sta‐
bilizationandisaseriousdangerforusers.
Oneachstabiliser(seephotobelow),nearthecylindercoupling,thereisanoran‐
gelight.Thislightflashestoindicatethatthest
abiliserisrestingontheground.
Anelectroniclevelontheelectronic controlboardchecksthatthemachineis
effectivelylevelledwithintheallowabletoleranceandenablesthemovements
oftheaerialpart.

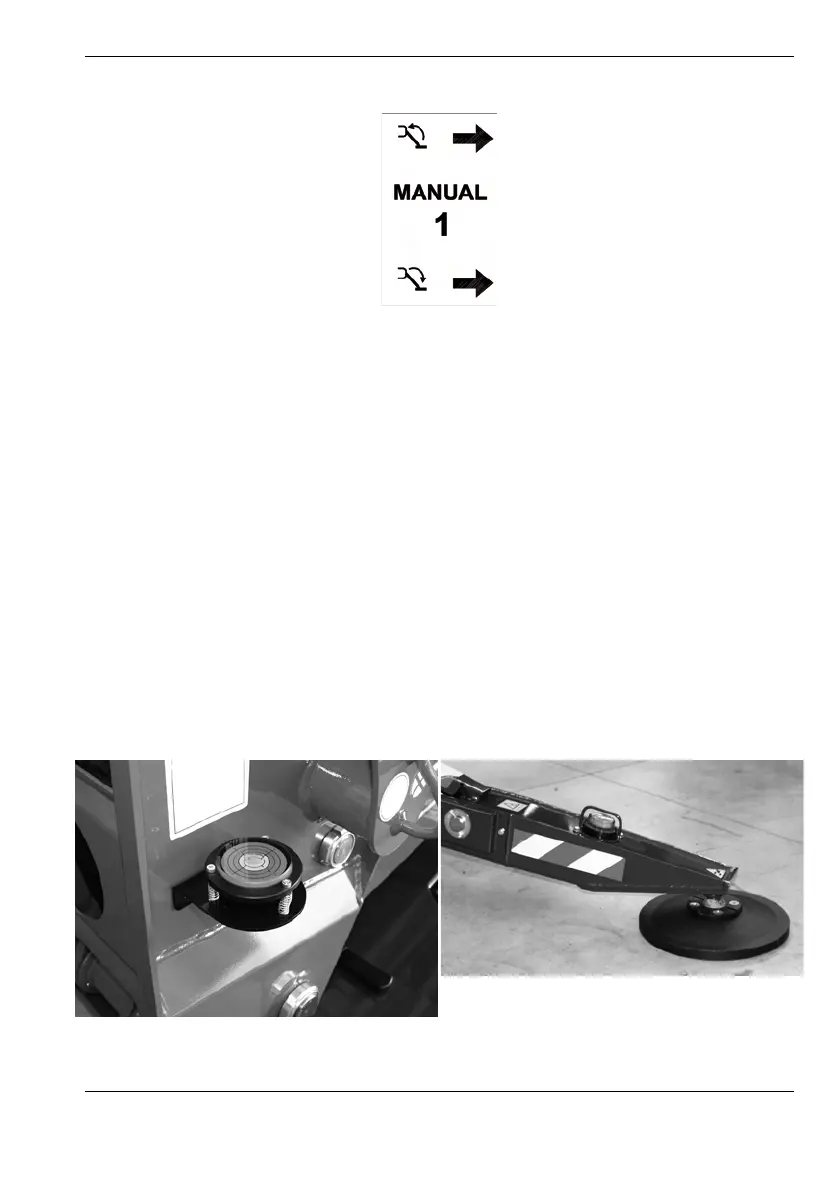

Fig.93 Manualstabiliserselection
Fig.94 Visiblespiritlevel Fig.95 Indicatorlightplateontheground
