USINGTHEMACHINE
107
MUX20JP021602
BoomLiftModels X20JPLUS
PROCEDUREFORROUTINEMOVEMENTOFTHEAERIALPART
a Beforemovingtheaerialpart,makesurethat:
–Allinstructionsprovidedinthischapterhavebeencompliedwith.
–Therearenoobstaclesintheworkarea.
–Alltheconditionsnecessaryforworkingataheightaremet.
–Themachineisstabilisedandlevelled:icon5shownonthed
isplay.
–Theweightinthebasketisbelowthemaximumallowed.
–Theremotecontrolispositionedinthebasket.
–Thebasketaccessladderhasbeenfoldedintotheraisedpositionsoasnot
toriskcontactduringmovementoftheaerialpart.
b TheaerialpartcanONLYbemo
vedfromthecontrolpositioninthebasket.
c Selectthemotorspeedasrequiredandchecktheselectiononthedisplay.
d Usejoysticksontheremotecontroltomovetheaerialpartasdescribedinthe
paragraphregardingthedescriptionofthecontrolsʺJoystick(p. 59)ʺ.
e Ifthemovementsaresel
ectedwhenoneoftheconditionslistedaboveisnot
satisfied,anerrormessagewillbeshownonthedisplayindicatingwhatcondi‐
tionsareOKandwhatarenotsatisfied(FAIL).Ifthemissingconditionisstabili‐
sation,themessagewillalsoindicatewhatstabiliserisnotrestingonthegr
ound.
ST1:ifOKstabiliser1isrestingonthe
ground
ST2:ifOKstabiliser2isrestingonthe
ground
ST3:ifOKstabiliser3isrestingonthe
ground
ST4:ifOKstabiliser4isrestingonthe
ground
INLC:ifOK the machine isunderthe
maximuminclinationlimit
LOAD:ifOK,theloa
dislessthan the
maximumworkingloadallowed
BASKET:ifOKtheremotecontrolisin
placeinthebasket
PEDAL:ifOKthefootswitchispushed

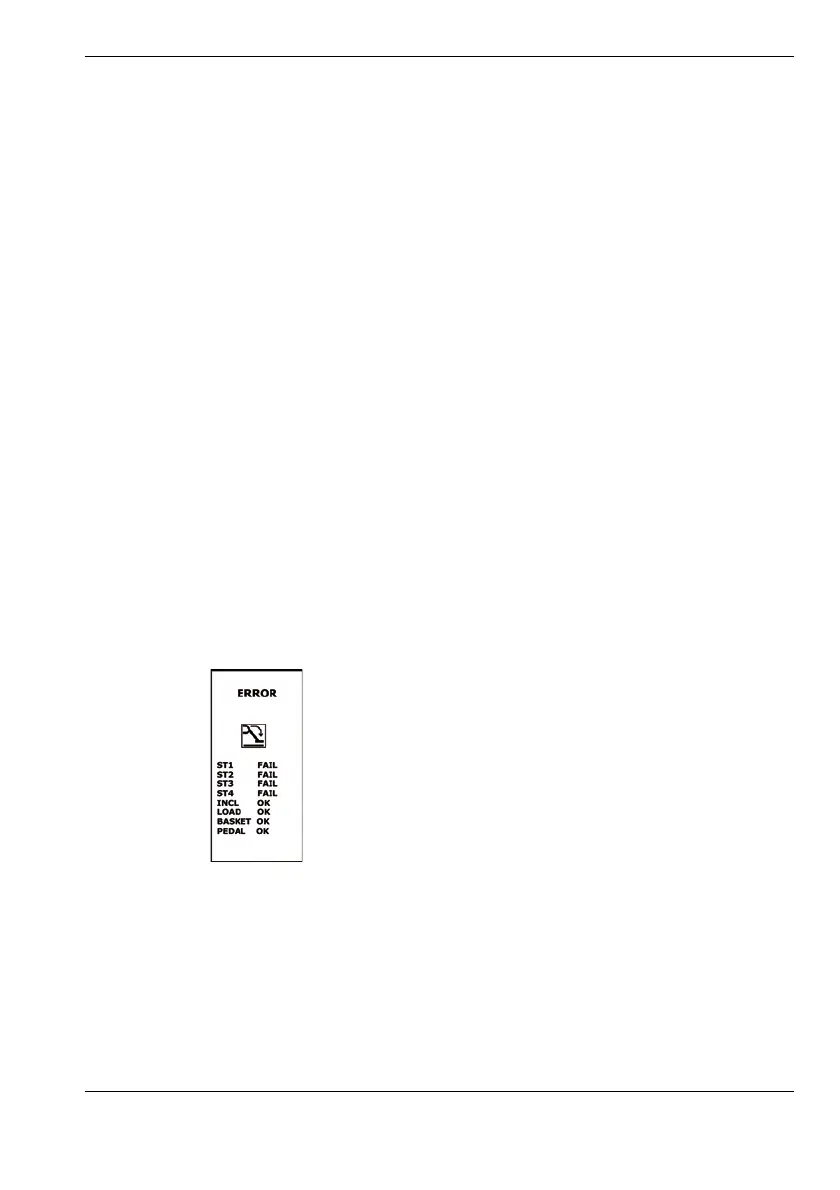

Fig.100 Errormachinenotstabilised
