TO ACTIVATE THE ACRO MODE
ENTER A NAME FOR THE MODEL
A-4
A-5

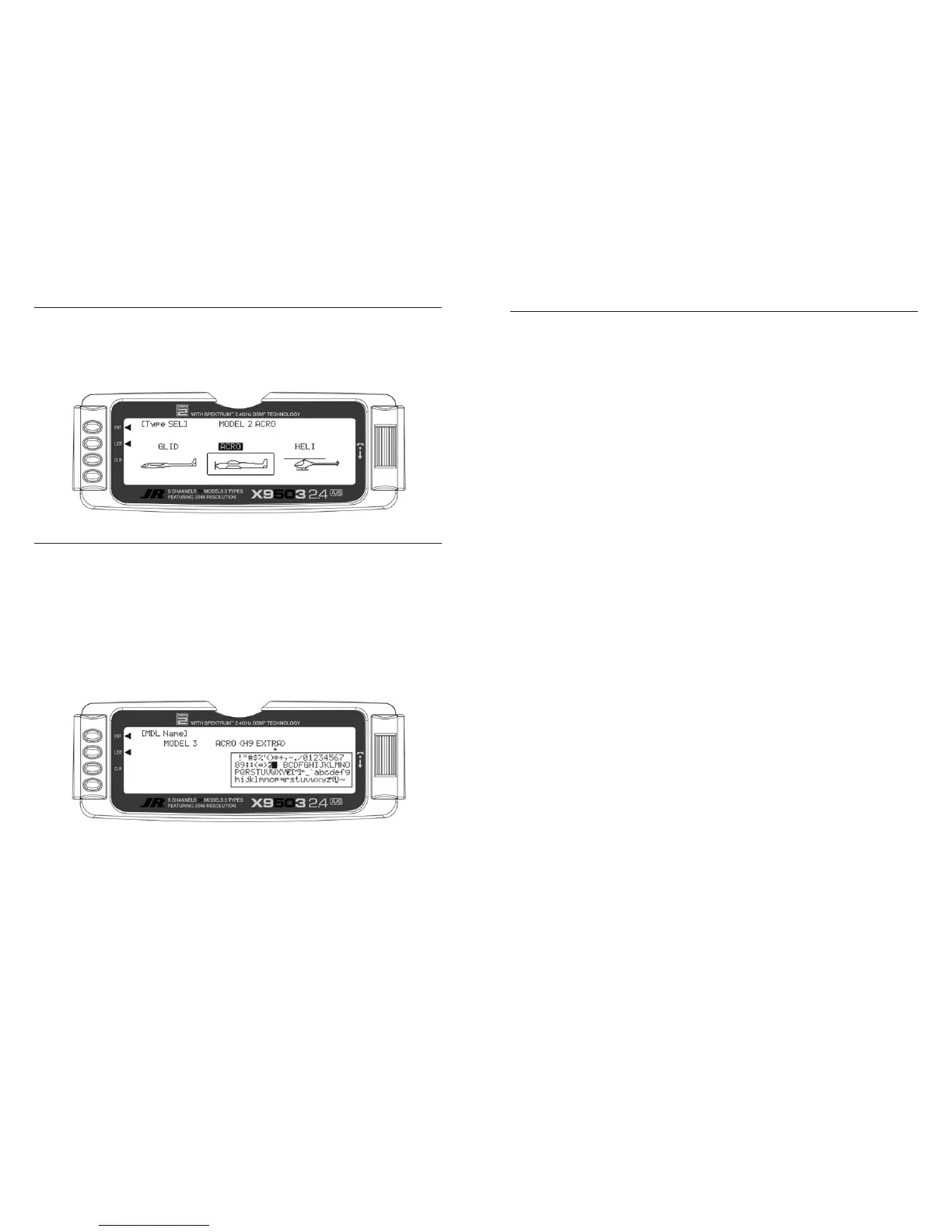

After selecting and resetting a model memory, program
the transmitter to ACRO.
1. In the SYSTEM Menu, highlight and select Type
SEL using the Selector.
2. Highlight and select ACRO using the Selector.
3. Return to the SYSTEM Menu by pressing
the LIST button.
You should name your models for easy identification in
the model memory list and on the main display screen.
The model name appears in the upper right-hand corner
of the main screen when the transmitter is switched on.
1. In the SYSTEM Menu, highlight and select MDL
Name using the Selector.
2. The cursor (the triangle that indicates where the next
character will be placed), is at the beginning of the
model name. Press the Selector to obtain a list of
available characters.
3. Highlight and select the desired character to create the
model name. After a character is selected, rotate the
Selector to position the cursor for the next character
and press the Selector to obtain the character list
again. Repeat until the model name is completed.
4. Return to the SYSTEM Menu by pressing the LIST button.
Device SEL and Wing Type are two powerful functions
in the SYSTEM Menu that control some of the more
advanced features of the X9503 2.4 system. Use the
Device SEL function to activate/inhibit Flight Modes;
change switch assignments; activate/inhibit switches/
channels; and to activate the FLAP TRIM lever that is next
to the FLAP switch on the transmitter.
Use the Wing Type function to indicate the wing type
(Normal, Flaperon, Delta); program the aircraft’s tail
configuration; and identify any dual channels for primary
flight controls (ELEV, AILE, RUDD, FLAP). Wing Type
also provides for a second throttle channel, complete with
independent trim and throttle curves to accommodate
twin-engine aircraft.
ACRO - SYSTEM MENU - ADVANCED FUNCTIONS
