JR X9503 2.4 User Manual

Type Select – TO ACTIVATE HELI MODE
MDL Name-ENTER A NAME FOR THE MODEL
TRANSFER A MODEL FROM THE X9503 2.4 – (Transfer function) – To Send
TRANSFER – TRANSFER THE MODEL TO ANOTHER TRANSMITTER
H-6
H-7

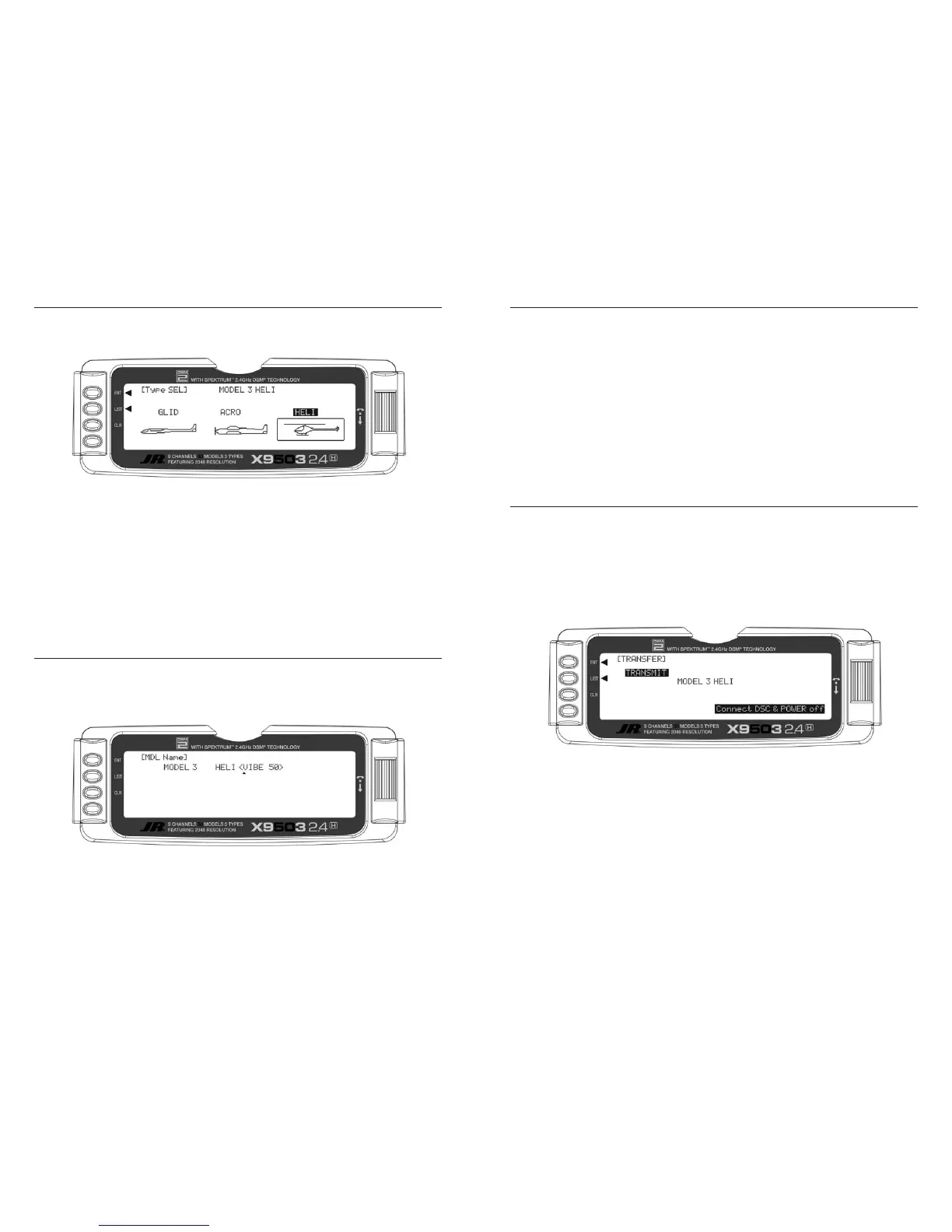

1. In the SYSTEM Menu, highlight and select Type
SEL using the Selector.
2. Highlight and select HELI using the Selector.
You should give each model a name for easy identification
in the model number list and the current model on the
main display screen.
3. Return to the SYSTEM Menu by pressing the
LIST button.
1. In the SYSTEM Menu, highlight and select MDL
Name using the Selector.
2. Highlight and select the desired characters to form the
model name.
After selecting and resetting the desired model number to
program, you need to activtate Heli Mode.
3. Return to the SYSTEM Menu by pressing the
LIST button.
1. Hold the ENT button while plugging the trainer cord
into the back of the transmitter to obtain the SYSTEM
Menu. Plug the other end of the trainer cord into
another X9503 2.4 transmitter while holding the ENT
button down and prepare that transmitter for Receive as
described below.
2. Highlight and select TRANSFER in the SYSTEM Menu
to show the Transfer display.
3. Make sure the model to be transferred is the currently
selected model. If it is not selected, see Model SEL
in the SYSTEM Menu to select the model to be
transferred to another JR X9503 2.4.
You can use the TRANSFER function (in the System
Menu) to copy the contents of a model memory to another
X9503 2.4. It can also receive data for a model from
another X9503 2.4 transmitter.
.
4. When the receiving device is ready, press the CLR
button next to START on the left side of the display.
The data for the currently selected model is transferred
to the receiving device.

JR X9503 2.4 Specifications

General

Brand	JR
Model	X9503 2.4
Category	Receiver
Language	English
