The X9503 2.4 contains a Timer System with two timers.
One is an integrated timer that keeps track of total
transmitter-on time for the model and displays on the
Main display. You can configure this as a Countdown
timer or Stopwatch. This timer also appears on the Main
display when active and can be started, stopped and
reset from the Main display. It is a good idea to use the
Countdown timer as a reminder that it is time to land so
as not to run out of fuel. If using the Countdown timer,
an Auto Start function is available that will start the timer
when the throttle is raised over 20% the first time after the
transmitter is turned on.

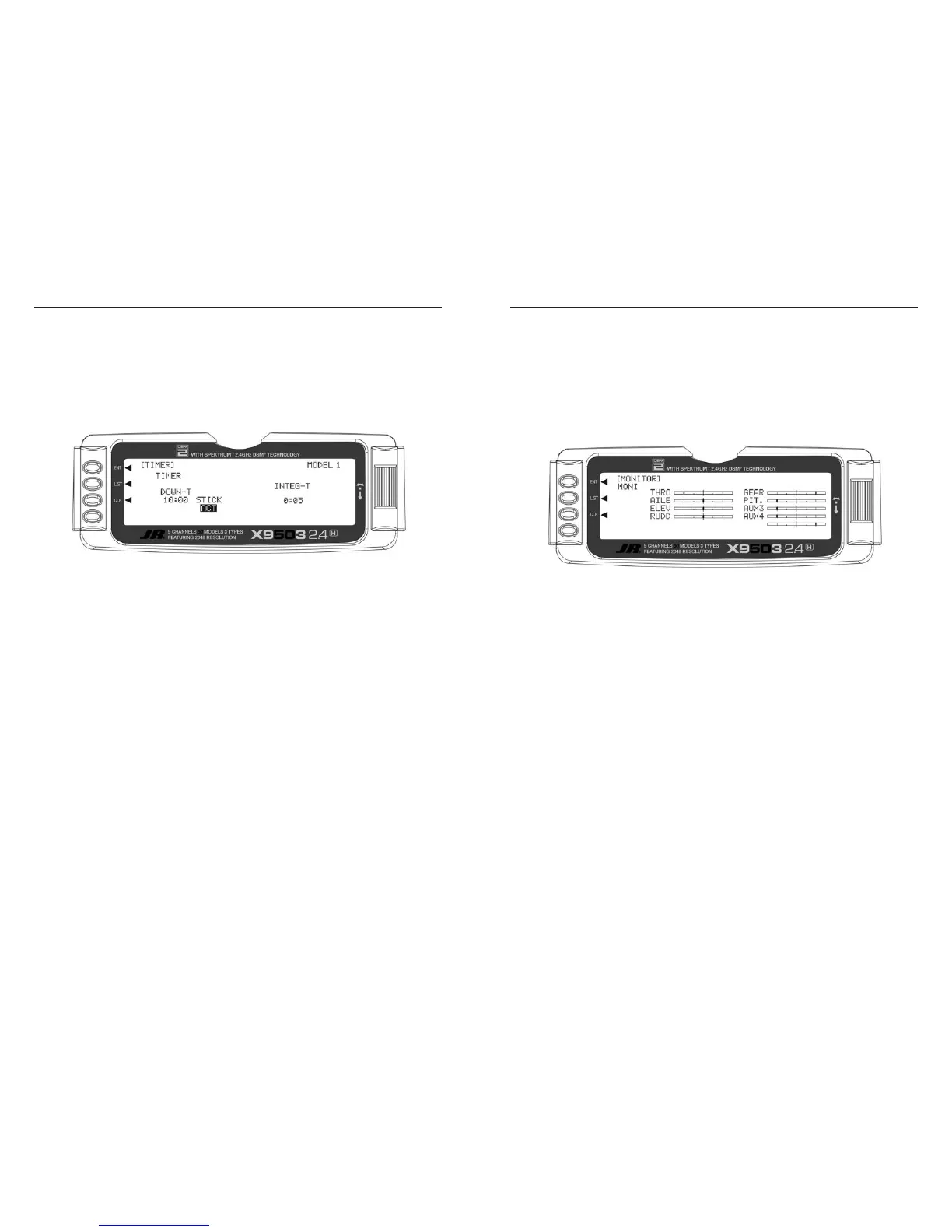

1. To configure the timer as a Countdown timer, highlight
and select Timer in the FUNCTION LIST to obtain
the Timer display.
Highlight and select INH under TIMER then select
DOWN-T. Use the Selector to set the countdown start
time. Once the timer is set, TIM appears in the lower left
corner of the Main display. Press the button next to TIM
on the Main display to start and stop the timer. Press the
button next to CLR to reset the time to the programmed
value.
2. To Reset the Integrated Timer, highlight and select the
time under INTEG-T. Push [CLR]=0:00 appears
on the display. Press the CLR button to the left of the
display to reset the integrated timer.
The Servo Monitor function displays each channel and
shows the movement of channels when sticks, levers
and switches are moved. It renames channels according
to special assignments to assist in identifying what is
moving. For instance, when 120 CCPM Swashplate Type
is selected, the Servo Monitor displays CH-2, CH-3, and
CH-6. It is a handy way to determine what channels are
mixed with other channels and verify programming when
the helicopter is not at hand. The Monitor function also
displays the current value of all digital trims.
1. To access the Monitor function, highlight and select
MONITOR in the FUNCTION LIST to obtain the
Monitor display.
2. The default display (MONI) shows the settings of
all digital trims. To view the Monitor display of all
channels, highlight and select MONI. View the display
while moving sticks, switches and levers to see the
movements of various channels.
3. To view the Digital Trim values and Hover Pitch (HOV
P) and Hover Throttle (HOV T) Lever values, Highlight
MONI with the Selector and press. The word MONI
changes to TRIM to show the trim values for these
levers. To move back to the Channels display, press
TRIM to return to MONI and the servo travel and
output positions display once again.
Note: If you’ve selected any CCPM mixing, channel
naming will vary.
3. If the Auto Start function is desired which starts the
timer by the throttle stick, select INH next to STICK and
select this to ACT. With this set to ACT, the Auto Start
function will start the timer when the throttle stick is
raised above 20%.
