Step #15 Launch Presets Step #16 Dual Rate and Exponential
Step #17 Elevator-to-Flap Mix
S-50
S-51
The X9503 2.4 offers a sophisticated program that
allows easy preset trim positions for the elevator, flaps,
flaperons (and even the aileron and rudder if you choose).
The system can remain active in flight, allowing you to
fine-trim presets in each flight mode or be locked in so
they cannot be altered in flight. Flight mode presets are
automatically selected via the flight mode switch and are
adjusted with the digital elevator trim, the digital flap trim
and the digital auxiliary trim (flaperon). While the presets
are adjusted via the digital trims, their positions are
recorded in the servo monitor.

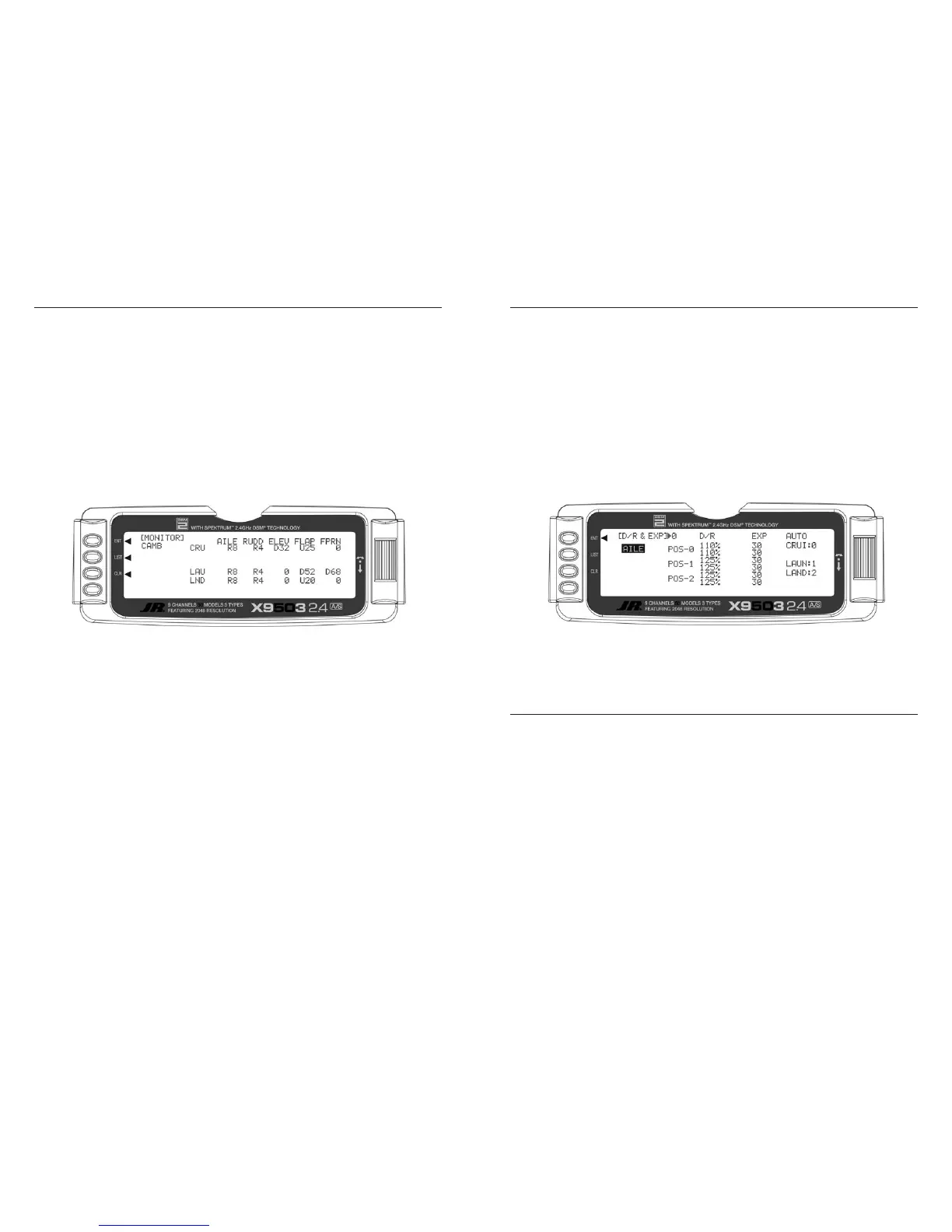

To access the servo monitor, in FUNC.LIST highlight
MONITOR. Press the Selector to access the Monitor
menu then press the Selector again to access the camber
digital preset screen. To adjust the presets move the flight
mode switch to the launch mode (up) position. Adjust
the preset positions via the flap trim, auxiliary trim and
elevator trim on the transmitter. The values will display
in the screen and then will be memorized for that flight
mode. If you want these preset values to be fixed (not
active in flight) once the values are established, return to
the Trim Step screen in the system mode and reduce the
value of the desired channel to 0. The preset values for all
flight modes will be stored and no longer accessible with
the digital trims.
In
FUNC.LIST, highlight D/R & EXP. Press the Selector
to access the Dual Rate and Exponential menu. Highlight
the channel (aile, elev or rudd) then press the Selector
to select the channel you wish to adjust the dual and expo
rates for. Rotate to select then press the Selector to store
the desired channel.
Note that three
D/R and EXPO positions (values) are
available (Pos0, 1 and 2). Under AUTO on the right of
the screen, highlight
LAUN and press the Selector.
Select Pos0 as the active position for the launch mode
by rotating the Selector then press the Selector when
Pos0 is highlighted. This automatically accesses dual rate
and expo values programmed into position 0 whenever
launch mode is selected. Now rotate the Selector to
Pos0 and highlight the D/R values. Rotate the Selector
to change these values. Displace the aileron stick right or
left to independently adjust the dual rate in each direction.
Depress the Selector to store the desired D/R values.
Rotate the Selector to the
EXP Pos0 values and adjust
these values in the same manner pressing the Selector to
store the desired value.
Now go back to channel and repeat for the two remaining
channels. Press the
LIST button to return to the Function
Mode screen.
This function is normally not used in launch mode. It will
be addressed in setting up the Cruise mode below.
