HELI - SYSTEM MENU - ADVANCED FUNCTIONS
ADDITIONAL FLIGHT MODES 3 and 4
RUD TRIM: COM – (Flight Mode Trim Options)
SWITCH ASSIGNMENTS
H-10
H-11
There are two functions in the SYSTEM Menu that
control some of the more advanced features of the X9503
2.4 system. They are the Devic. SEL and
Swash Type functions.
The Devic. SEL function activates and deactivates 2
additional Flight Modes; changes switch assignments
from the system defaults; activates and deactivates
switches/channels, activates/deactivates the Hover
Throttle, and Hover Pitch levers, and activates/deactivates
the Governor function.
The Swash Type function indicates the Swashplate type
(Normal (1 Servo), CCPM 180, 120, 140, and both 3 and
4 servo 90).
Each of the options in these two functions is described
below to the extent necessary to determine if they should
be used for the helicopter being programmed.
The X9503 2.4 offers the pilot up to 6 separate flight
modes. The X9503 2.4 is factory preset to offer the pilot 4
separate Flight Modes (N, 1, 2, H). There are 2 additional
flight modes, numbered 3 and 4, that can be activated
through the Device Select function.
To Activate 2 Additional Flight Modes
(Flight Modes 3 and 4)

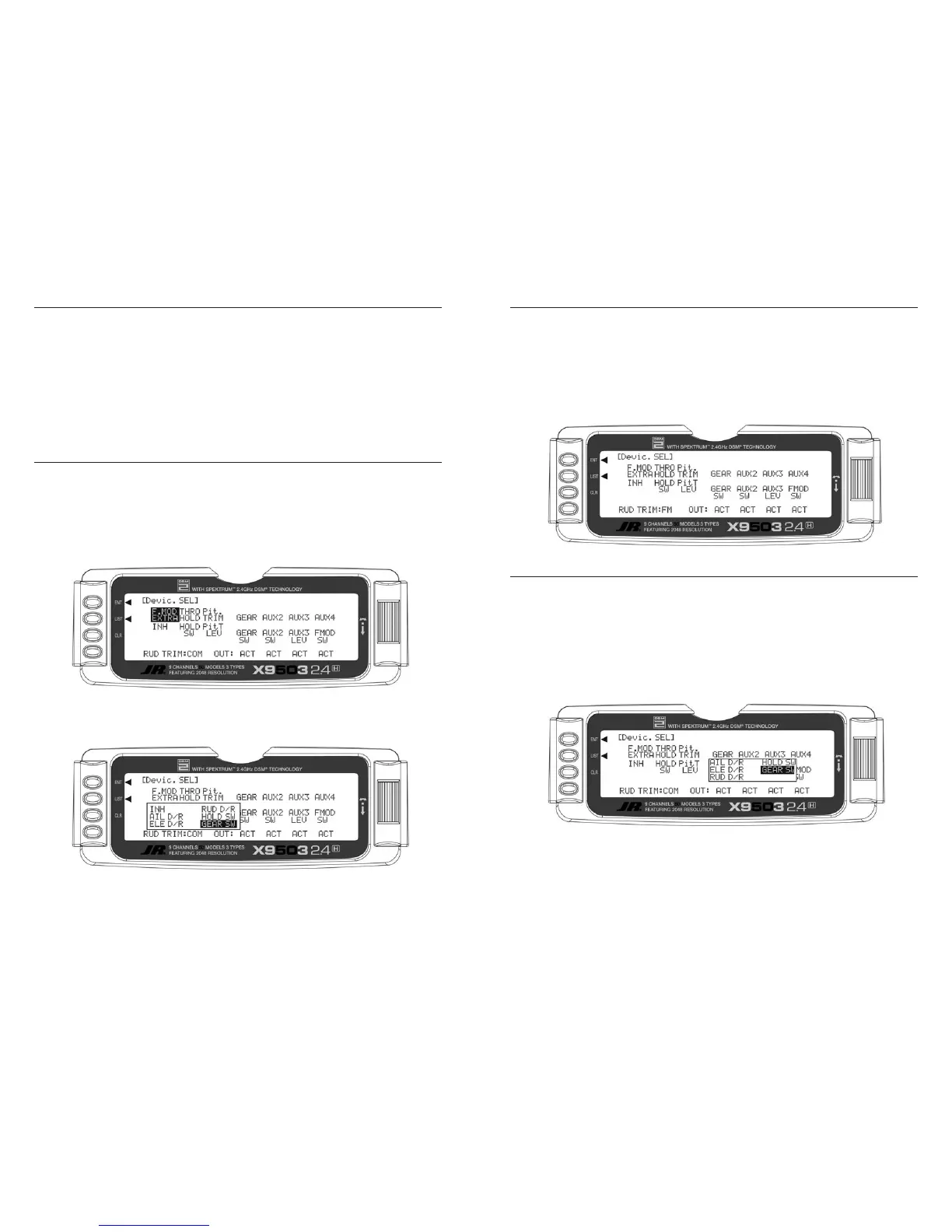

1. From the SYSTEM Menu highlight and select Devic.
SEL by using the Rolling Selector.
2. Highlight and select F.MOD Extra using the Rolling
Selector. When selected, five options appear: AIL
D/R, ELE D/R, RUD D/R, HOLD SW, and GEAR
SW. Highlight and select the switch you want to
access Flight Modes with while flying. The example
below shows the GEAR switch selected.
Once Flight Modes are activated, two additional sets of
Throttle and Pitch curves numbered 3 and 4 will appear in
the Function Mode.
The Rud Trim function allows the pilot to choose between
1 set of trim settings for the Rudder channel only in all
flight modes (COM) or a separate set of trim settings for
each of the flight modes (FM).
You can toggle the RUD TRIM:COM parameter back and
forth between COM and FM by pressing the Rolling
Selector when COM or FM is highlighted. If left in the
COM mode, the digital trim for rudder is Common or
shared by the 3 Flight Modes. If you select FM, the X9503
2.4 keeps track of the digital trims independently for each
Flight Mode, meaning you can re-trim the rudder using
the digital trims for each Flight Mode.
To change one or more switch assignments:
1. From within the Devic.SEL function, use the
Selector to highlight and select THRO HOLD, PIT
Trim, GEAR, AUX2, AUX3, or AUX4 along the top
line of the display.
2. Once you select a switch, a list of available replacement
switches displays. Highlight and select the desired
switch with the Selector.
The X9503 2.4 provides the ability to change the
standard default switch assignments for THRO Hold,
PIT Trim, GEAR, AUX2, AUX3, and AUX4. Changing the
assignments may be a matter of preference or to help
overcome a disability in one hand. In any event, the
standard switch assignments may be changed in Devic.
SEL function contained in the SYSTEM Menu.
3. Repeat for as many switches as desired.
