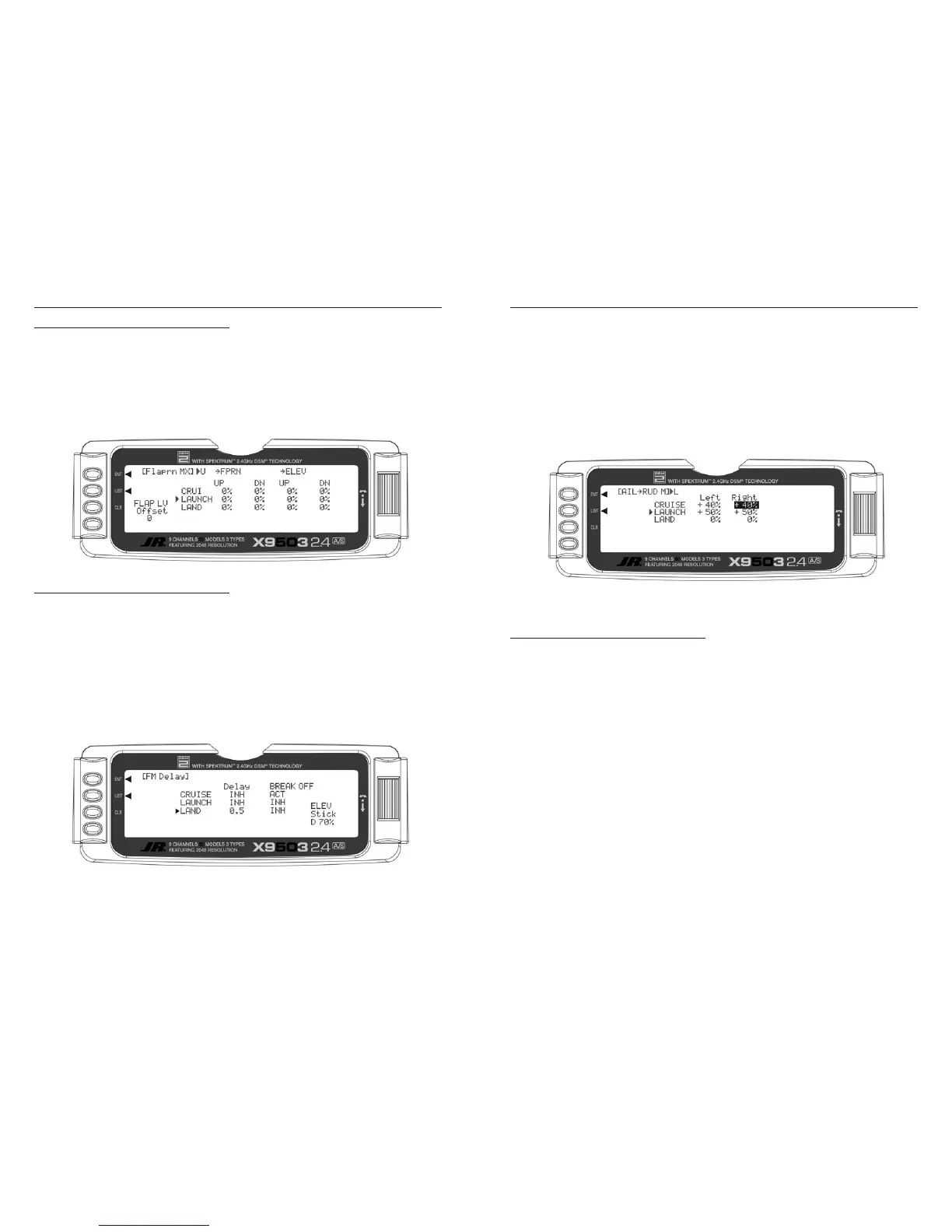

Step #21 Flap Rate, Camber Mix and Camber Adjust (continued) Step #22- Aileron-to-Rudder Mix
S-54
S-55
Flaperon Mix
Note: Flap rate must be set before camber mix.
In
FUNC.LIST highlight Flaprn MX. Press the Selector
to access the Camber Mix menu. Highlight the launch
FPRN down value then press the Selector to access
this value. With the flight mode switch in the upper
launch mode, move the left side lever to the lowermost
position and adjust the down value to the desired flaperon
Flaperon Mix Delay
The camber adjust menu allows the programming of a
delay from 0 to 2 seconds. This delay affects the flap,
flaperon and elevator presets when switching from one
flight mode to another. When inhibited, no delay occurs
and the servo immediately transitions from one preset trim
position to another when the flight modes are switched.
With a delay programmed the transition is smooth relative
to the delay time. A break-off function is available that you
can program to override the delay, based on a selected
elevator stick position. For this setup, we will program a
1.0 second delay for Launch.
position. Press the Selector to store the value. Now with
the flight mode switch in the upper launch mode, move
the left side lever to the uppermost position and adjust
the up value to the desired flaperon position and store
by pressing the Selector. Repeat the process for the up
and down elevator camber mix. Press the LIST button to
return to the Function Mode screen.
In
FUNC.LIST highlight FM Delay. Press the Selector
to access the Camber Adjust menu. Highlight the launch
delay value then press the Selector to access this value.
Rotate the Selector to adjust the value to 1.0s (seconds),
Press the Selector to store the value. Press the LIST
button to return to the Function Mode screen.
In
FUNC.LIST highlight AILRUD M. Press the
Selector to access the Aileron-to-Rudder mix menu.
Highlight the launch left value then press the Selector to
access that value. With the flight mode switch in the upper
launch mode, give a full left aileron command and rotate
the Selector to achieve the desired left rudder throw.
Press the Selector to store the value. Now highlight the
launch right value and adjust it to the desired position.
Press the LIST button to return to the Function Mode
screen.
Setting Up Cruise Mode
In Step #8, Establishing Flight Modes, flight modes were
programmed to operate from the left front 3-position
switch. To select Cruise mode, move the left 3-position
switch to the middle position. In the main (info) screen
CRUISE appears in the upper portion of the display when
Cruise mode is selected. When making programming
changes/adjustments in Cruise mode, this 3-position
switch must remain in the middle position during the
process to allow the results of those adjustments to be
seen on the model.
