The X9503 2.4 contains a Trainer System that allows
the instructor to transfer some or all of the primary
flight control functions (Throttle, Aileron, Elevator and
Rudder) to the student. It also allows for indicating if the
transmitter is to be the Master or Slave. The Trainer (TRN)
switch transfers control to the student when the X9503 2.4
is being used as the Master/Instructor transmitter. All Dual
rates and Exponential settings in the Master transmitter
are transferred to the Slave transmitter when the master
transmitter channels are selected individually in the trainer
menu. The Slave transmitter battery must be charged.
1. Connect the Trainer cord between the Master and
Slave transmitters. Turn the power on to the Master
transmitter. The Slave transmitter remains powered off
and can even have the module removed.
2. Make sure the Slave transmitter is in the PPM/FM
modulation mode. If the slave system is a X9503 2.4 or
any other Spread Spectrum system, such as other JR
2.4GHz or Spektrum systems, this does not apply.
3. Highlight and select Trainer in the FUNCTION LIST
to obtain the Trainer Display.
4. If using the X9503 2.4 as the Master transmitter, select
the channel(s) the Slave transmitter will operate when
in trainer mode.

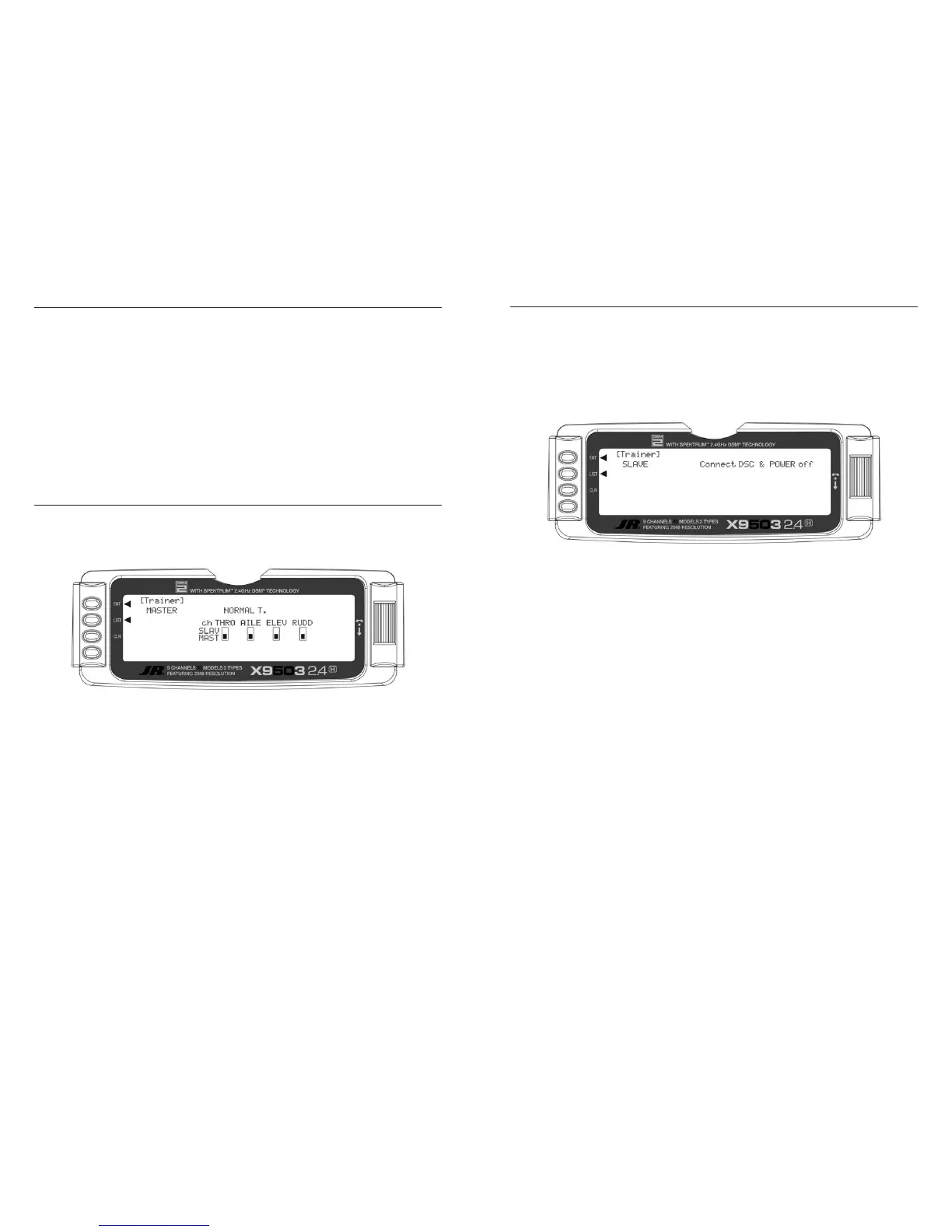

X9503 2.4 USED AS MASTER (INSTRUCTOR) – (Trainer System)
When all channel selectors are in the MAST position,
NORMAL appears on the display and all 4 channels
are transferred to the student when the trainer switch is
depressed.
When all channel selectors are in the MAST position,
the slave system must be programmed for the model,
meaning all programming necessary for the model must
be programmed in both the master and the slave systems.
Also when all the channel selectors are in the MAST
position, the slave system should be left in normal default
MASTER mode. To transfer only certain channels to the
student, highlight and select the channels that you will
transfer, moving the indicator for these channels to the
SLAV position for these channels. When less than all
channels are selected as SLAV, PROGRAM T appears
on the display indicating that the Trainer System has
been programmed to transfer only selected channels.
When the channel selectors are in the SLAV position, all
programming of the master system will be used, and only
the stick movements of the 4 primary channels are used
from the slave system when control is given to the slave
transmitter. In this case, the slave system does not need
to be programmed for the model. Also the slave system
should be set to Slave mode in its trainer system. The
X9503 2.4 is now ready to be the Master or instructor
transmitter. Depress the trainer switch to transfer control
to the student. Control will remain transferred until the
trainer switch is released.
X9503 2.4 USED AS SLAVE (STUDENT) – (Trainer System)
Highlight and select MASTER and the display switches
to SLAVE. A message appears instructing to Connect
DSC & POWER off. Make sure the transmitter power
switch is in the OFF position and the trainer cord is
connected between the 2 transmitters. If the master
system is an XP9303, X9303 2.4, X9503 2.4, or 12X and
the individual channels are not selected in the master
system’s trainer function, leave the slave system’s trainer
function in the default MASTER setting. In this case,
both the master and the slave systems must be fully
programmed and set up to fly the model including all
servo reversing, travel adjust, program mixes and all other
necessary programming.
You can now use the X9503 as the Slave transmitter.
