4. Select switch. Scroll down, highlight, and press SW
SELECT. The Box displays the activated Flight Modes.
Move the Selector to highlight each of the Flight
Modes, and press to select ON or OFF for the mix in
each of the Flight Modes. For this example, the Mix
will be set to the ON position for Flight Modes NRM,
ST1, ST2, and HLD.

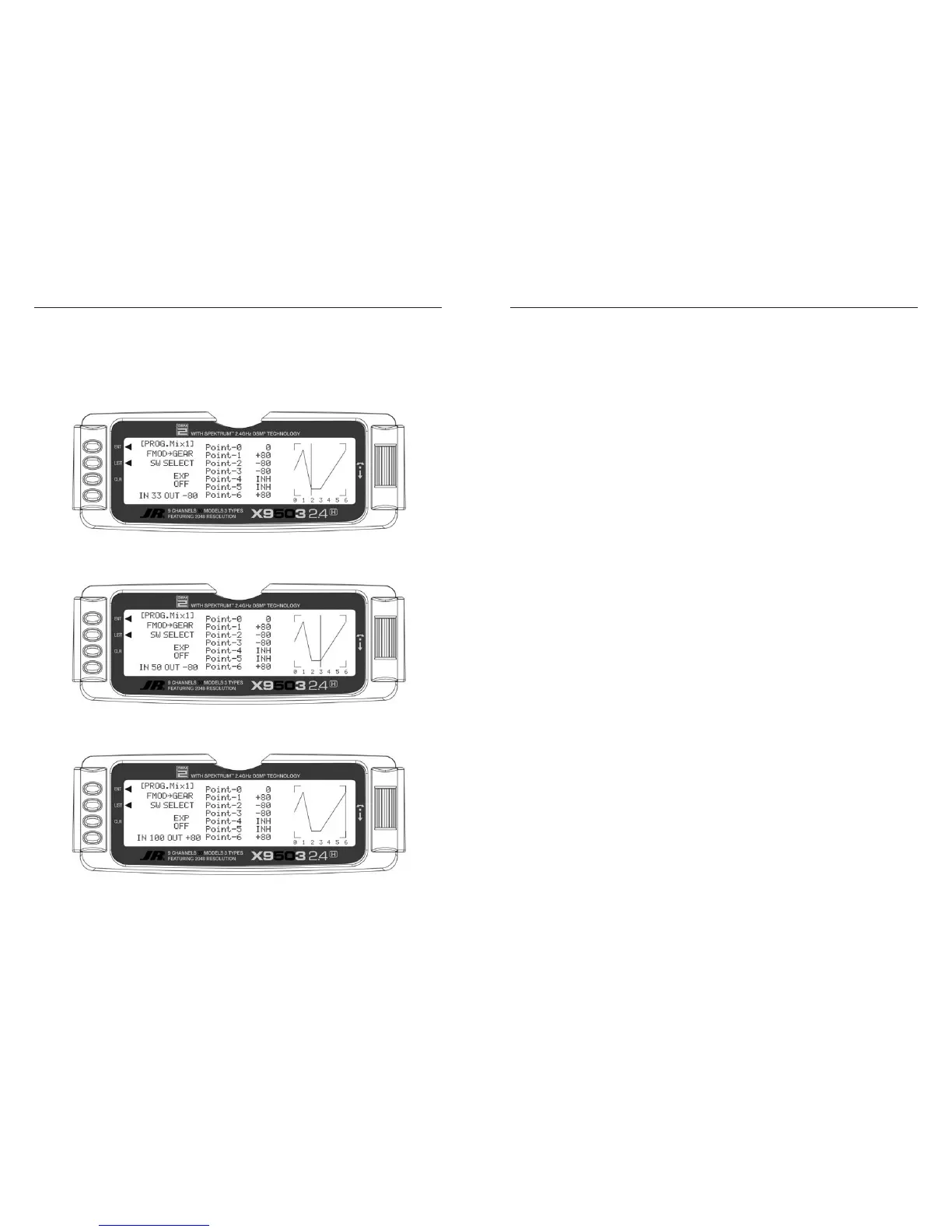

Flight Mode Switch in ST1 Position
Flight Mode Switch in ST2 Position
Flight Mode Switch in Hold Position
5. Set Points for Travel and Direction. Seven points will
display. A negative value at a point typically indicates
a Gear Up movement at that point and a positive value,
a Gear Down movement. Reverse the direction of travel
(Up Gear vs. Down Gear) by changing values from
negative (-) to positive (+) (moving the point values
above and below the 0% line).
Set the points initially to the following values.
Point-0 -0%
Point-1 +80% (Normal Mode, Gear Down)
Point-2 -80% (Stunt 1, Gear Up)
Point-3 -80% (Stunt 2, Gear Up)
Point-4 INH (Stunt 3 if Activated)
Point-5 INH (Stunt 4 if Activated)
Point-6 +80% (Throttle Hold, Gear Down)
7. EXP (Expo). With this mixing example, it is not
necessary to activate the Expo option.
8. Verify Operation. Power up the receiver, making sure
that the heli is elevated for the first time in case the
Gear is functioning in the opposite direction desired.
Move the Flight Mode and Throttle Hold switches,
and note the position (Up or Down) of the retracts. If
the retracts function in the opposite direction desired,
then enter the mix again and change the value from a +
to a -, or a – to a + as needed and retest.
