JR X9503 2.4 User Manual

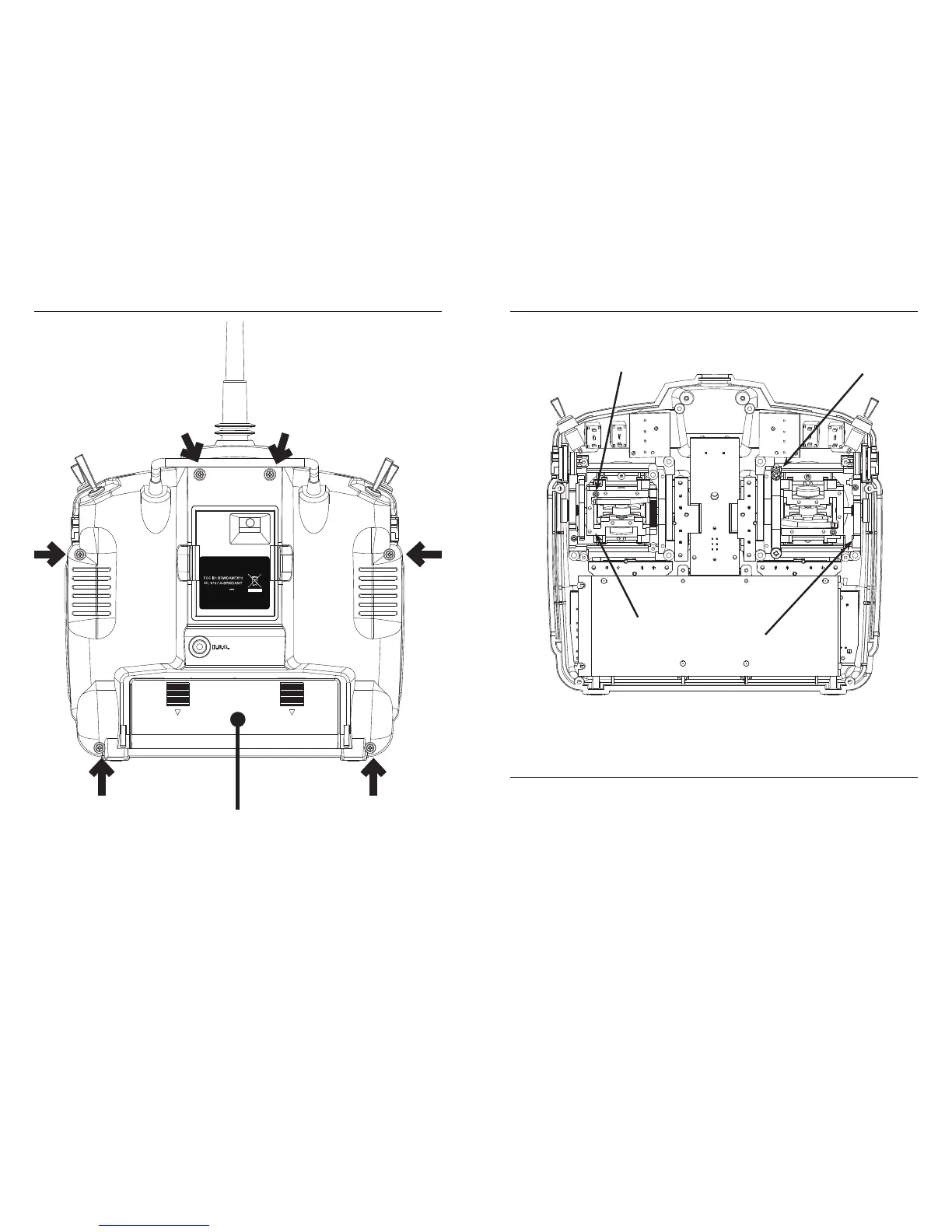

X9503 2.4 Transmitter Features (Rear) X9503 2.4 Transmitter Features (Internal)
Control Stick Tension Adjustment
G-14
G-15
Remove the six transmitter screws from the back cover as
shownonpageG-14.Removethetransmitterback,being
careful not to cause damage to any components.
Adjust each gimbal tension screw for desired tension
(counterclockwise to loosen stick tension; clockwise to
tightensticktension).Whenadjustingthethrottleratchet
tension, make sure that the adjusting screw does not
touch the PC board after adjustment is complete.
Model No. X9503
Horizon Hobby, Inc. Made in Malaysia
U.S. Patent 7,391,320
DC 11.6V
Battery Cover
CAUTION:THEBATTERYCONNECTIONISKEYEDSOTHATITCANONLY
BEPLUGGEDINONEDIRECTION.DONOTFORCE.
Back of Transmitter (Mode 2)
THROTTLETENSIONSCREW
RUDDERTENSIONSCREW
ELEVATORTENSIONSCREW
AILERONTENSIONSCREW
