WARNING!
Incorrect fork adjustments can cause accidents
To lift the load securely, the fork tines should be as far apart as possible and centrally
positioned with respect to the fork carriage. The load centre of gravity must be
centrally aligned between the forks.
WARNING!
Unsecured forks can cause accidents
The forks must be prevented from falling with the extension safety
mechanisms (178). The truck must not be operated without an extension safety
mechanism (178).
u
Check the extension safety mechanisms (178) are present.
u
Ensure the extension safety mechanisms (178) are secure.

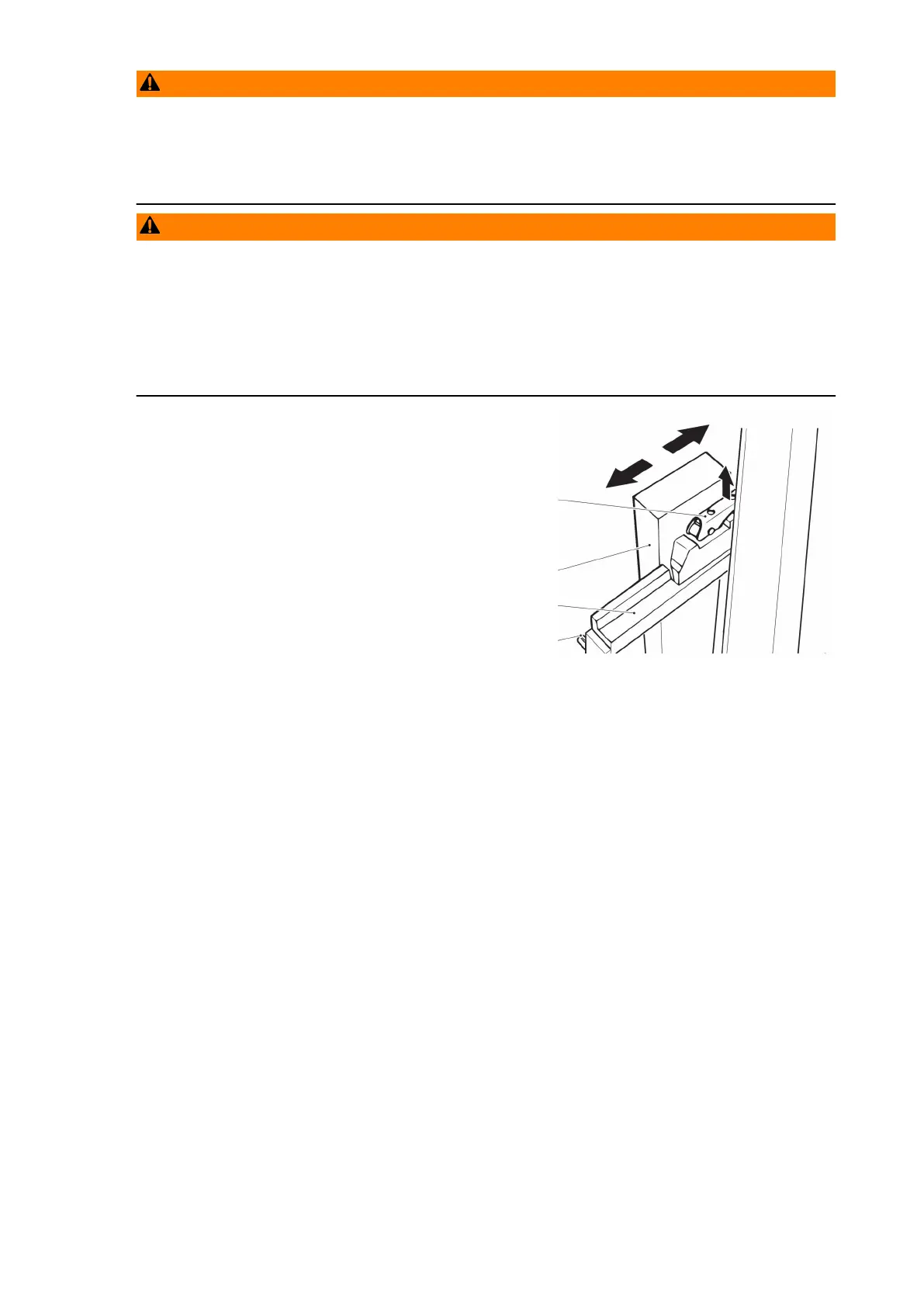

Adjusting the forks
Requirements
– Park the truck securely, see page 191.
Procedure
• Lift up the locking lever (177).
• Push the forks (28) into the correct
position on the fork carriage (19).
• Swing the locking lever (177) down and
move the fork tines until the locking pin
(28) engages in a slot.
The forks are now adjusted.
194
04.19 en-GB
