7.5 Displays on the seven segment display and indicator light (LED)
Z
The seven segment display and the indicator light (LED) on the laser scanner act as
the display for the operator and the customer service engineer.

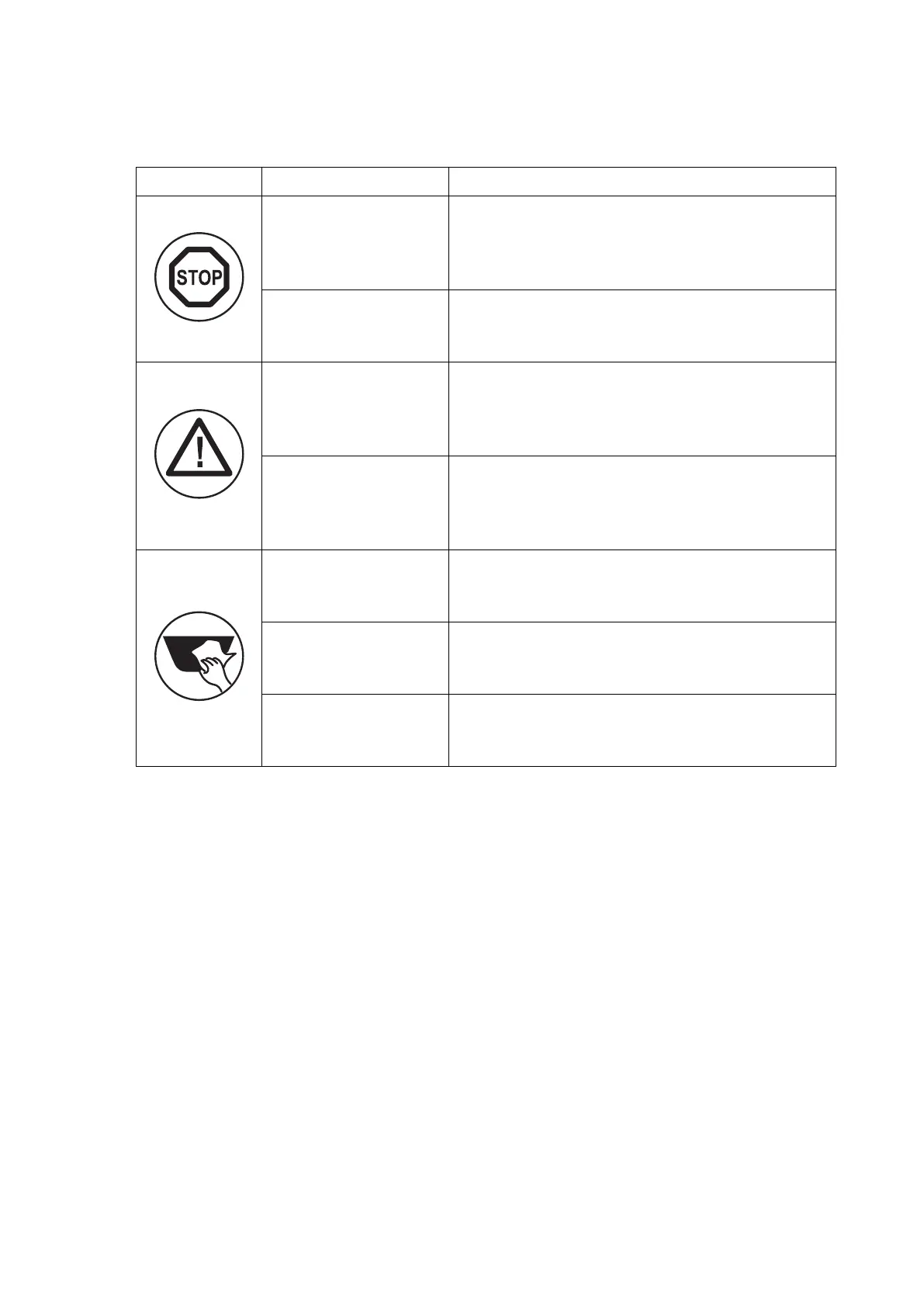

Display LED signal Description
Off
– Protection field clear, no object in
protection field
– The truck can move at the maximum
speed setting.
Lit
– Protection field infringement, object in
protection field
– The truck stops.
Off
– Warning field clear, no object in warning
field
– The truck can move at the maximum
speed setting.
Lit
– Warning field infringement, object in
warning field
– The truck decelerates to 2,5 km/h and will
only travel at this speed.
Off
– Front screen clean.
– The truck can move at the maximum
speed setting.
Lit
– Front screen contaminated.
– Operation inhibited.
– Clean the front screen (see page 240).
flashes at 0.5 Hz
(one second off, one
second on)
– Front screen contaminated.
– Operation still enabled.
– Clean the front screen (see page 240).
