5.3 Truck capacity plate
WARNING!
Replacing the forks can cause accidents
If you replace the forks with ones that differ from the originals, the capacity will
change.
u
When adding forks that differ from the ones originally supplied, an additional
capacity plate must be attached to the truck. Example: Fitting longer forks to the
truck
u
Adding forks that differ from the ones originally supplied requires the manufacturer
s approval.
46

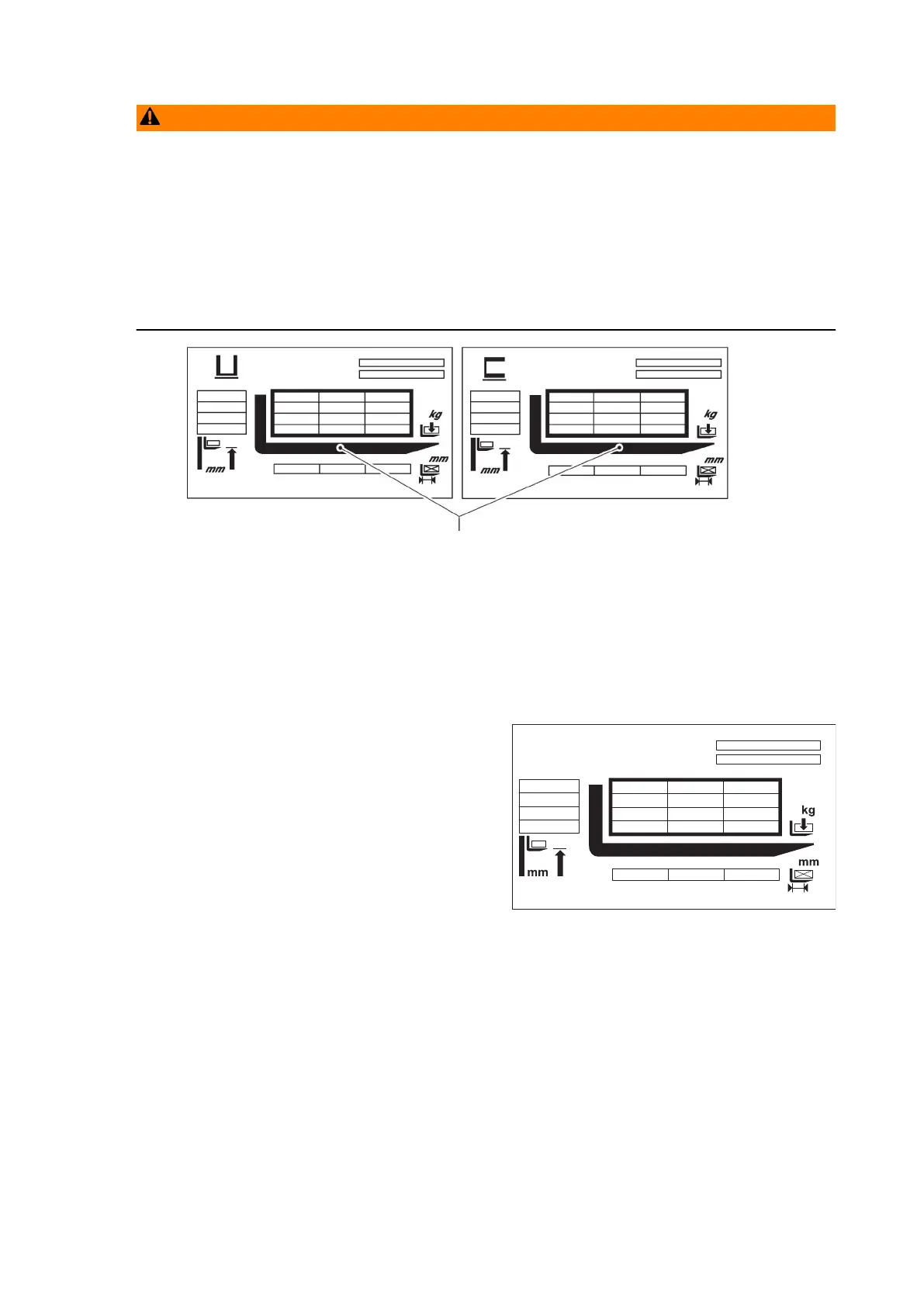

The capacity plate (46) gives the capacity Q (kg) of the truck for an upright mast.
The maximum capacity is shown as a table with a given load centre of gravity D
(mm) and the required lift height h
3
(mm).
The capacity plate (46) of the truck indicates the truck's capacity with the forks as
originally supplied.
Example of how to calculate the
maximum capacity
With a load centre distance (D) of 600 mm
and a maximum lift height of (h
3
) 3600 mm
the max. capacity (Q) is 1105 kg.
500 600 700
4250
3600
2900
850
1105
1250
850
1105
1250
600
850
850
46
04.19 en-GB
