3.3 Transport retainer for basic truck with the mast assembled
Item Component
80 Support to protect the fastening belt from sharp edges
WARNING!
Torn fastening belts can cause accidents
Fastening belts can tear when routed over sharp edges.
u
Do not route the fastening belts over sharp edges. If this is not possible, protect
the fastening belts with suitable supports such as foam.
u
Protect fastening belts routed over lift chains with a suitable support such as foam.
WARNING!
Improper securing during transport can result in accidents
Improper securing of the truck during transport can result in serious accidents.
u
To attach the truck to the lorry or trailer secure fastening belts on either side to at
least two different fastening rings.

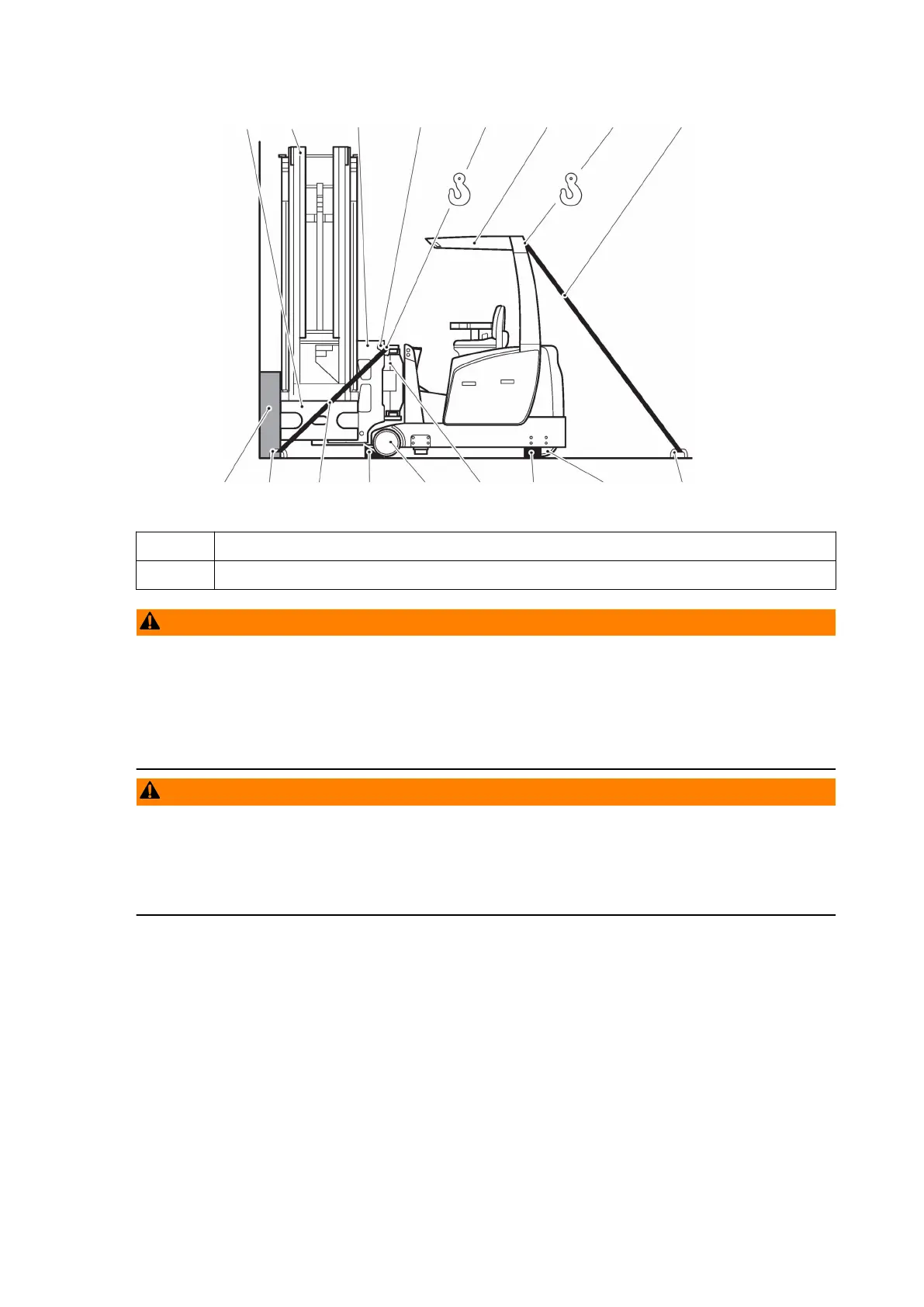

Securing the basic truck with the mast assembled for transport
Requirements
– Position the support arms (18) in the middle of the swivel traverse frame (25), see
page 177.
– Park the truck securely, see page 191.
– Disconnect the battery if this is to be transported in the truck.
– Removing the tilt safety mechanism.
– Removing the forks.
– Load the truck correctly onto the lorry or trailer.
Tools and Material Required
– Lashing strap with a rated capacity of > 5 t..
– Two hard wooden blocks with identical dimensions and composition.
