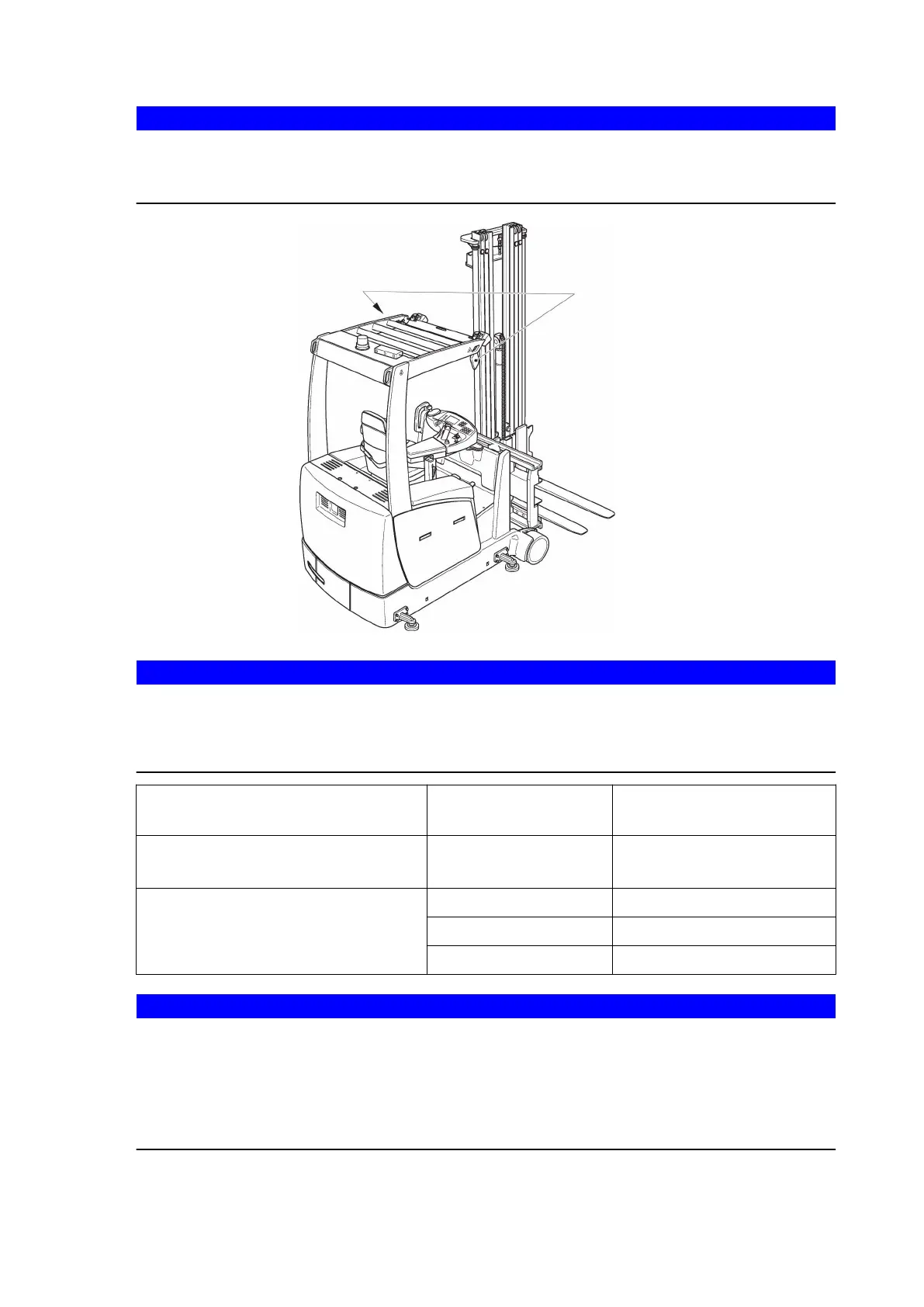

8.12
Rear view mirror (o)
NOTICE
Use the mirror only to observe the traffic behind you. Should you need visibility aids
(mirrors, monitors etc.) to ensure adequate visibility, practice working with them
beforehand.
NOTICE
Note the safety clearances between the truck and rack
Refer to the following table for the safety clearances required by the manufacturer
depending on the type of guidance system and the lift height (h
3
).
Truck guidance in the narrow
aisle
Lift height (h
3
)
Safety clearance
Wire-guided truck
depending on the lift
height (h
3
)
125 mm
Rail-guided truck
to 4000 mm 90 mm
to 6000 mm 100 mm
from 6000 mm 125 mm
NOTICE
Risk of collision if the rear-view mirror is incorrectly adjusted
Incorrectly adjusted rear-view mirrors can collide with the racking or the goods when
operating in the narrow aisle.
u
Adjust rear-view mirrors so that the clearances between the truck and the racking
specified by EN 1726-2 item 7.3.2 are maintained.
The rear view mirror (16) is fitted with a swivel link. This allows the driver to adjust
the rear view mirror (16) to his or her individual needs.
310
04.19 en-GB
