Safe lifting of the battery by crane
Requirements
– Remove the battery from the truck's battery
compartment, see page 82.
Tools and Material Required
– Crane lifting gear, for capacity details refer to the
battery data plate.
– Pallet
– Lashing strap
Procedure
Z
The weight of the battery to be taken into account
when loading by crane can be taken from the battery
data plate.

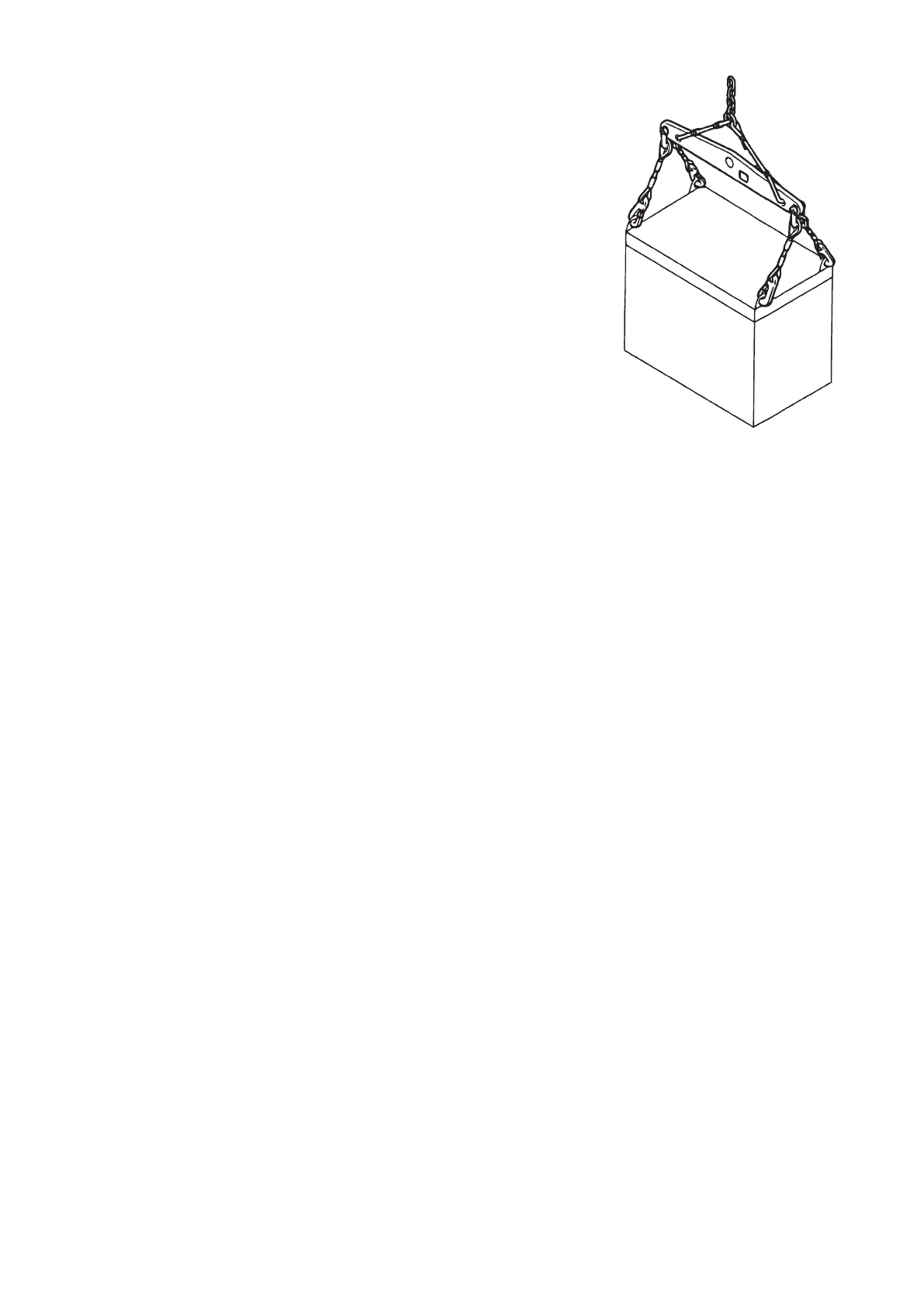

Lifting the battery with crane lifting gear:
• Attach the lifting gear to the four eyes on the battery tray (for weight refer to the
battery rating plate).
The battery can now be raised and loaded with a crane.
• Loading the battery onto a pallet:
• Place the battery on a pallet.
• Secure the battery to the pallet with two lashing straps.
The battery can now be raised and loaded with a forklift truck.
59
04.19 en-GB
