NOTE: Figure 33 on page 133 shows the bottom panel of an EX2300-C
switch when the switch is viewed from the top. The internal components
and top cover are not shown.

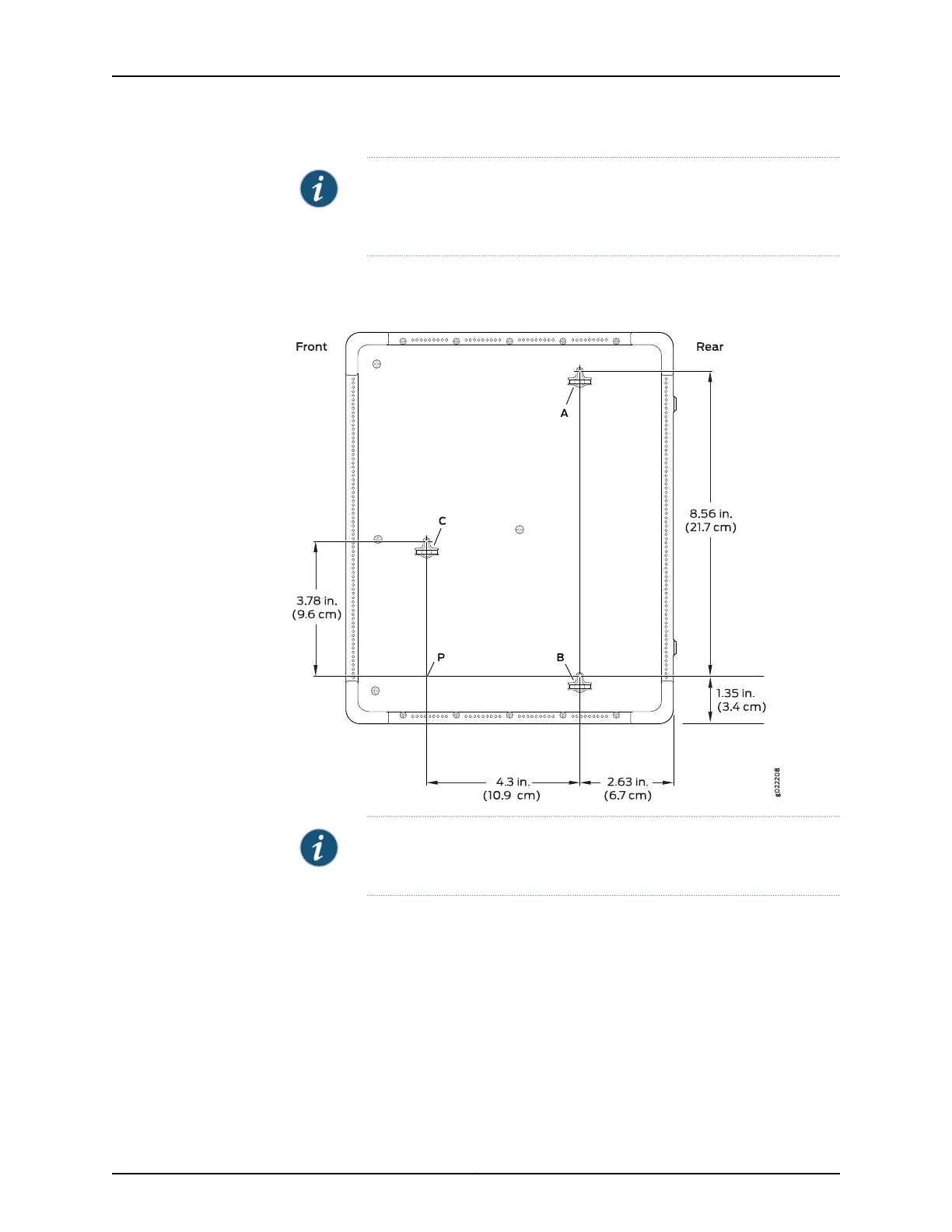

Figure 33: Measurements for Installing Mounting Screws for Mounting
EX2300-C Switches Under a Desk or Other Level Surface by Using Screws
NOTE: Tighten the screws only part way in, leaving about 1/4 in. (6 mm)
distance between the head of the screw and the desk or the level surface.
a. Drill a hole A and install a mounting screw.
b. Drill a hole B at a distance of 8.56 in. (21.7 cm) on a level line from hole A and install
a mounting screw.
133Copyright © 2017, Juniper Networks, Inc.
Chapter 12: Installing the Switch
