Juniper EX2300-C - Figure 50: Attaching Rubber Pads to an EX2300-C Switch; Figure 51: Attaching the Magnet Mount Sheet to an EX2300-C Switch

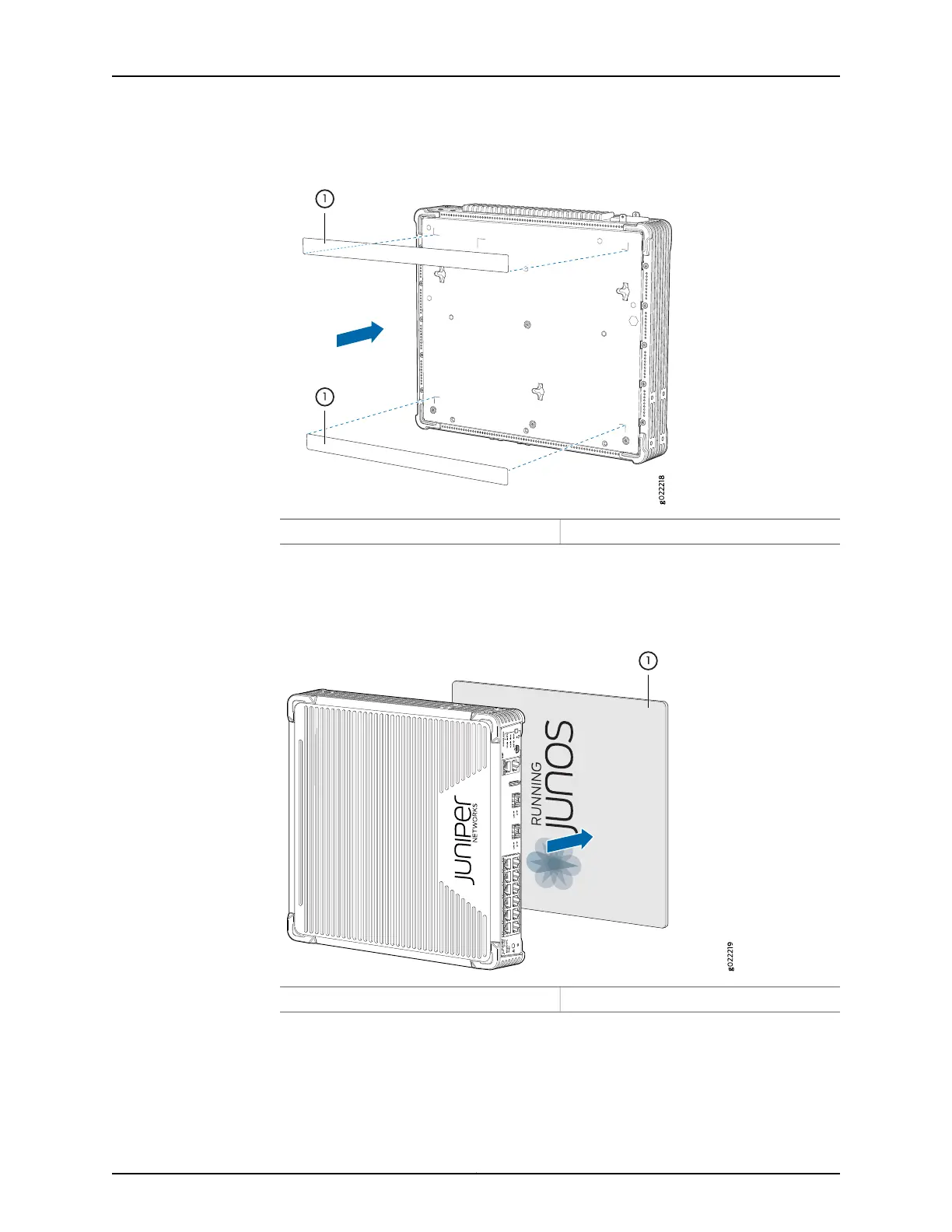

Figure 50: Attaching Rubber Pads to an EX2300-C Switch
1— Self adhesive rubber pads
5. Attach the surface of the magnet mount sheet that has the Running Junos logo to the
rubber pads (see Figure 51 on page 151).
Figure 51: Attaching the Magnet Mount Sheet to an EX2300-C Switch
1— Magnet mount sheet
6. Mount the switch along with the magnet mount sheet on the ferrous surface on which
you want to mount the switch (see Figure 52 on page 152).
