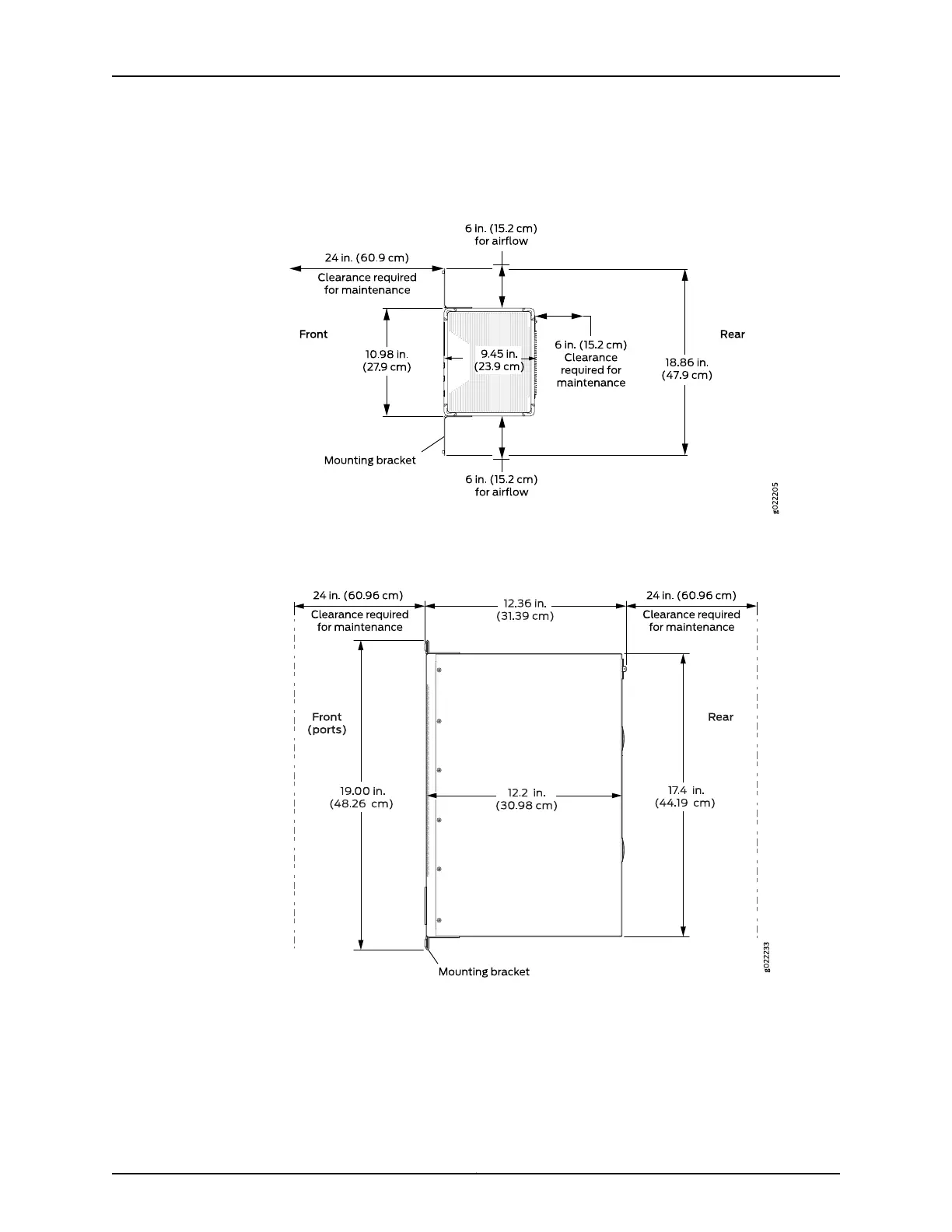

Figure 23: Clearance Requirements for Airflow and Hardware Maintenance
for EX2300-C Switches
Figure 24: Clearance Requirements for Airflow and Hardware Maintenance
for EX2300 Switches Except EX2200-C Switches
The power cord retainer clips extend out of the rear of the chassis by 3 in. (7.6 cm).
•
Allow at least 6 in. (15.2 cm) of clearance on the side between devices that have fans
installed. Allow 2.8 in. (7 cm) between the side of the chassis and any
non-heat-producing surface such as a wall. For the cooling system to function properly,
the airflow around the chassis must be unrestricted.
