Juniper EX2300-C Hardware Guide

To connect AC power to the switch:
1. Squeeze the two sides of the power cord retainer clip and insert the L-shaped ends
of the wire clip into the holes in the bracket above and below the AC power cord inlet
on the rear panel (see Figure 56 on page 162 and Figure 57 on page 162).
The power cord retainer clip extends out of the chassis by 3 in. (7.62 cm).
2. Locate the power cord or cords shipped with the switch; the cords have plugs
appropriate for your geographical location. See “AC Power Cord Specifications for
EX2300 Switches” on page 68.
WARNING: Ensure that the power cord does not drape where people can
trip on it or block access to switch components.
3. Insert the coupler end of the power cord into the AC power cord inlet on the rear panel.
4. Push the power cord into the slot in the adjustment nut of the power cord retainer
clip. Turn the nut until it is tight against the base of the coupler and the slot in the nut
is turned 90° from the top of the switch (see Figure 58 on page 163 and
Figure 59 on page 163).
5. If the AC power source outlet has a power switch, set it to the off (0) position.
6. Insert the power cord plug into an AC power source outlet.
7. If the AC power source outlet has a power switch, set it to the on (|) position.

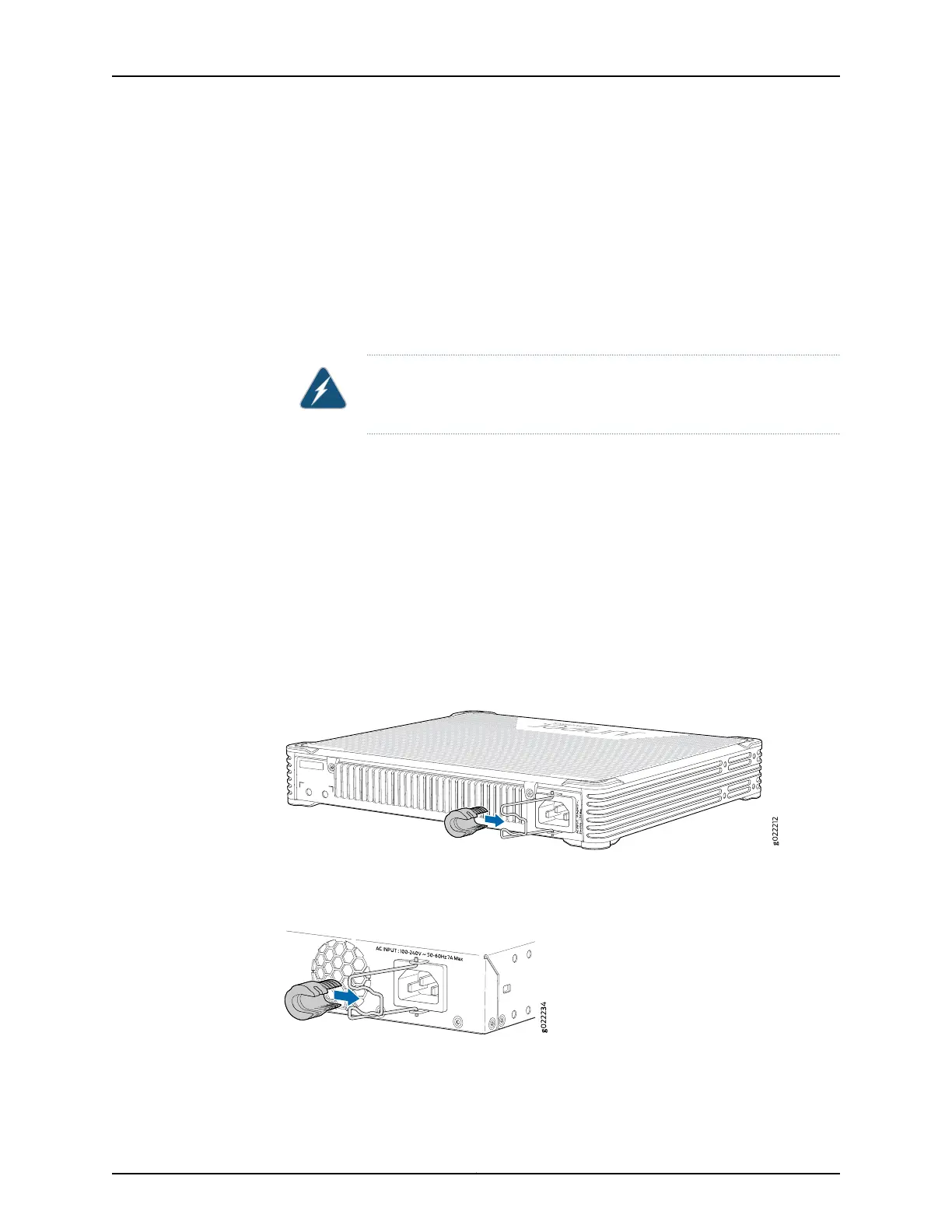

Figure 56: Connecting an AC Power Cord Retainer Clip to the AC Power
Cord Inlet on EX2300-C Switches
Figure 57: Connecting an AC Power Cord Retainer Clip to the AC Power
Cord Inlet on EX2300 Switches Except EX2300-C Switches
Copyright © 2017, Juniper Networks, Inc.162
EX2300-C and EX2300 Switches Hardware Guide

Juniper EX2300-C Specifications

General

Safety	UL-UL60950-1, C-UL CAN/CSA 22.2 No.60950-1, TUV/GS EN 60950-1, CB-IEC60950-1, EN 60825-1
Form factor	1U
Product color	Black
Rack mounting	Yes
Electromagnetic compatibility	FCC 47CFR 15 A, EN 55022 A, ICES-003 A, VCCI A, AS/NZS CISPR 22 A, EN 55024, EN 300386, CE
Console port	USB
SFP+ module slots quantity	2
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	12
Number of VLANs	4093
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3z
Virtual LAN features	Tagged VLAN, Port-based VLAN
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Power consumption (max)	20 W
Memory type	DRAM
Noise level	0 dB
Flash memory	2000 MB
Processor frequency	1250 MHz
Virtual stacking (units)	4
Operating altitude	0 - 1524 m
Non-operating altitude	1524 - 4877 m
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	0 - 95 %
Operating relative humidity (H-H)	10 - 85 %
Throughput	47 Mpps
Jumbo frames	9216
MAC address table	16000 entries
DHCP features	DHCP server, DHCP client
Authentication	MAC-based authentication, Port-based authentication
Security algorithms	802.1x RADIUS, HTTPS, SNMP, SSH-2
Fiber ethernet cabling technology	1000BASE-X
Switch type	Managed
Switch layer	L2/L3

Weight and Dimensions

Depth	239 mm
Width	279 mm
Height	44 mm
Weight	2480 g
