Table 8: Status LED on the Management Port on EX2300 Switches
State and DescriptionColorLED
Indicates the speed. The speed indicators are:
•
Off—Link speed is 10 Mbps.
•
Blinking—Link speed is 100 Mbps.
•
On Steadily—Link speed is 1000 Mbps.
GreenStatus
Related
Documentation
Connecting a Device to a Network for Out-of-Band Management on page 167•
RJ-45 Network Port LEDs and Uplink Port LEDs in EX2300 Switches
Each RJ-45 network port and uplink port on the front panel of an EX2300 switch has two
LEDs that indicate link/activity and port status. See Figure 16 on page 19,
Figure 17 on page 19, and Figure 18 on page 19.

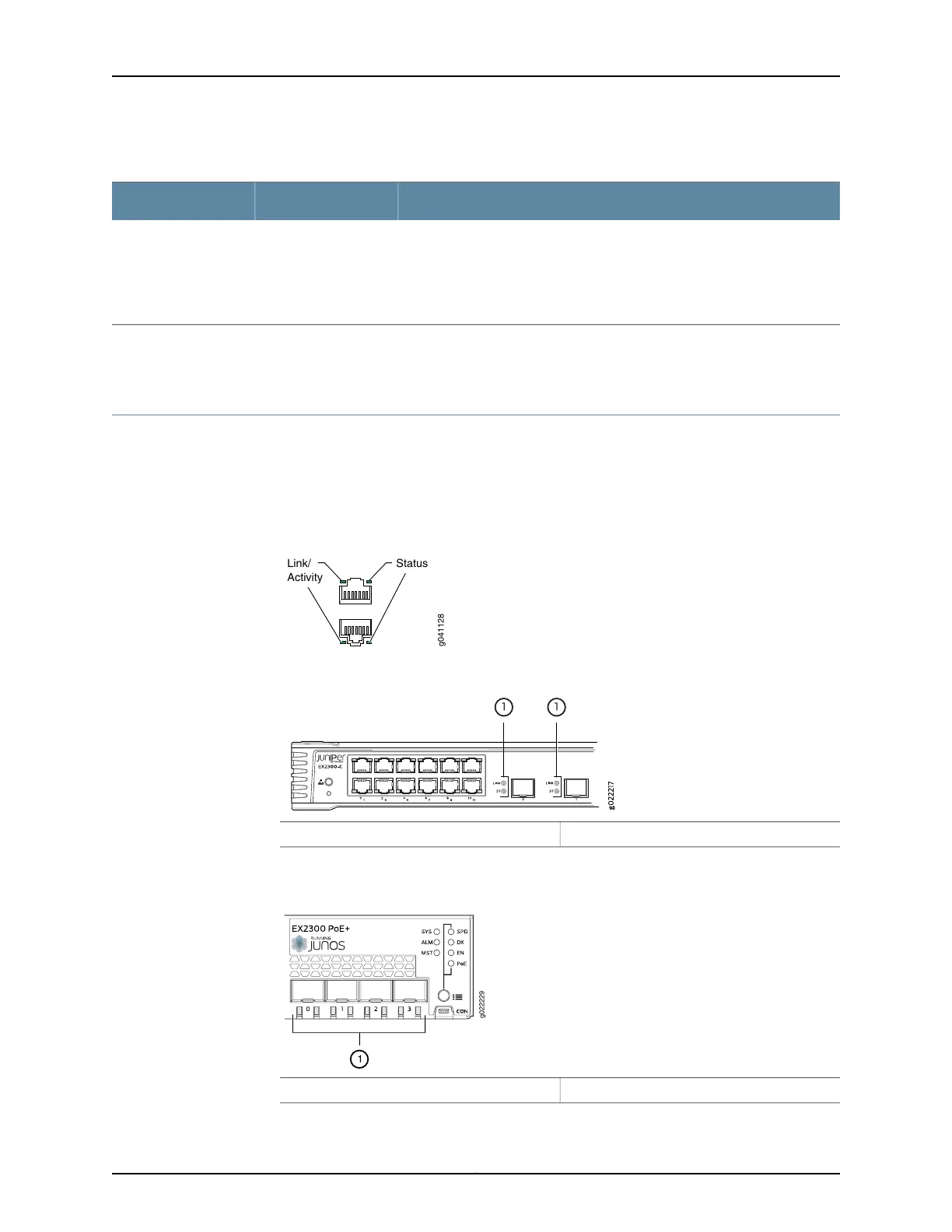

Figure 16: LEDs on RJ-45 Network Ports
g041128
Link/
Activity
Status
Figure 17: LEDs on the Uplink Ports in EX2300-C Switches
1— LEDs on the uplink ports
Figure 18: LEDs on the Uplink Ports in an EX2300 Switches Except the
EX2300-C Switches
g022229
1
1— LEDs on the uplink ports
19Copyright © 2017, Juniper Networks, Inc.
Chapter 2: Chassis Components and Descriptions

Juniper EX2300-C Specifications

General

Safety	UL-UL60950-1, C-UL CAN/CSA 22.2 No.60950-1, TUV/GS EN 60950-1, CB-IEC60950-1, EN 60825-1
Form factor	1U
Product color	Black
Rack mounting	Yes
Electromagnetic compatibility	FCC 47CFR 15 A, EN 55022 A, ICES-003 A, VCCI A, AS/NZS CISPR 22 A, EN 55024, EN 300386, CE
Console port	USB
SFP+ module slots quantity	2
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	12
Number of VLANs	4093
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3z
Virtual LAN features	Tagged VLAN, Port-based VLAN
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Power consumption (max)	20 W
Memory type	DRAM
Noise level	0 dB
Flash memory	2000 MB
Processor frequency	1250 MHz
Virtual stacking (units)	4
Operating altitude	0 - 1524 m
Non-operating altitude	1524 - 4877 m
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	0 - 95 %
Operating relative humidity (H-H)	10 - 85 %
Throughput	47 Mpps
Jumbo frames	9216
MAC address table	16000 entries
DHCP features	DHCP server, DHCP client
Authentication	MAC-based authentication, Port-based authentication
Security algorithms	802.1x RADIUS, HTTPS, SNMP, SSH-2
Fiber ethernet cabling technology	1000BASE-X
Switch type	Managed
Switch layer	L2/L3

Weight and Dimensions

Depth	239 mm
Width	279 mm
Height	44 mm
Weight	2480 g
