Figure 25 on page 63 shows the airflow in EX2300 switches with 24 ports with PoE
capability. Figure 26 on page 64 shows the airflow in EX2300 switches with 48 ports
with PoE capability. Figure 27 on page 64 shows the airflow in EX2300 switches without
PoE capability.

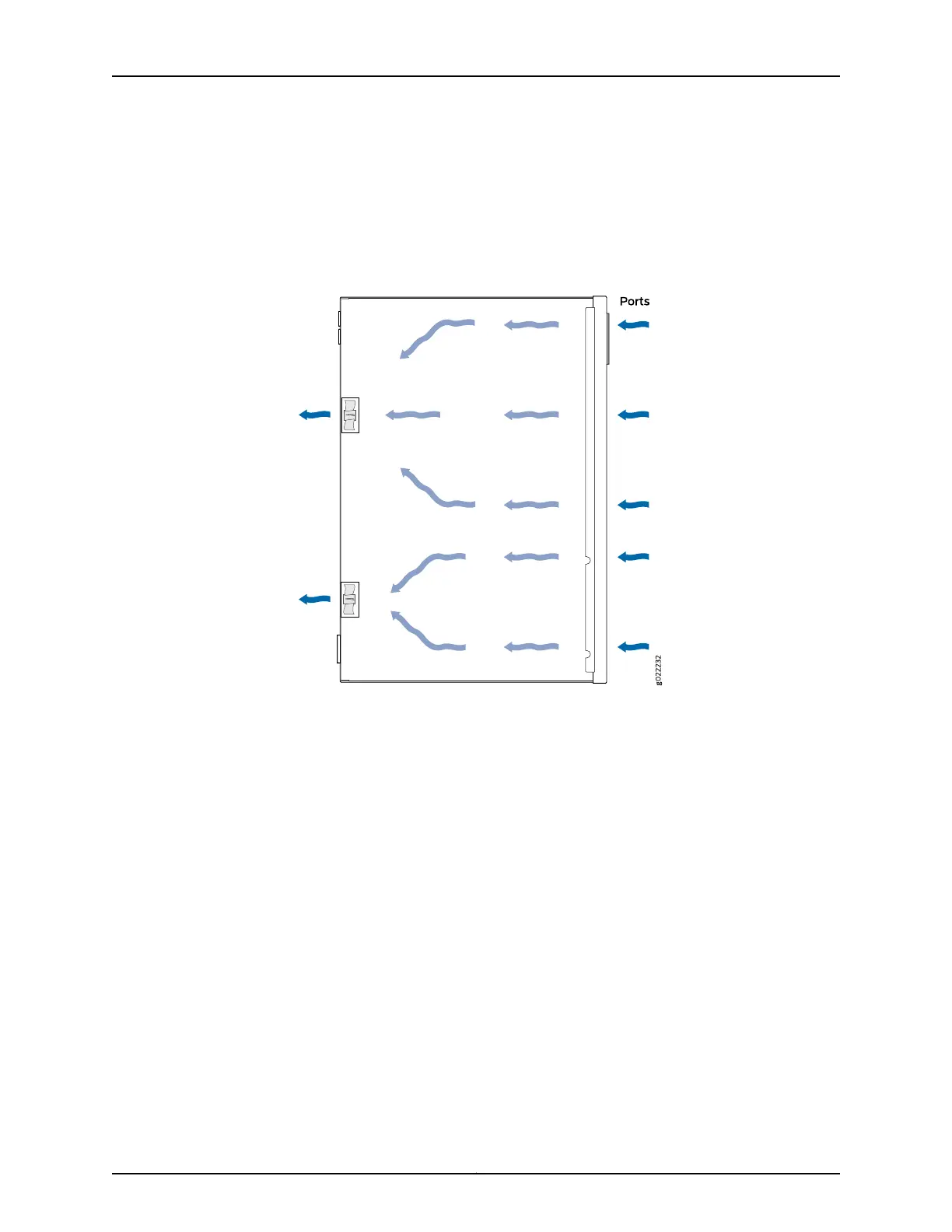

Figure 25: Airflow Direction in EX2300 Switches with 24 Ports with PoE
Capability
63Copyright © 2017, Juniper Networks, Inc.
Chapter 6: Preparation Overview
