Juniper EX3300 Series User Manual

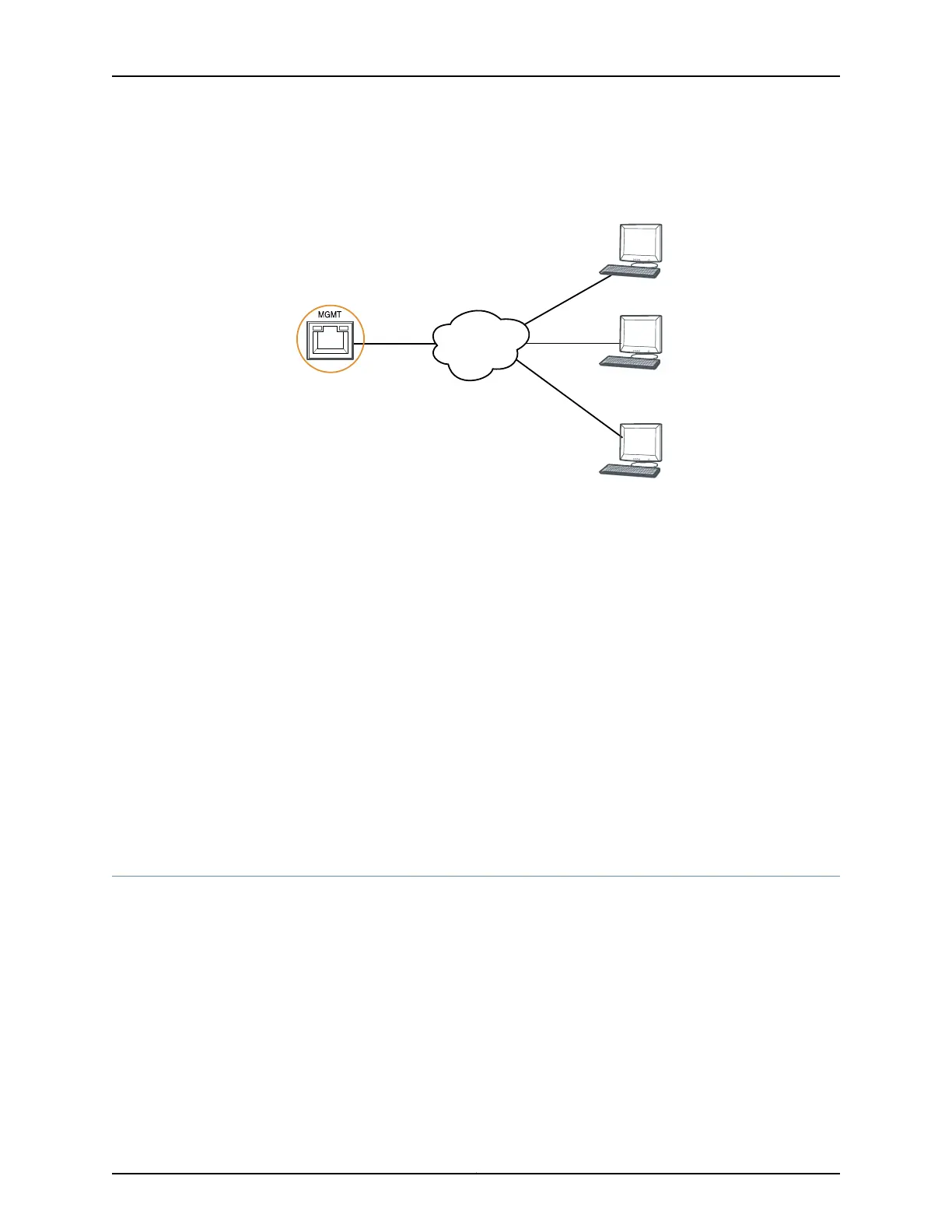

Figure 39: Connecting an EX Series Switch to a Network for Out-of-Band
Management
g020548
Management PC
Management PC
Management PC
To Management port
(on the switch)
Management
network
Related
Documentation
Connecting an EX Series Switch to a Management Console on page 96•
• Management Port Connector Pinout Information for an EX2200 Switch
• Management Port Connector Pinout Information for an EX3200 Switch
• Management Port Connector Pinout Information for an EX3300 Switch on page 28
• Management Port Connector Pinout Information for an EX4200 Switch
• Management Port Connector Pinout Information for an EX4500 Switch
• Management Port Connector Pinout Information for an EX6200 Switch
• Management Port Connector Pinout Information for an EX8200 Switch
• Management Port Connector Pinout Information for an XRE200 External Routing
Engine
• Cables Connecting the EX6200 Switch to Management Devices
• Cables Connecting the EX8200 Switch to Management Devices
Connecting an EX Series Switch to a Management Console
This topic describes the process of connecting an EX Series Switch to a Management
Console.
1.
Connecting an EX Series Switch to a Management Console Using RJ-45 Console
Port on page 97
2.
Connecting an EX2200 Series Switch to a Management Console Using Mini-USB
Type-B Console Port on page 98
Copyright © 2011, Juniper Networks, Inc.96
Complete Hardware Guide for EX3300 Ethernet Switches

Juniper EX3300 Series Specifications

General

Layer Support	Layer 2 and Layer 3
JUNOS OS	Yes
Ports	24 or 48 x 10/100/1000BASE-T ports
Uplink Ports	4 x 1GbE/10GbE SFP/SFP+ ports
Power Supply	AC or DC options
Stacking	Yes, up to 10 units
MAC Address Table Size	32, 000
Operating Humidity	10% to 90% non-condensing
PoE Support	Available on PoE models
Virtual Chassis	Yes, up to 10 units
Operating Temperature	32° to 104° F (0° to 40° C)
