Requirements for Mounting an EX3300 Switch on a Desktop or Wall
You can install the switch on a desktop or wall. When choosing a location, allow at least
6 in. (15.2 cm) of clearance between the front and back of the chassis and adjacent
equipment or walls.
Ensure that the wall onto which the switch is installed is stable and securely supported.
If you are mounting the switch in sheetrock (wall board with a gypsum plaster core) or
in wall board not backed by wall studs, use hollow wall anchors capable of supporting
the combined weight of two fully loaded chassis. Insert the screws into wall studs
wherever possible to provide added support for the chassis.
Use the wall-mount kit from Juniper Networks to mount the switch on a wall. The
wall-mount kit is not part of the standard package and must be ordered separately.
Related
Documentation
Clearance Requirements for Airflow and Hardware Maintenance for EX3300 Switches
on page 50
•
• Wall-Mounting Warning for EX3300 Switches on page 150
• Mounting an EX3300 Switch on a Desk or Other Level Surface on page 74
• Mounting an EX3300 Switch on a Wall on page 75
Clearance Requirements for Airflow and Hardware Maintenance for EX3300 Switches
When planning the site for installing an EX3300 switch, you must allow sufficient
clearance around the installed switch (see Figure 12 on page 50).

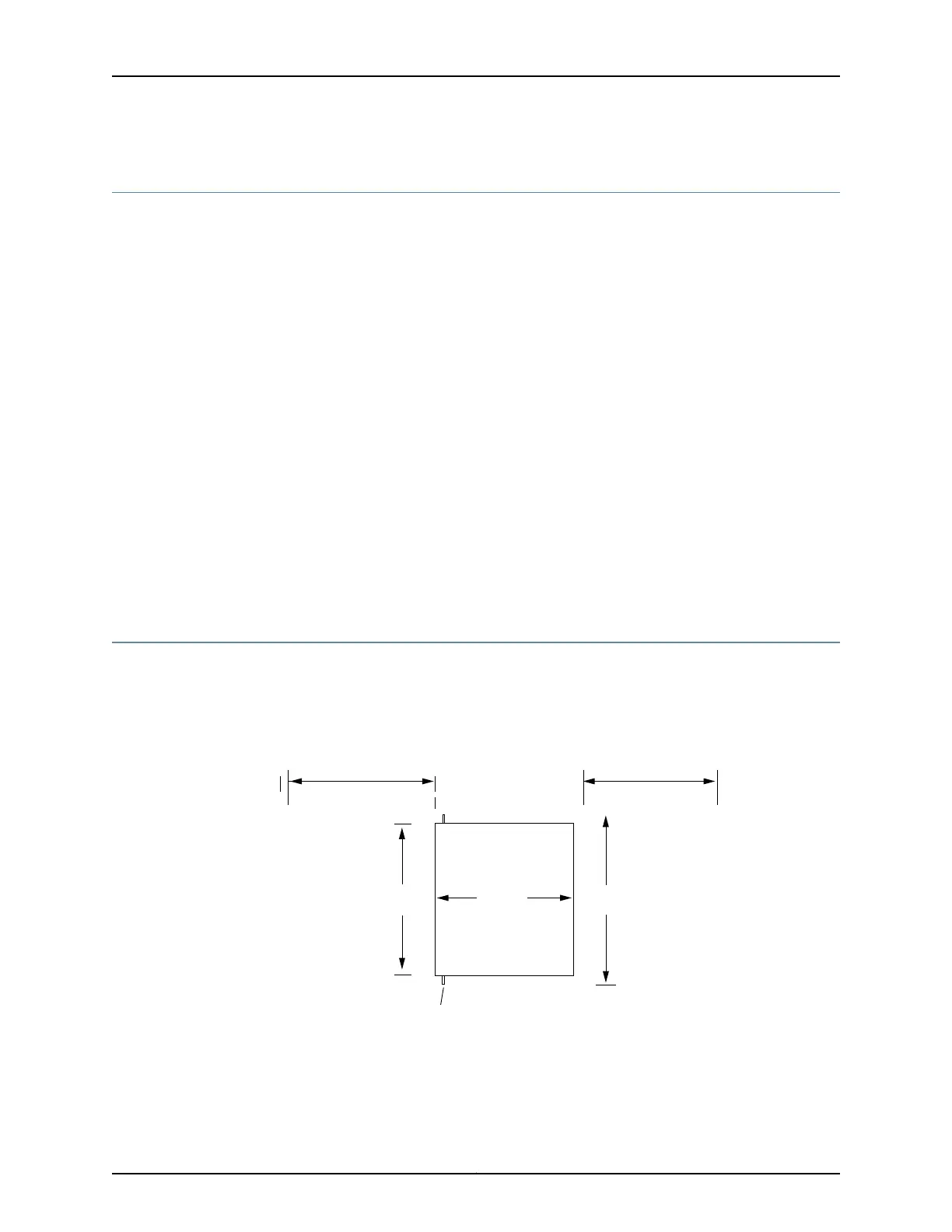

Figure 12: Clearance Requirements for Airflow and Hardware Maintenance
for EX3300 Switches
g021207
Mounting bracket
Rear
Front
17.5"
44.5 cm
12"
(30.5 cm)
Clearance requiredClearance required
for airflow and
maintenance
for airflow and
maintenance
24" (61 cm) 24" (61 cm)
19"
(48.2 cm)
The power cord retainer extends out of the rear of the chassis by 3 in. (7.62cm).
Copyright © 2011, Juniper Networks, Inc.50
Complete Hardware Guide for EX3300 Ethernet Switches
