Maschinenlärminformations-Verordnung - 3. GPSGV, der höchste Schalldruckpegel

beträgt 70 dB(A) oder weniger gemäss EN ISO 7779

Translation:

The emitted sound pressure is below 70 dB(A) per EN ISO 7779.

Documentation

Agency Approvals for EX Series Switches on page 175•

• Compliance Statements for EMC Requirements for EX Series Switches on page 176

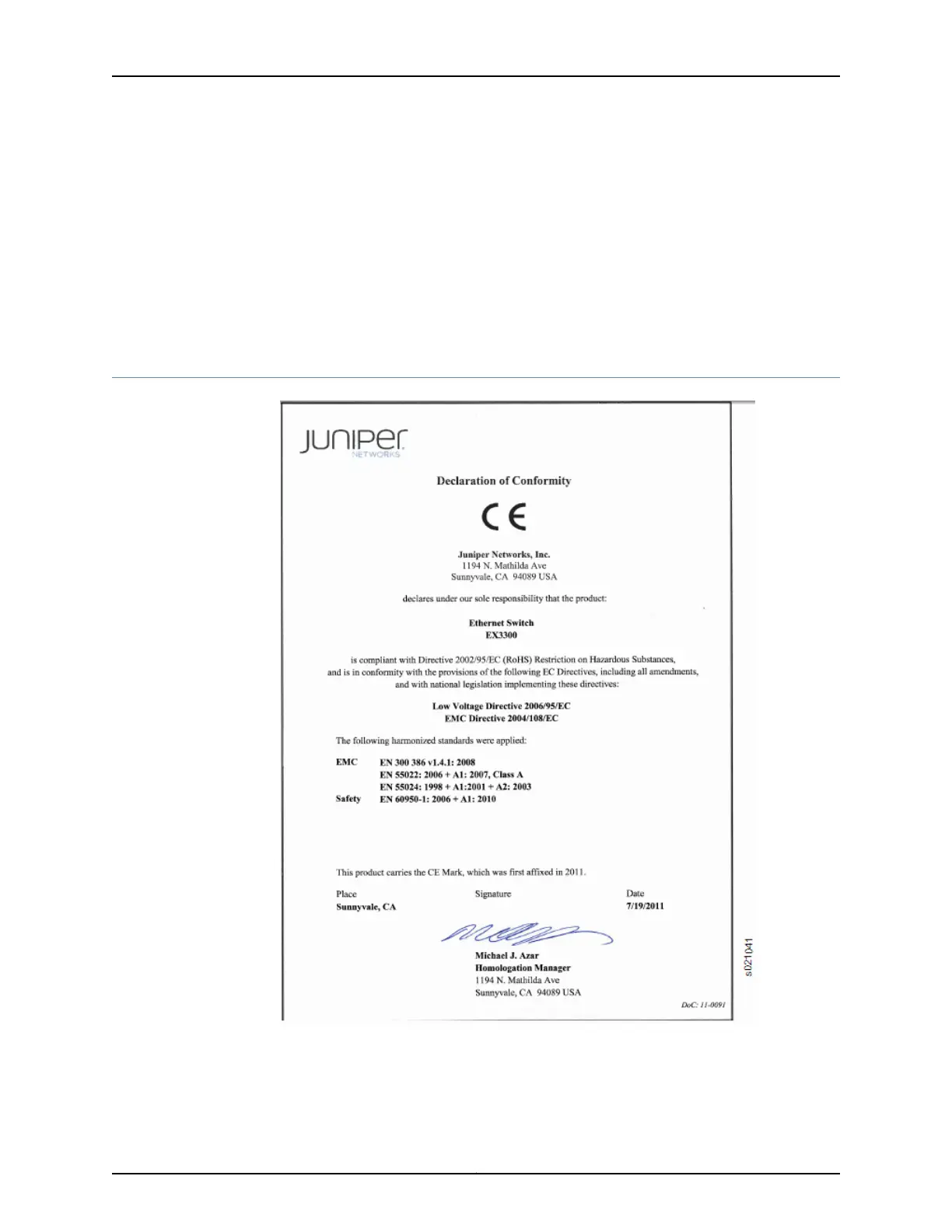

Declaration of Conformity for EX3300 Switches
