Table 11: SRX210 Services Gateway Front Panel Components
LEDs (continued)
UsageDescriptionComponent
The 3G ExpressCard LED
provides information on the
functioning of the
ExpressCard slot.
The 3G ExpressCard LED has the following indicator
colors:
•
Green and steadily on indicates that the
ExpressCard is plugged in and the data call is
established.
•
Red and steadily on:
•
Indicates that the ExpressCard plugged in is
faulty or not detected by the device.
•
Indicates that the ExpressCard is plugged in
but not registered with the network.
•
Amber and steadily on indicates that the
ExpressCard is plugged in and registered with
the network.
•
Off indicates that the ExpressCard is not plugged
in.
3G
ExpressCard
LED
Ethernet Port LEDs
On the SRX210 Services Gateway, each Gigabit Ethernet port and Fast Ethernet port has
two LEDs.Figure 8 on page 20 shows the SRX210 Services Gateway Ethernet port LEDs.

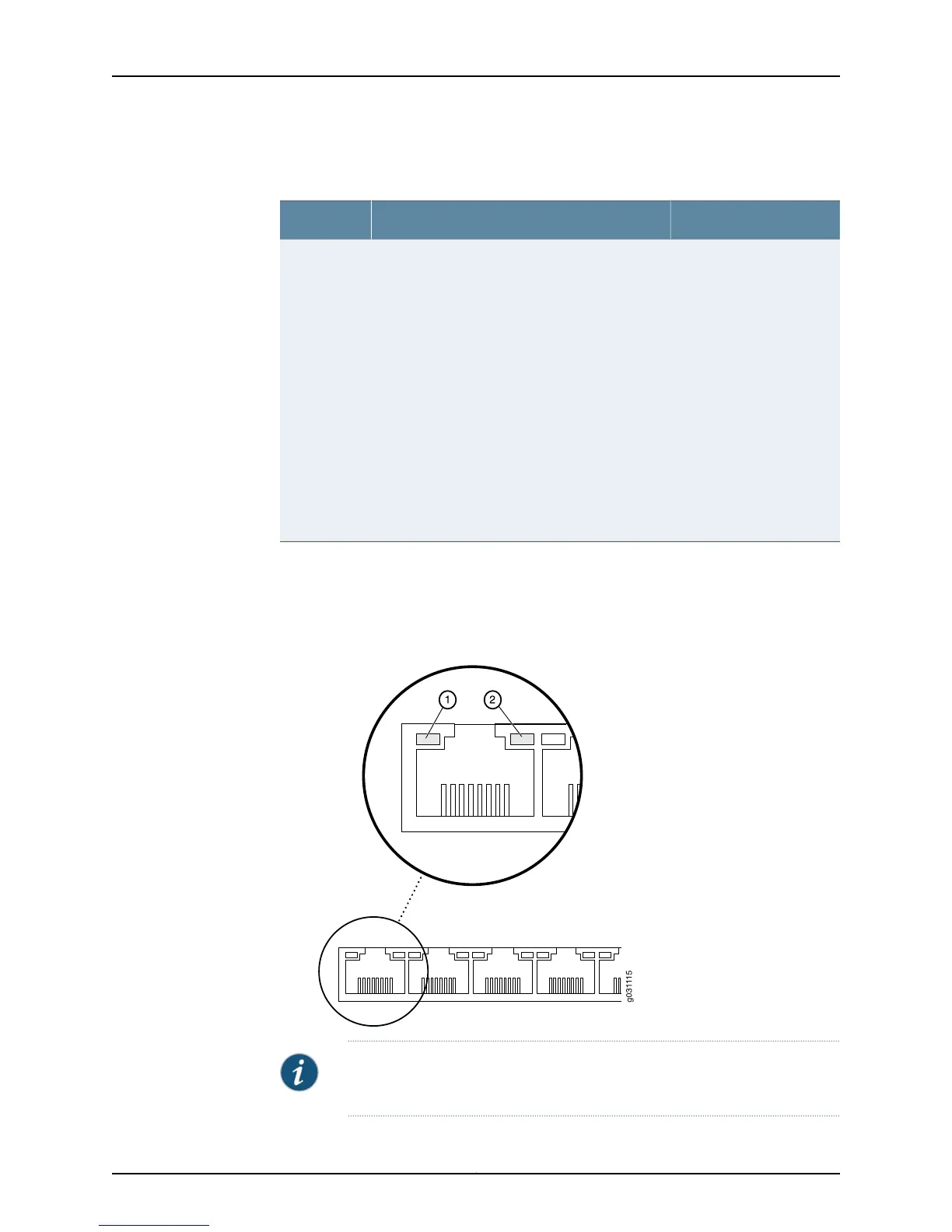

Figure 8: SRX210 Services Gateway Ethernet Port LEDs
NOTE: The numbers in Figure 8 on page 20 correspond to the numbers in
Table 12 on page 21.
